Diamond Mining DTH Hammer Button Bits Water Well Drilling PDC Bits

WUHAN REETEC DIAMOND CO., LTD.
  • Certification:CE, ISO 9001:2008
  • Insert Material:Diamond Button
  • Shape:Spherical,Ballistic,Parabolic,Flat
  • Subtract Material:Tungsten Carbide
  • Characters:High Wear ,High Impact Resistance
  • Application Type:Rock Drilling Tools , Mining Tools, Drilling Rig ,

Base Info

  • Use:Coal Mining, Mining, Oilfield Drilling
  • Machine Type:Drilling Tool
  • Processing Type:Forging
  • Size:Standard and Customize Size
  • HS Code:82071910
  • Production Capacity:250000PCS,Year

Description

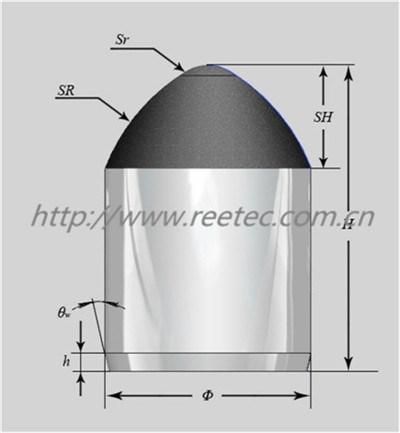

The Diameter, Height, and the Carbide Chamfer Machined to Customer SpecificationsParabolic (Ballistic) PDC Inserts Specification Poduct CodeD(φ)H(H)Dome Height(SH)srSRD30413.0619.86.89123.50D80319.14349.973.9919.4D90422.00239.975.0022.00Diamond Mining DTH Hammer Button Bits Water Well Drilling PDC Bits
Cubic Presses:
Diamond Mining DTH Hammer Button Bits Water Well Drilling PDC Bits
QUALITY CONTROL AND IMPACT TESTING
Inserts are manufactured under strict guideline where all high pressure and high temperature components, raw materials for inserts are regulated. All batches of inserts are checked for the following (Each batch products, we sample 10% to make wear resistance test.)
  1. Dye penetration to check presence of cracks
  2. Thermal stability test
  3. Drop weight test and
  4. Impact Fatigue where inserts are subjected to impact rate of 20 hits per minute using 5 Ton machine
Packaging & Delivery
Packaging Details
Plastic box, 50 pieces/box. Carton outside.
Delivery Time
Within one working week after receiving your payment
