100 M 150 M 200 M Drilling Rig Equipment Machine for Sale
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Video Technical Support, Online Support, Field Ins
- Warranty：1 Year
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：130-203mm
Base Info
- Drill Hole Depth：160m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Type：Crawler
- Name：150meter Depth Factory Price Crawler Water Well Dr
- Drill Diameter：130-203mm
- Drill Depth：160m
- Geology：Rock
- Once Promotion Distance：3000mm
- Drill Pipe：Dia.76mm Dia.89 Dia.102
- Drill Pipe Length：3m
- Rotary Torque：4200-5600 N.M
- Weight：2600kg
- Transport Package：Container
- Specification：2000*1200*1750mm
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Engine model
Yucai
Maximum lifting force(ton)
10-15
Power(kw)
63
Maximum rod length(m)
2.4
Model
HWY160
Air consumption(m3/min)
10-25
Drilling diameter(mm)
0130-0203
Working air pressure(mpa)
1.2-3.0
Drilling depth(m)
150
Drill pipe diameter(mm)
076-089
Walking speed(Km/h)
2.5
Dimensions (L * W * H)(mm)
2000*1200*1750
Gradeability(°)
30
Machine weight(t)
2.6
Rotation speed(r/min)
65-100
Swing torque(N.m)
4500
pneumatic water well drilling rig machine
Advantage :1.Diesel engine use Yuchai diesel engine.
2.Walking device:walking motor with reducer ,long service life.
3.Hydraulic oil pump : parallel type gear box ,Oil pump monomer separation ,enough power supply.
4.Power head unit:gear box cast in one piece,two motor offer power,have big torque
5. chassis:Professional excavator chassis,big weight bearing capacity ,wide chain plate have small injure to road surface.
6.lifting force :Composite arm have small volume ,long stroke.two oil cylinder lifting have big lifting forceThe drilling rig mainly adopts mechanical transmission, the other for the hydraulic transmission, can effectively use the power, reduce the overall power loss, making drilling low cost.the drilling rig adopts advanced structure, reasonable layout, easy to maintain and repair.the drilling rig, in the hydraulic system, reserves part of the functional interface, so the function can be extended according to different user's technical requirements.

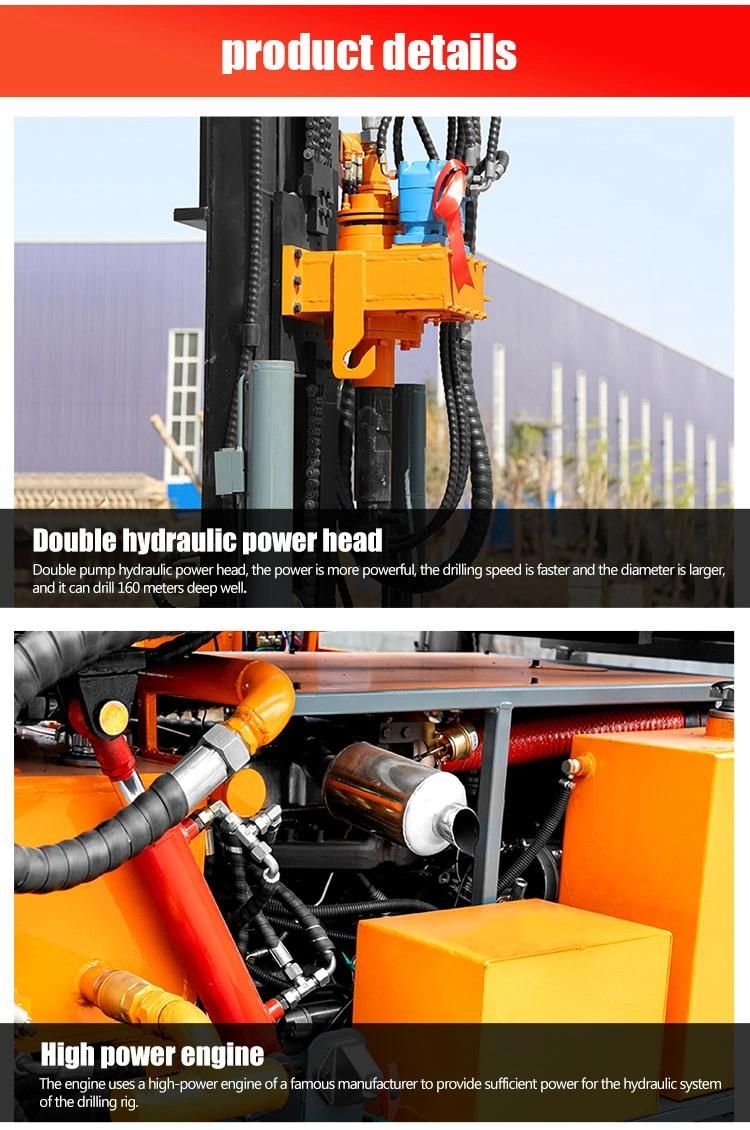

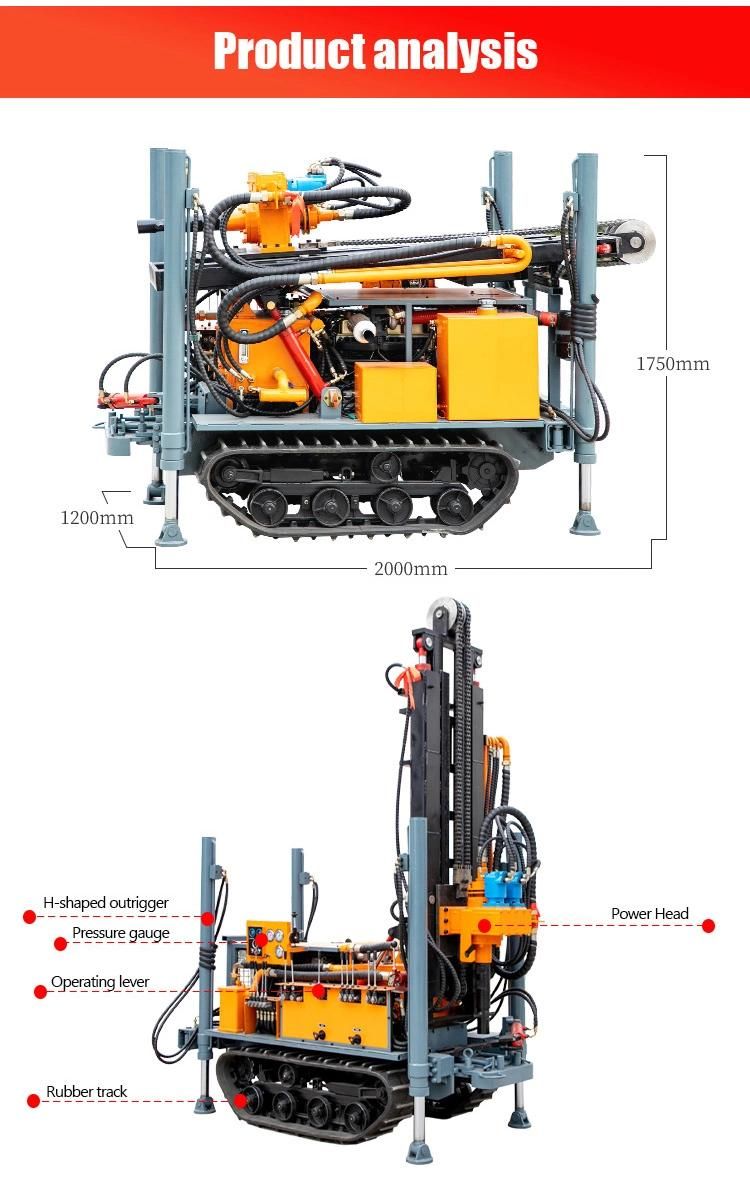

Detail Images

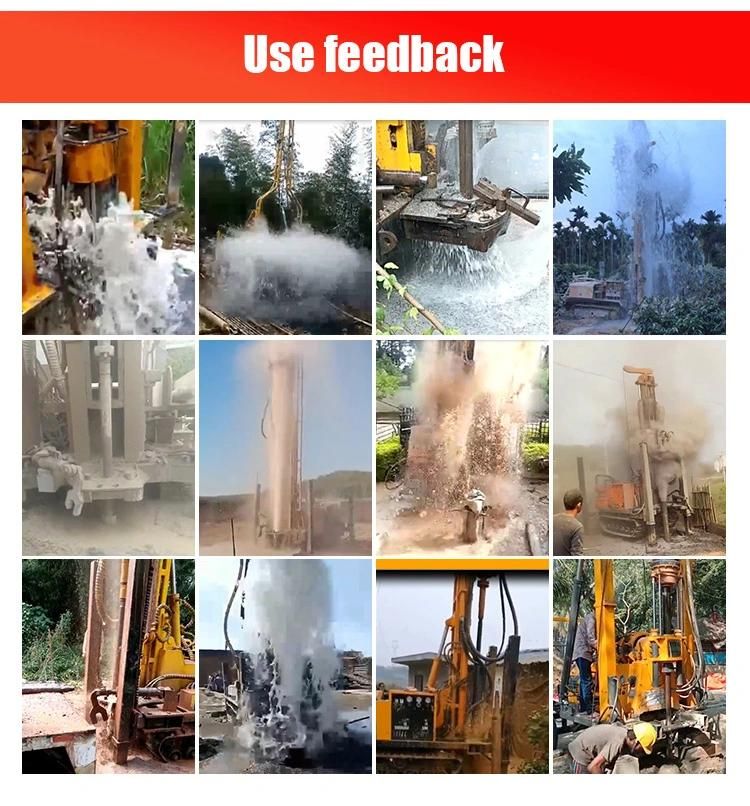

Product Usage
Product Application
Delivery
Pneumatic dth drilling rig delivery
Company Information:
Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
