Hf115y 90-140mm Separated DTH Surface Mine Drill Rig Rock Blast Hole Drilling Rig
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- After-sales Service：Online Support,Field Maintenance
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：90-140mm
Base Info
- Model NO.：Hf115y
- Drill Hole Depth：40m
- Bit Type：DTH Hammer Bit
- Drilling Way：Impactor
- Walk Speed(Km/H)：0-2.5
- for Rock(F)：6-20
- Air Pressure(MPa)：0.7-1.6
- Air Consumption(M³/Min)：7-15
- Once Promotion(mm)：3000
- Rotation Speed(R/Min)：0-120
- Weight(Kg)：5160
- Climb Ability(Degree)：30
- Boom Pitch(Degree)：Left 45,Right 40
- Boom Swing Angle(Degree)：Left and Right Total 70
- Transport Package：40′ Container for 2 Sets, 20′ Container for 1 Set
- Specification：5480*1950*3150mm
- Trademark：HF
- Origin：Zhengzhou City, China
- HS Code：843041
- Production Capacity：30 Sets,Month
Description
Overview
Product Description

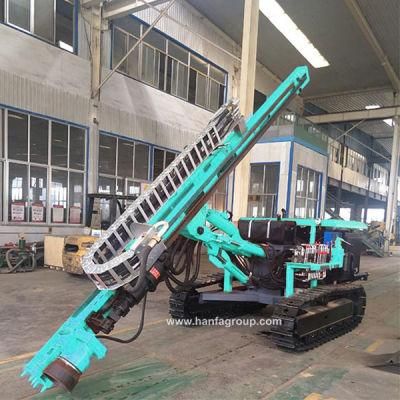

HF115Y crawler hydraulic drilling rig adopts new hydraulic technology, low air consumption, large rotating torque, and convenient hole shifting. The drilling rig has a compact structure, and at the same time the propelling carriage has a telescopic compensation function. The carriage is supported on the ground when drilling, and the drilling stability is good. The HF115Y drilling rig has reliable performance and high drilling efficiency. The drilling speed of the drilling rig on medium-hard rocks is 1~2 times that of the low-pressure drilling rig, which is a favorable guarantee for the construction unit to reduce costs and improve efficiency.
