• Model NO.：GL-III
• Drilling Way：Compound
• Type：Rotary Drilling Rig
• Item：Gl-III Truck Mounted Drilling Rig
• Hole Diameter (mm)：120--1500(mm)
• Hole Depth (M)：350(M)
• Run of Rod (M)：3 4
• Drill Rod Diameter (mm)：73 89 95 133
• Drill Head Inside Diameter (mm)：80 120
• Rig Mass (Kg)：12500(Kg)
• Drilling Technology：Normaland Reverse Circulation for Both Mud and Air
• Down-The-Hole Hammers：Middle-High-Pressure Air
• Drill Head Lifting Force(Kn)：130
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Seaworthy Packing
• Specification：,
• Trademark：GLORYTEK
• Origin：Beijing, China

Basic Info.

Model NO. GL-III Drilling Way Compound Type Rotary Drilling Rig Item Gl-III Truck Mounted Drilling Rig Hole Diameter (mm) 120--1500(mm) Hole Depth (M) 350(M) Run of Rod (M) 34 Drill Rod Diameter (mm) 738995133 Drill Head Inside Diameter (mm) 80120 Rig Mass (Kg) 12500(Kg) Drilling Technology Normaland Reverse Circulation for Both Mud and Air Down-The-Hole Hammers Middle-High-Pressure Air Drill Head Lifting Force(Kn) 130 Usage Water Well Power Type Diesel Transport Package Seaworthy Packing Specification / Trademark GLORYTEK Origin Beijing, China

Product Description

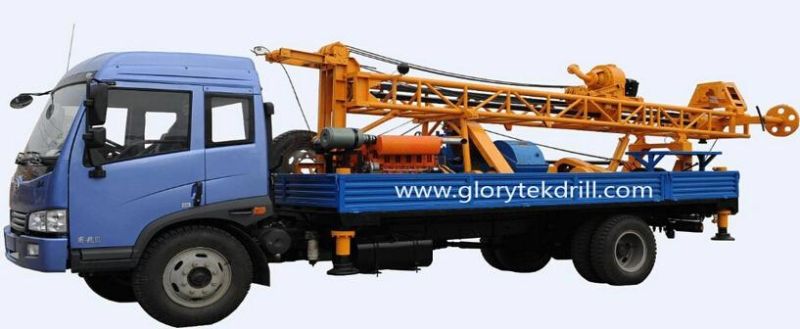

GL-IIA Truck Mounted Drilling Rig



Main Application

  Drilling wells for urban and rural life

  Drilling wells for agricultural irrigation and industries

  Drilling for geotechnical survey

   Drilling construction engineering holes

   Drilling geothermal pump wells

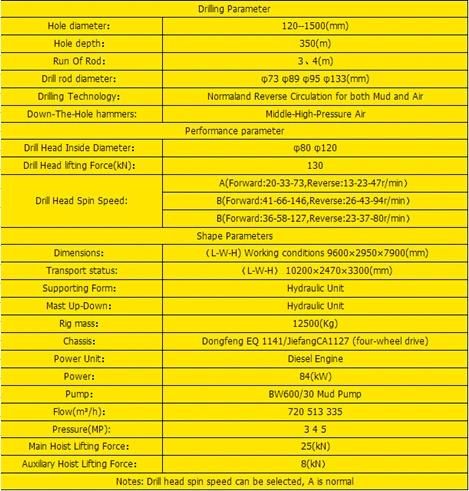

Main Specification
