Photovoltaic Piling Machine for Solar Project

Taian Longye Import and Export Trade Co., Ltd.
  • After-sales Service：Available
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：>300mm

Base Info

  • Model NO.：mz460y-3
  • Drill Hole Depth：250-300m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Drive Pile Length：Max 6m
  • Impact Frequency：450--800bpm
  • Impact Power：1300j
  • Piling Efficiency：200-250 Piles Per Day
  • Once Promotion(mm)：4100
  • Optional Screw Pile：Max 6m
  • Rotary Torque：6500nm
  • Drilling Hole Diameter：90-400mm
  • Hydraulic Pump：USA Permco
  • Hydraulic Valve：Italy Hydro
  • Mast Pitch：95
  • Mast Swinging：40
  • Boom Swing：110
  • Boom Pitch：30
  • Engine Power(Kw)：88
  • Transport Package：40′ HQ
  • Specification：6240*2250*3000mm
  • Trademark：LongYe
  • Origin：Shandong, China
  • HS Code：8430419000

Description

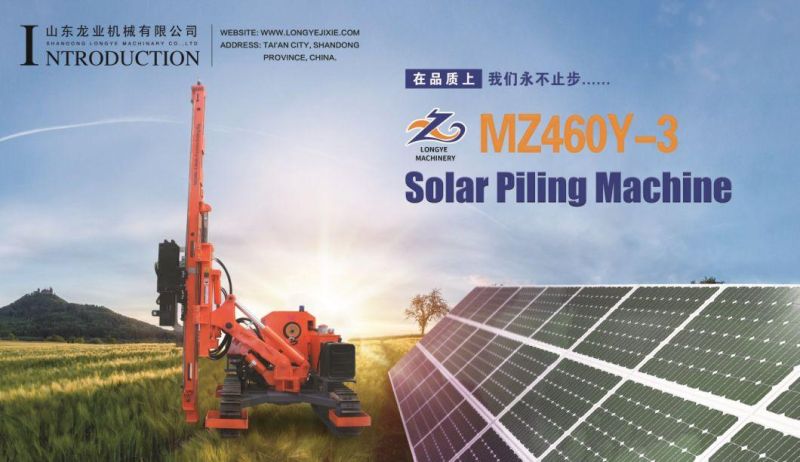

 MZ460Y-3 High Quality Drilling And Ramming Solar Pile Driver  is multifunction for both C,H,..steel post ramming and drilling screw piles, it can :
  • Dive maximum 6m long C,H,O,W,Sigma...solar steel posts using ramming head
  • Use rotary head to drill ground screw piles or to drill DTH rock holes or drill augering holes
  • Working on flat ground or maximum 25 degree slope ground.
Impact frequency(bpm)           450--800
Impact(j)1300
work pressure(bar)130---150
Bore diameter(mm)70~160
Bore depth(m)30
Air consumption(m³/min)8--16
Air pressure(Mpa)0.7-1.6
Once promotion(mm)4100
Maximum ramming length(mm)6000
Skid pitch(°)95
Boom swing angle(°)110
Boom pitch(°)30°
Swinging angle of skid(°)left and right total 40
Host power(KW)88
Climb ability(°)35
Dimension(L*W*H)(mm)6240*2250*3000
Weight(Kg)7350
Walk speed(km/h)0--2.5

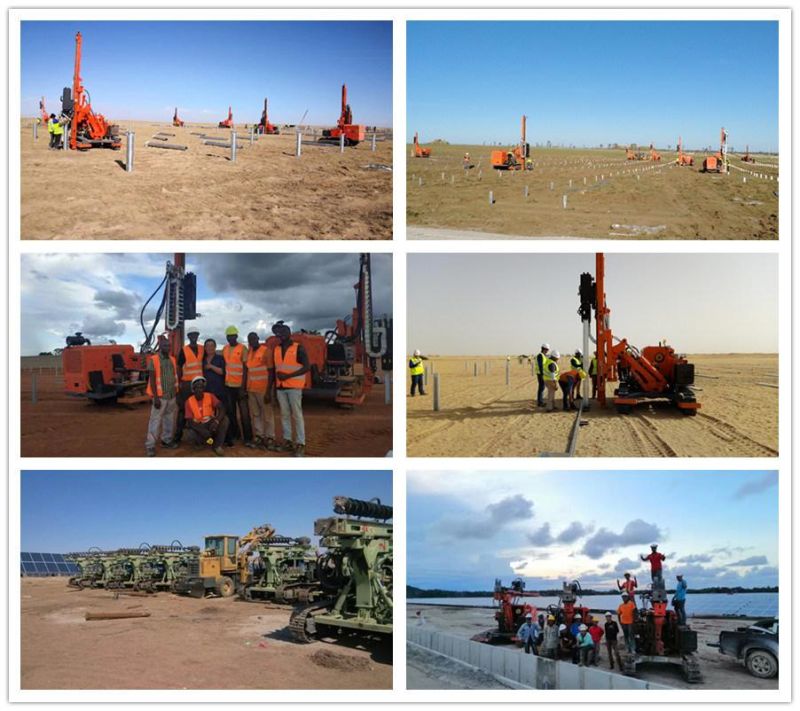

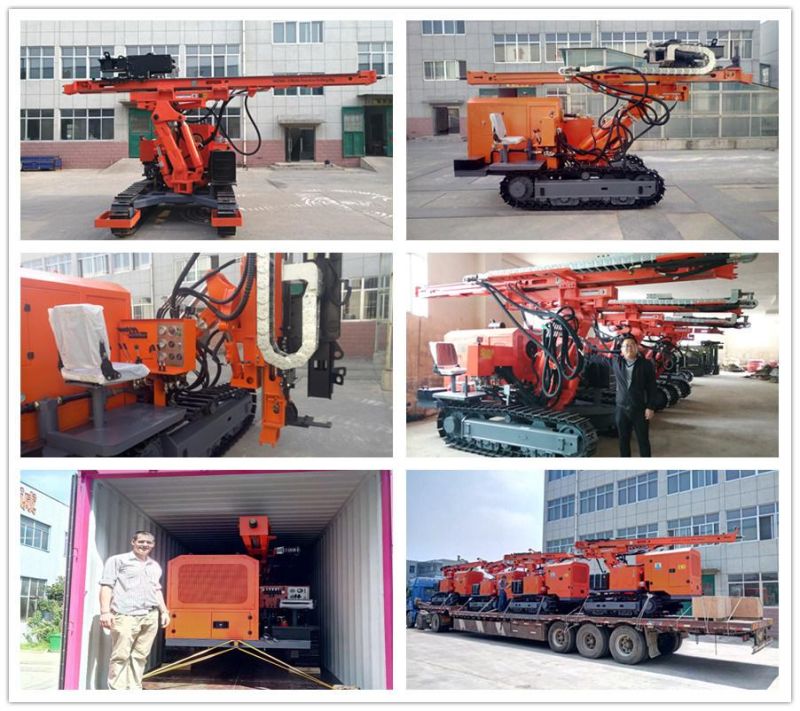

MZ460Y-3 Machine Demo
Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project  Photovoltaic Piling Machine for Solar Project
Photovoltaic Piling Machine for Solar Project Photovoltaic Piling Machine for Solar Project



Remark:

1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.

2. The time of delivery: Deliver the products within 2 days after receiving the total price.

3. The quotation validity date:40 days;  Machine manufacturing time: 5-7 days;

4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 2 sets.

....................................................................................................... .


R F Q



Q1: What's your delivery time?

A: 15 days to produce, within 3 days if in stock.



Q2: What's methods of payments are accepted?

A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.



Q3: What about the shipments and package?

A: 40' container
Machine in nude packing, spare parts in standard export wooden box.



Q4: Have you got any certificate?

A:We have got ISO,CE certificate.



Q5: How to control the quality?

A: We will control the quality by ISO and CE requests.



Q6: Do you have after-sale service and warranty service ?

A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.

Warranty is one year for the machine.



Q7: Can I trust your company ?

 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !

      We are factory manufacturer, and we have our own export license .
