Fully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：Support
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：150-200mm

Base Info

  • Model NO.：HQZ-260L
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Drilling Diameter：110-303mm
  • Working Wind Pressure：1.05-2.46MPa
  • Air Consumption Per Cubic：16-54meter , M
  • Drill Pipe Length Meter：3m
  • Drill Diameter：102 *89 *76mm
  • Push The Shaft Pressure：0 ~ 4.4 Ton
  • Lifting Force：20tons
  • Outlet Cylinder Stroke：1.4
  • Skateboard Travel：4440mm
  • Slow Lifting Speed：4.2m , Min
  • Slow Propulsion Speed：0 ~ 8.9m , Min
  • Fast Lifting Speed：37.8meters , Min
  • Fast Advance Speed：80.4m , Min
  • Rotary Output Torque Bull Rice：5700
  • Walking Speed：0 ~ 2km , H
  • Specification：4.8 * 2 *2.75m
  • Trademark：HW
  • Origin：Shandong

Description

 Model  HQZ260L  HQZ300LTotal Weight(T) 6.4T  8 TDimensions(mm) 4100*1900*2600  5500*1950*2780 Drilling Diameter(mm) 140-300  140-325 Drilling Depth(m) 260   300 One-time Advance Length of the
Drill(mm) 3000   3000/6000 Walking Speed(Km/h) 2.5   2.5   Climbing Ability(max) 30 30 Min.Ground Clearance (mm) 250 250 Working Airpressure(Mpa) 1.7-3.0   1.7-3.3Air Consumption(m³/min) 17-35 23 Main Power(kw) 85kw Yuchai 92kw Yuchai Rotation(rpm) 40-70   55-115 Rotary Torque(Nm) 7000-9000   8500-10000

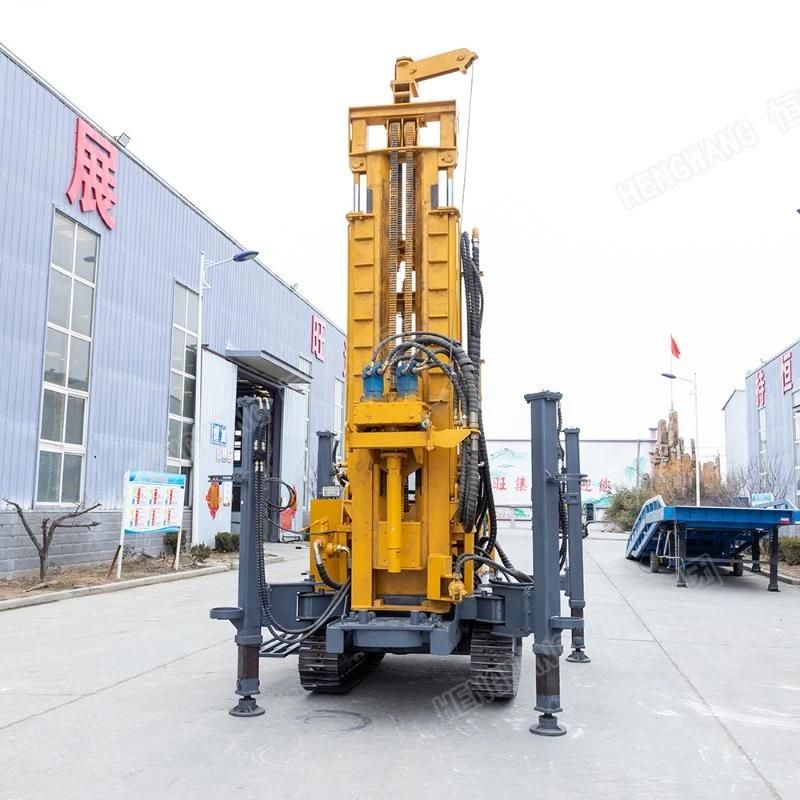

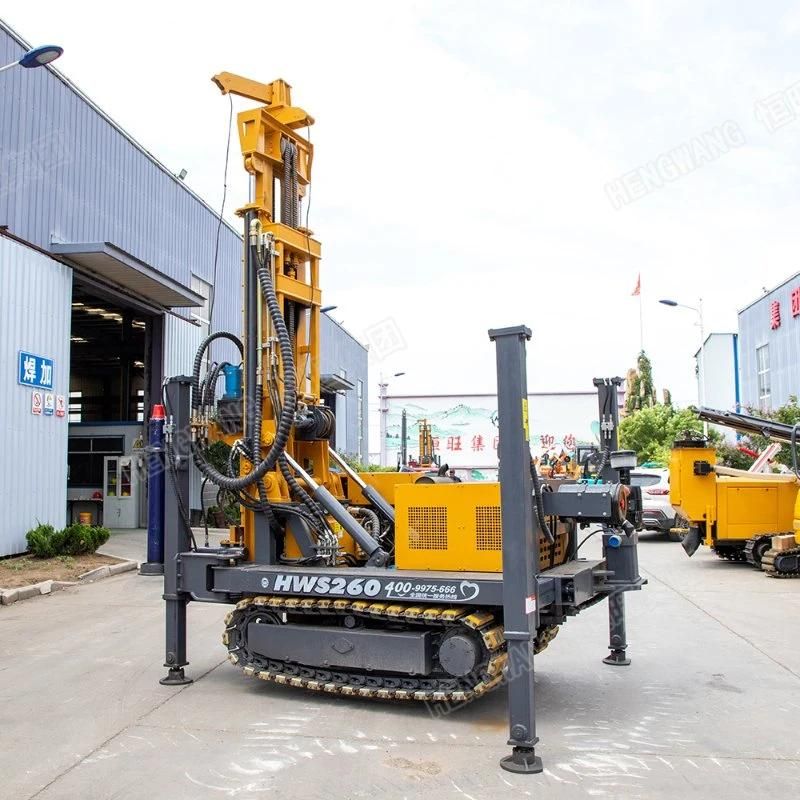

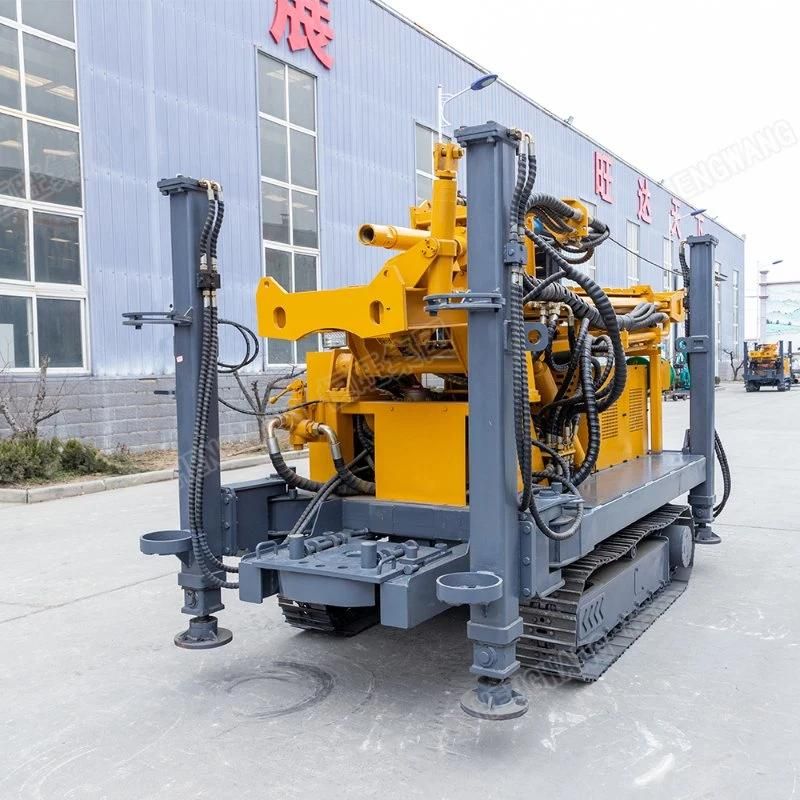

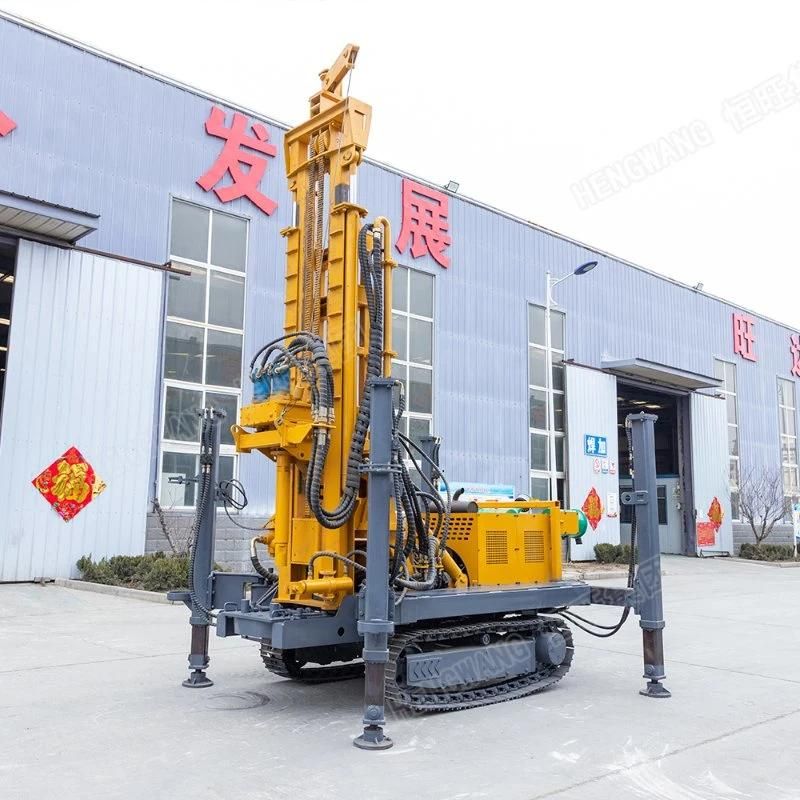

Fully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling RigFully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling RigFully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling RigFully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling RigHQZ series drilling rig has the compact body. The fuselage width only 1.9 meters, fully suitable for farming courtyard home drilling or other narrow condition drilling. Drilling depth up to 240-300 meters.
Fully hydraulic control is convenient and flexible: can adjust the drilling speed, torque, and promote axial pressure, anti-axial pressure, propel and improve the speed to meet the different conditions use of drilling tools and different construction needs.
Our company for Air compressor for Rock drilling machine high speed drilling rig with air compressor
Fully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling Rig



Fully Hydraulic Control 260m Depth Rock Drilling Machine / Air DTH Water Well Bore Hole Drilling Rig

FAQ

Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories
broken can be changed for a new one. And we provide videos for machine install and operation.m Pn
