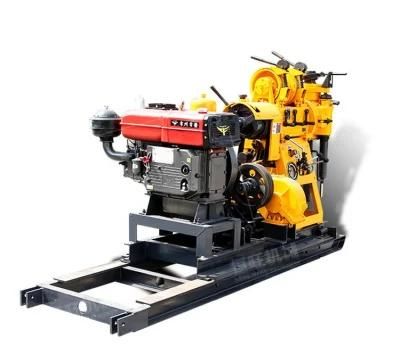

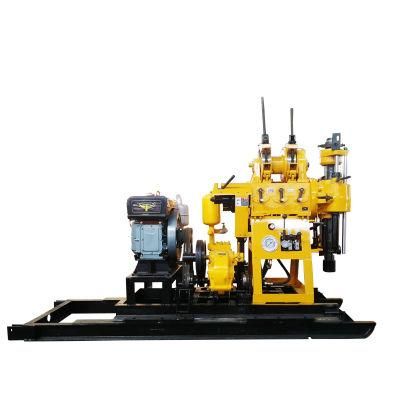

Drilling Machine Water Drilling Rig Small Size
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：200-250mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW-160
- Drilling Way：Rotary
- Type：Water Well Drilling Rig

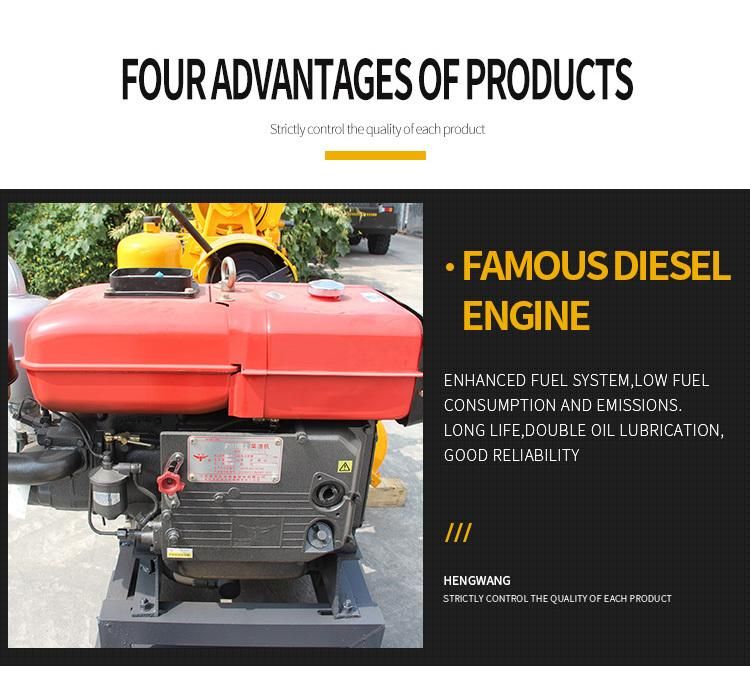

- Power：Diesel or Electric
- Transport Package：Wood Case
- Specification：2.4*0.8*1.3m
- Trademark：HW
- Origin：China
- HS Code：8430412100
- Production Capacity：100PCS,Month
Description
Machine SpecificationModel
YY type configuration moving slipway HW-160/160YY HW-190/190YY HW-230/230YY Drilling Depth(m) 160 190 230 Open Hole Dia. (mm) Soil/Rock 500 / 220 500 / 220 500 / 273 End Hole Dia. (mm) 75 75 75 Drill Rod Dia. (mm) 42 / 50 42 / 50 42 / 50 / 60 Drill Angle(°) 90-75 90-75 90-75 Matching Engine Power(KW) 13.2 13.2 15 Weight without Engine(Kg) 600/740 620/750 880/970 Machine Dimension L*W*H(m) 2.4*0.8*1.3 2.4*0.8*1.4 2.7*0.9*1.5 Spindle Speed(r/min) 142/285/570 130/300/480/730/830/1045 64/128/287/557 Stroke(mm) 450 450 450 Winch Single Rope Lift Force(Kg) 2000 2100 2500 Single Rope Lift Speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95 Rope Dia. (mm) 9.3 9.3 12.5 Rope Capacity(m) 27 27 35 Drill Mast Rated Load(Ton) 18 18 18 Effective Height(m) 6.5 6.5 6.5 Mud Pump Flow(L/min) 95 95 145 Max. Pressure(MPa) 1.2 1.2 2 Back and Forth Times/min 93 93 93 Inlet Hose Dia. (mm) 51 51 51 Outlet Hose Dia. (mm) 32 32 32
Company Introduction
YY type configuration moving slipway
