• Model NO.：SLY510
• Bit Type：DTH,Mud
• Drilling Way：Rotary

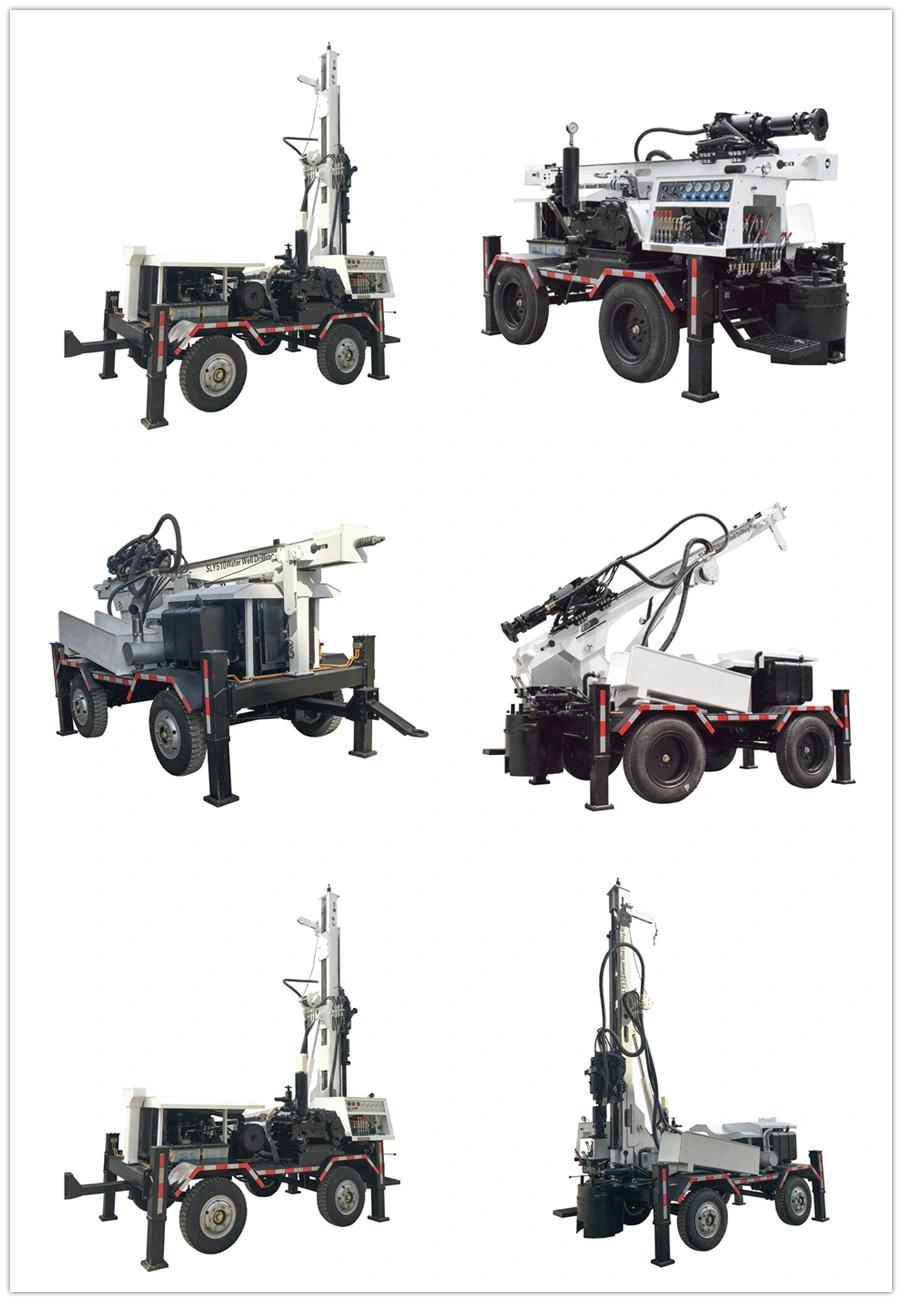

• Type：Four-Wheel trailer
• Mud Pump：Hydraulic Power
• Specification：5425*2250*2470mm
• Trademark：LongYe
• Origin：Shandong, China
• HS Code：8430419000
• Production Capacity：30 Sets,M

Basic Info.

Model NO. SLY510 Bit Type DTH/Mud Drilling Way Rotary Type Four-Wheel trailer Mud Pump Hydraulic Power Specification 5425*2250*2470mm Trademark LongYe Origin Shandong, China HS Code 8430419000 Production Capacity 30 Sets/M

Product Description

 Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling

rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill

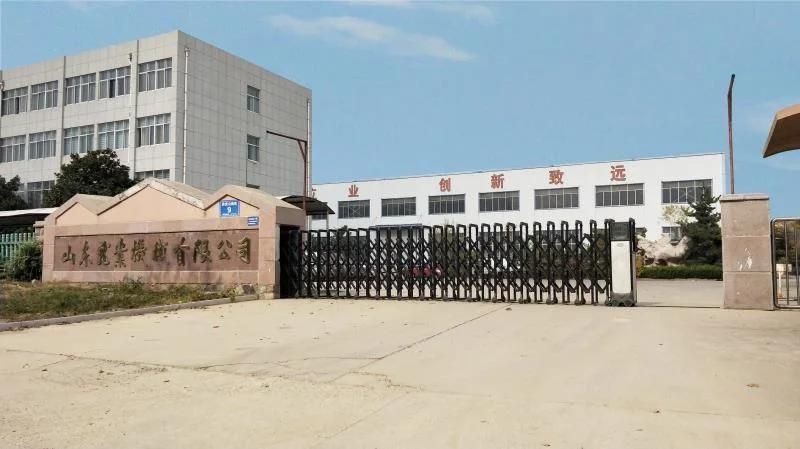

hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of

Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai

High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our

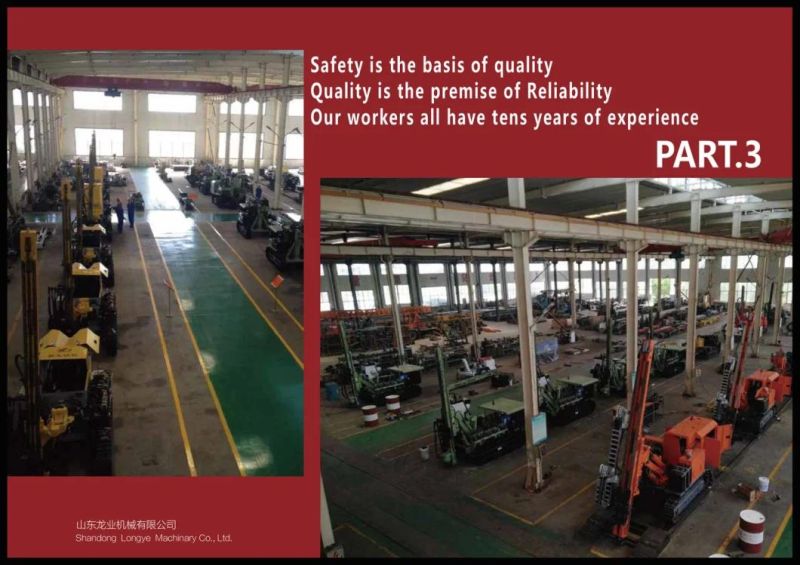

company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering

technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of

advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has

our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced

production equipment and more than 10 years of experience, our company has developed and produced three

series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well

throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60

countries...

Main technical parameters

Drilling hole diameter	Φ115---φ300mm
Drilling hole depth	260m
Mud pump (optional)	BW450/5
Mud pump pressure	2.0---5.0 MPa
Mud pump capacity	172---450L/min
Air consumption (DTH hammer)	16---30 m³/min
Air pressure (DTH hammer)	1.05---3.0 MPa
Once promotion	2000mm
Skid pitch	90°
Rotation speed	0---100 r/min
Maximum rotation torque	3900 Nm
Maximum lift power	6.5 T
Walk speed	40 km/h
Host power	56 Kw
Dimensions (L*W*H)	5425*2250*2470 mm
Total weight	6000 kg

R F Q:

1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.

2. The time of delivery: Deliver the products within 2 days after receiving the total price.

3. The quotation validity date:40 days;  Machine manufacturing time: 30 days;
