• Model NO.：MZ385Y
• Drilling Way：Rotary
• Screw Pile Length：0-4m
• Screwing Power：6500nm
• Pile/Drill Diameter：90-400mm
• Work Efficiency：200-450 Hole, Day
• Engine：88kw
• Transport Package：20′ Container
• Specification：5300*1950*2580mm
• Trademark：LongYe
• Origin：Shandong
• HS Code：8430419000

Basic Info.

Model NO. MZ385Y Drilling Way Rotary Screw Pile Length 0-4m Screwing Power 6500nm Pile/Drill Diameter 90-400mm Work Efficiency 200-450 Hole/ Day Engine 88kw Transport Package 20′ Container Specification 5300*1950*2580mm Trademark LongYe Origin Shandong HS Code 8430419000

Product Description

We are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we

exported to over 60 countries !

  Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling

rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill

hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of

Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai

High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our

company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering

technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of

advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has

our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced

production equipment and more than 10 years of experience, our company has developed and produced three

series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well

throughout China, Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60

countries...
 Technical parameters

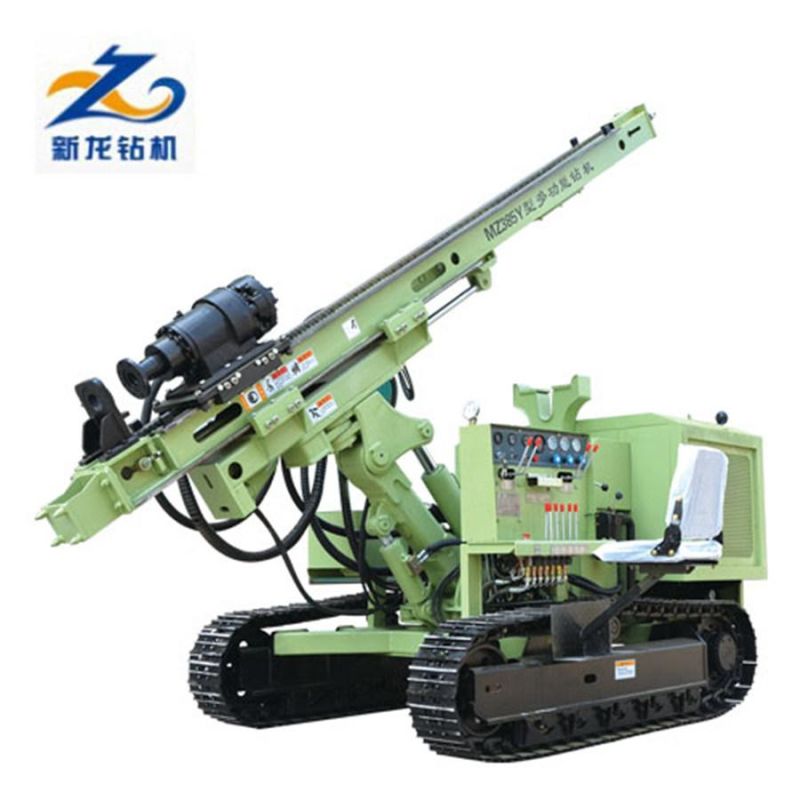

      MZ385Y ground screw drilling machine can :

• Drill maximum 3.7m long ground screw piles.
• Drill 130-400mm diameter auger spiral soil holes.
• Drill 90-350mm diameter DTH stone rocky ground holes .
• Working on flat ground or maximum 25 degree slope ground

Bore diameter(DTH hammer)(mm)	90-300
Bore depth(m)	20-100
Air consumption(m³/min)	10-26
Air pressure(Mpa)	0.7-1.6(medium);1.6-2.46(high)
Pipe diameter(mm)	76/89
For rock(F)	6-20
Bore diameter(screw)(mm)	Max 400
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Once promotion(mm)	3200
Skid pitch(°)	120
Swinging angle of skid(°)	Left and right total 40
Boom swing angle(°)	Left and right total 50
Rotation speed(r/min)	0-110
Host power(kw)	84
Climb ability(°)	35
Dimension(L*W*H)(mm)	5300*1950*2580
Weight(kg)	5800
Walk speed(km/h)	0-2.5




...................................
R F Q:

1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.

2. The time of delivery: Deliver the products within 2 days after receiving the total price.

3. The quotation validity date:40 days;  Machine manufacturing time: 5-7 days;

4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 3 sets.

...............................................................................................
