• Model NO.：XY-1
• Initial Hole Dia：150mm
• Final Hole Dia：75,46mm
• Drill Rod Dia：42,43mm
• Angle Range：75-90
• Dimensions：1620*970*1560(mm)
• Weight：620kg
• Migration Distance：350mm
• Spindle Speed(5-Speed)：1010,790,470,295,140r,Min
• Transport Package：Standard Export Packing
• Specification：SGS
• Trademark：GLORYTEK
• Origin：China
• Production Capacity：3000 Sets Per Mouth

Technical SpecificationsDrill Drilling depth 100mDrill rod dia. 42mmInitial hole dia. 110mmFinal hole dia. 75mmAngle range 90°-75°Dimensions(L×W×H)1640×1030×1440 (mm)Weight(without power unit) 500kgSwivel Head Spindle speed(3-speed) 142/285/570 r/minSpindle stroke 450mmupward displacement speed of idling vertical spindle 0.05m/sDownward displacement speed of idling vertical spindle 0.067m/sSpindle pull-down max 15KNSpindle lifting capacity max 25KNHoist Max .lifting capacity(1-speed,single rope) 10KNCable volume (number) of hoisting drum 27mWire rope dia. 9.3mmMud Pump Model Horizontal reciprocating single-acting piston pumpDisplacement max Equipped with diesel engine 95L/minEquipped with motor 77L/mmAllowable working pressure max 1.2MpaContinuous working pressure 0.7MpaSuction pipe dia 32mmDischarge pipe dia 25mm

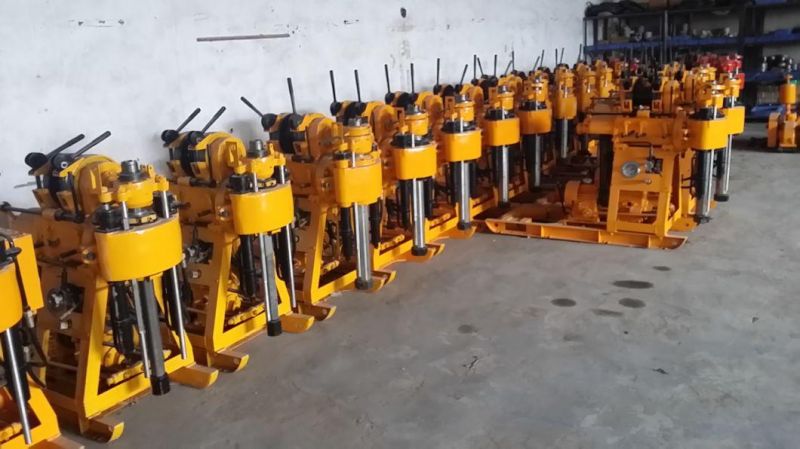

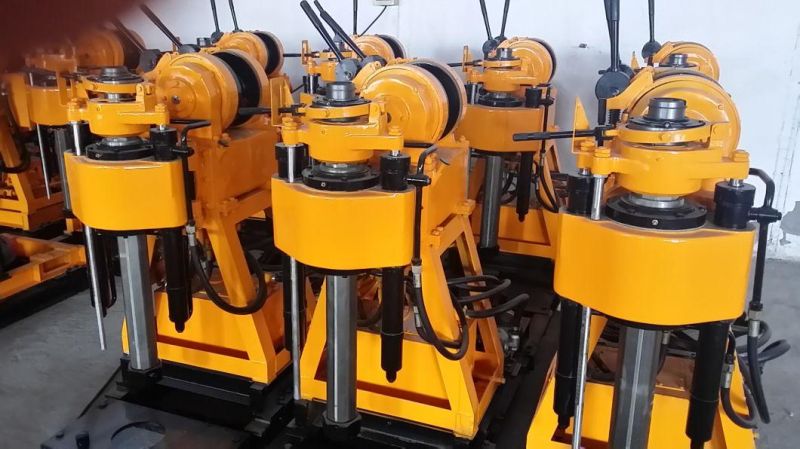

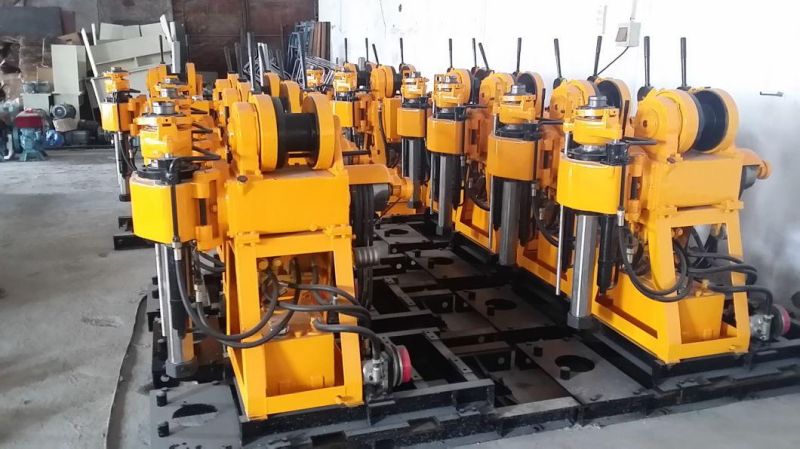

Pictures






Advantages:
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

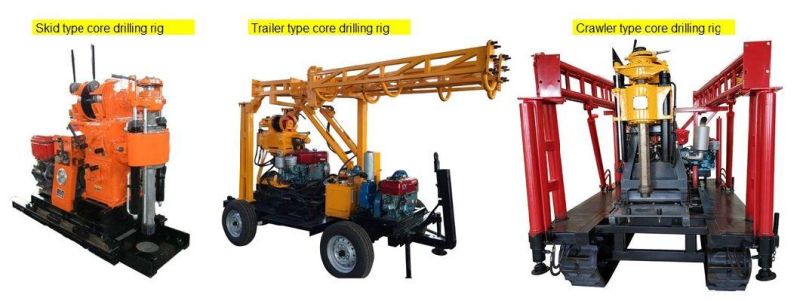

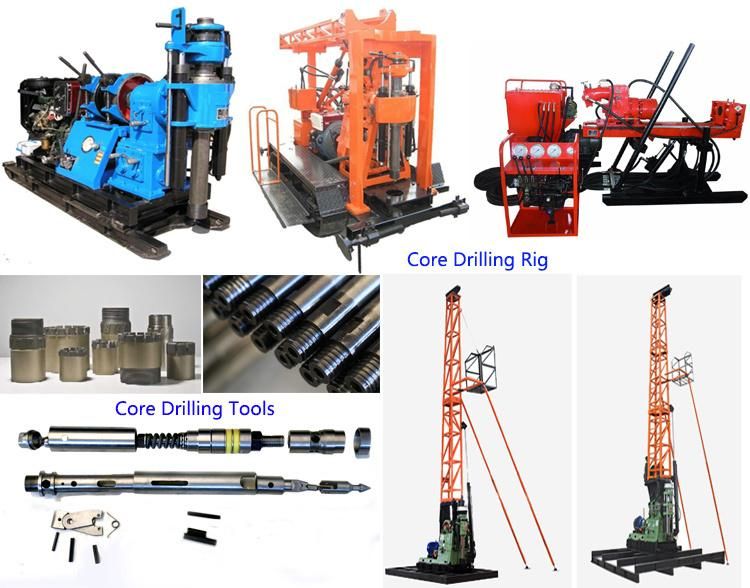

Related Products

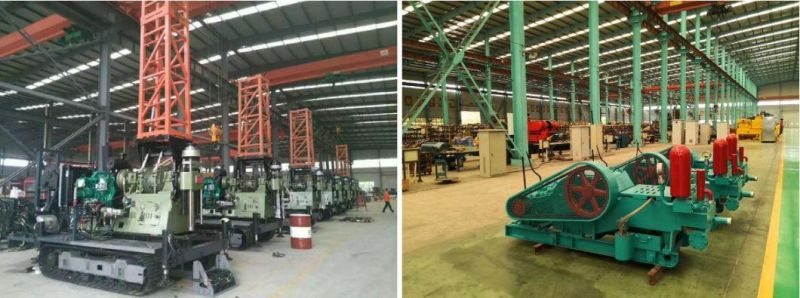

Company Profile




Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.





Customer Photos




Certifications

Latest Exhibition



After-sale Warranty

Warranty of Core Drilling Rig:
(1)Within the period of the first year after delivery, the main parts of GL- IIA Trailer Mounted Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
