Engine Power 191 Kw DTH Surface Drill Rig with Automatic Drill Pipe Handling System

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：110-138 mm

Base Info

  • Model NO.：20m
  • Drill Hole Depth：<100m
  • Bit Type：Hammer Bit
  • Drilling Way：Impactor
  • Product Name：Hard Rock DTH Surface Drill Rig
  • Hole Range：90-115 mm
  • Drill Pipe Storage：7+1
  • Drill Pipe Diameter：Dia 68 X 3,000 mm
  • DTH Hammer：3.5"
  • Rotation Torque ( Max.)：2,500 N.M
  • F.a.D：16 M3,Min
  • Working Pressure ( Max.)：15 Bar
  • Pull up Force ( Max.)：20 Kn
  • Gradient：30 Degree
  • Total Weight：9,310 Kg
  • Engine：191 Kw
  • Tramming Speed ( Max.)：3 Km,H (High Speed) 2 Km,H (Low Speed)
  • Transportation Dimensions：7,550X2,500X3,060 mm
  • Transport Package：20gp
  • Specification：7, 550X2, 500X3, 060 mm
  • Trademark：Hengwang
  • Origin：Shandong
  • HS Code：8428909090
  • Production Capacity：1000PCS ,Month

Description

Overview Product Description
  • Product Parameters



    air compressor built-in surface DTH mine drilling rig for quarryModelHW452Machine Weight10000kgEngineYuchai YC6A260L191 kWDrill Pipe Sizes76 X 3,000 mmHole Dia90-138 mmWorking Pressure17 barF.A.D16 m3/minTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions7,550X2,500X3,060 mmDetailed PhotosPackaging & Shipping

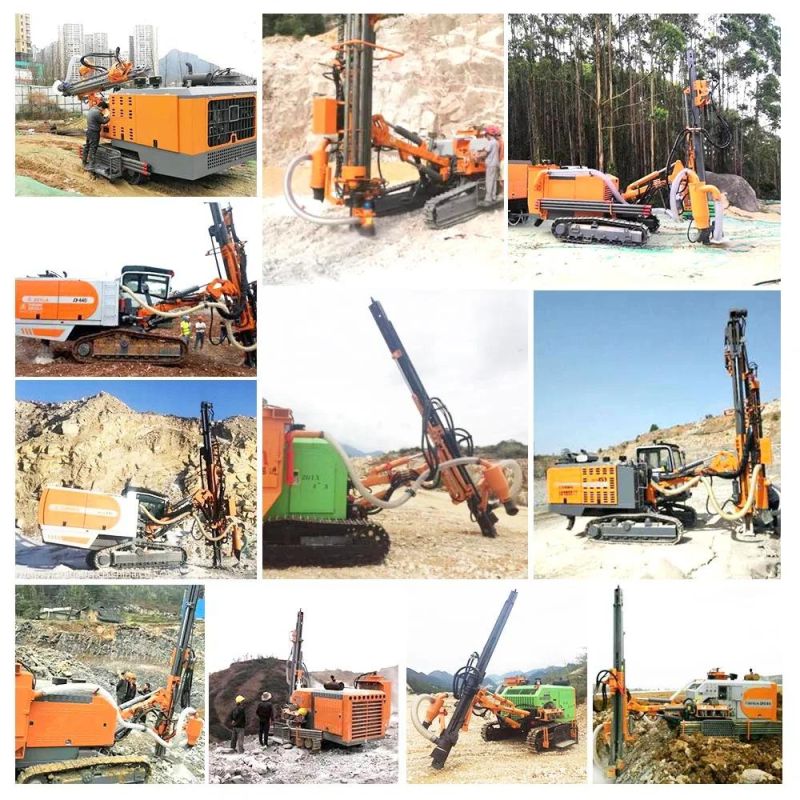

    Engine Power 191 Kw DTH Surface Drill Rig with Automatic Drill Pipe Handling SystemCustomer Feedback

    Engine Power 191 Kw DTH Surface Drill Rig with Automatic Drill Pipe Handling System
    Certifications

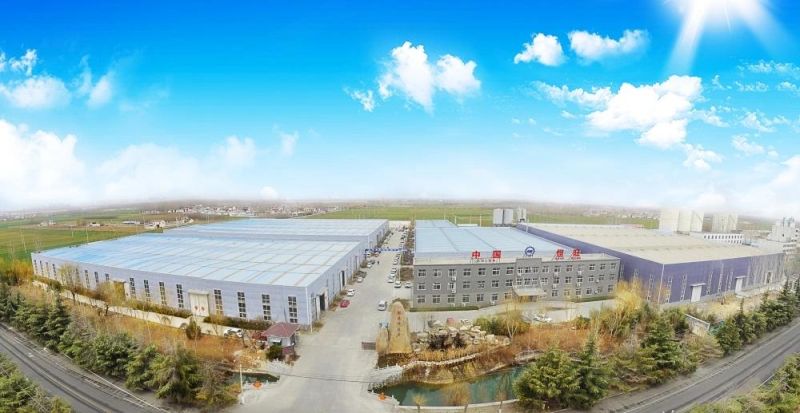

    Company Profile

    Shandong Hengwang Group Co.,Ltd. is the professional manufacturer of various drilling rig. With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.

    Engine Power 191 Kw DTH Surface Drill Rig with Automatic Drill Pipe Handling System
    FAQ

    Q1. Are you manufacturer or trader?
    A: We are manufacturer of construction machines. Actually, we produce most of the parts in our own factory for better
    cost and quality control.Shandong Haitui is the exporting center of all Haitui brand machines.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% against copy of B/L.

    Q3. How about your delivery time?
    A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order. Sometimes we have some in stock.

    Q4. Are you interested in dealership with local company?
    A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World
    machines in local market and supply better service.

    Q5. What is your warranty policy?
    A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty.
    We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

    Q6. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
