• Model NO.：JK-DR500
• Drilling Way：Rotary
• Type：Crawler
• Product Name：Water Well Drilling Rig
• Engine：Disel Engine
• Color：Custmized
• Usage：Water Well
• Elevating Capacity：26000kg
• Bore Diameter：140-350mm
• Drilling Depth：500m
• Weight：11500kg
• Feature：High Drilling Efficiency
• Brand：Sdjk

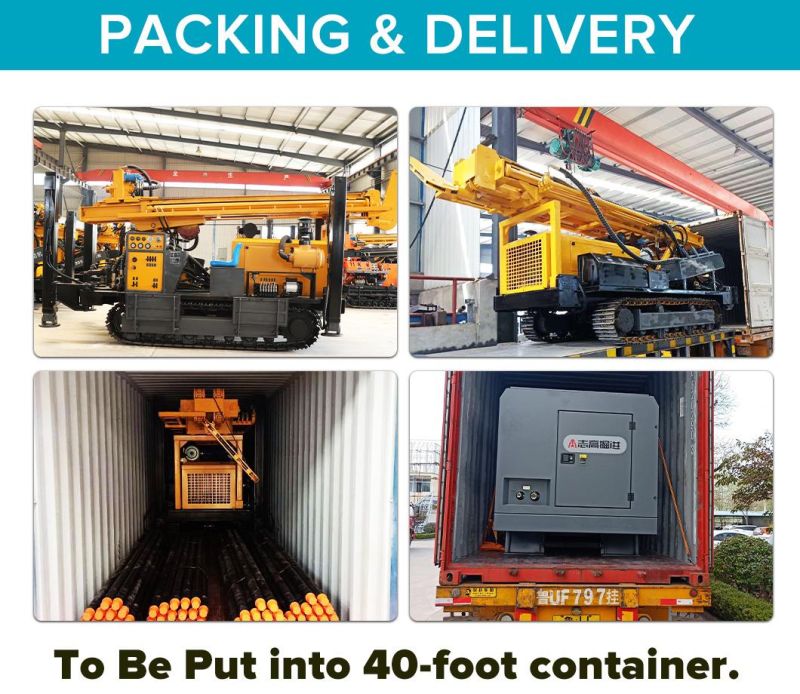

• Transport Package：Comply with Export Packaging Requirements
• Specification：6000x2200x2950mm
• Trademark：SDJK
• Origin：Shandong
• Production Capacity：50units,Month

Basic Info.

Model NO. JK-DR500 Drilling Way Rotary Type Crawler Product Name Water Well Drilling Rig Engine Disel Engine Color Custmized Usage Water Well Elevating Capacity 26000kg Bore Diameter 140-350mm Drilling Depth 500m Weight 11500kg Feature High Drilling Efficiency Brand Sdjk Transport Package Comply with Export Packaging Requirements Specification 6000x2200x2950mm Trademark SDJK Origin Shandong Production Capacity 50units/Month

Product Description

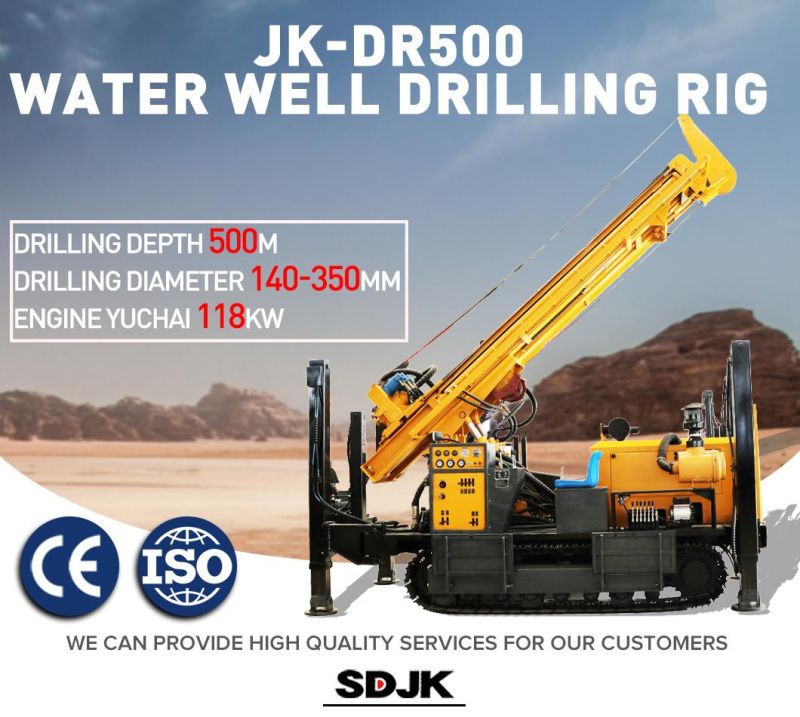

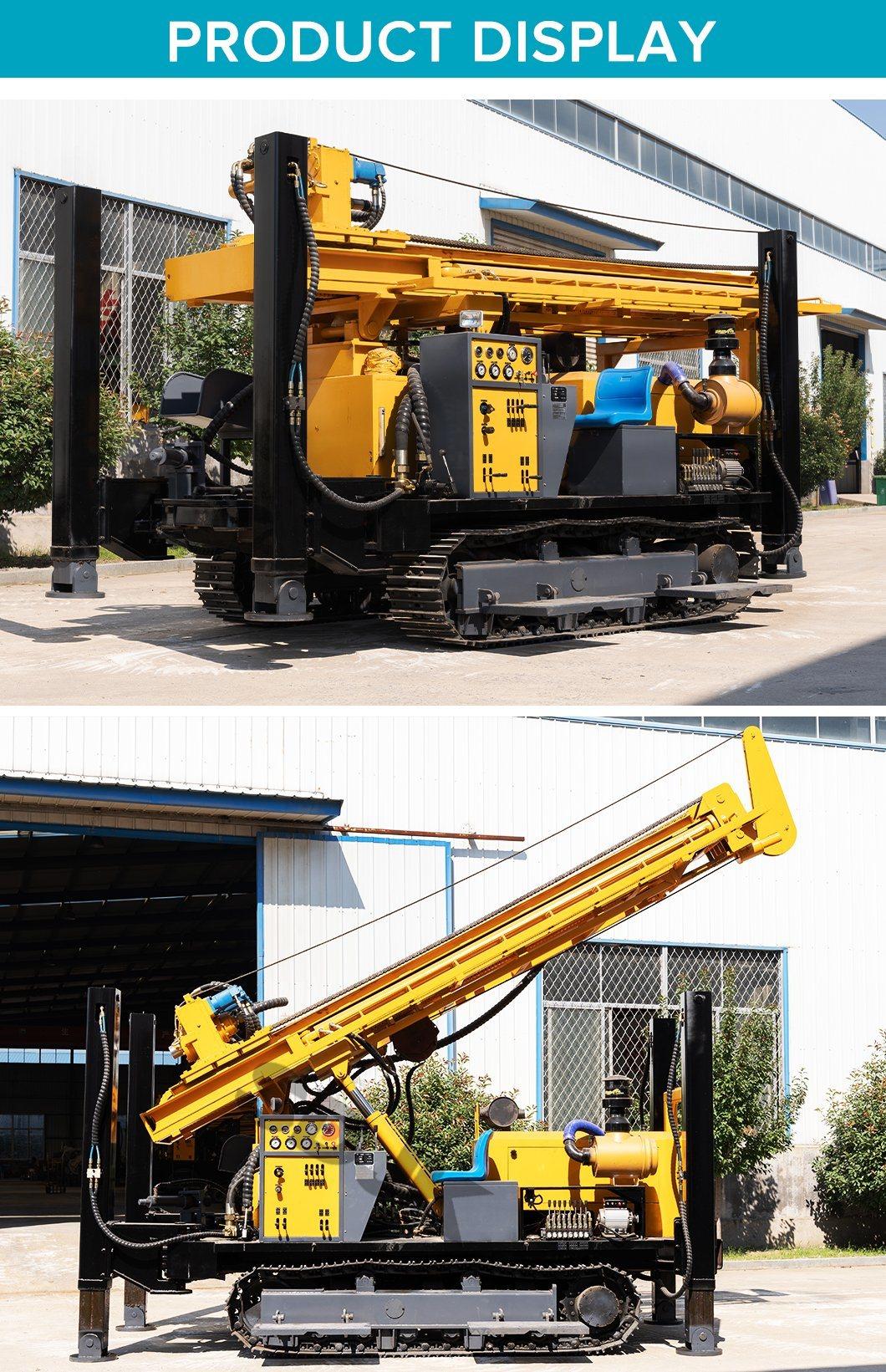

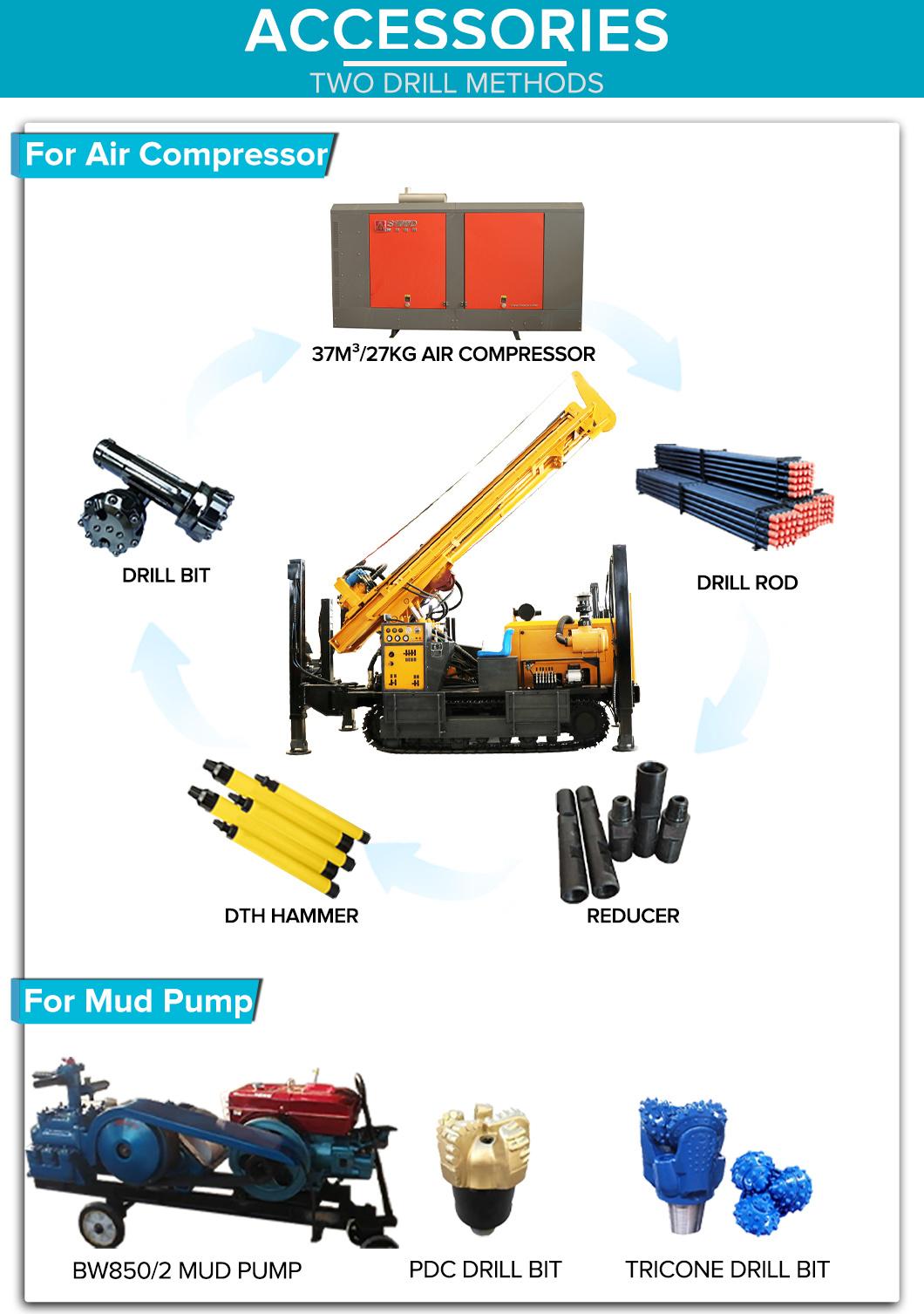

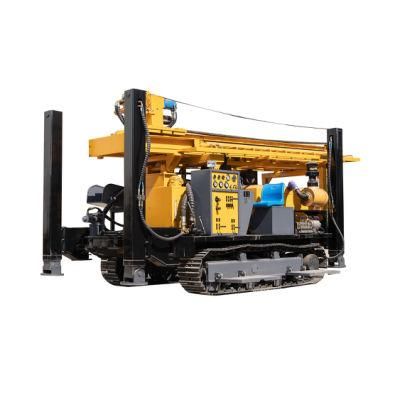

The JK-DR500 DTH drilling rig with AC(Air Compressor) method is capable of drilling upto 219mm diameter holes for pore-forming purposes to a depth of 500 meters.

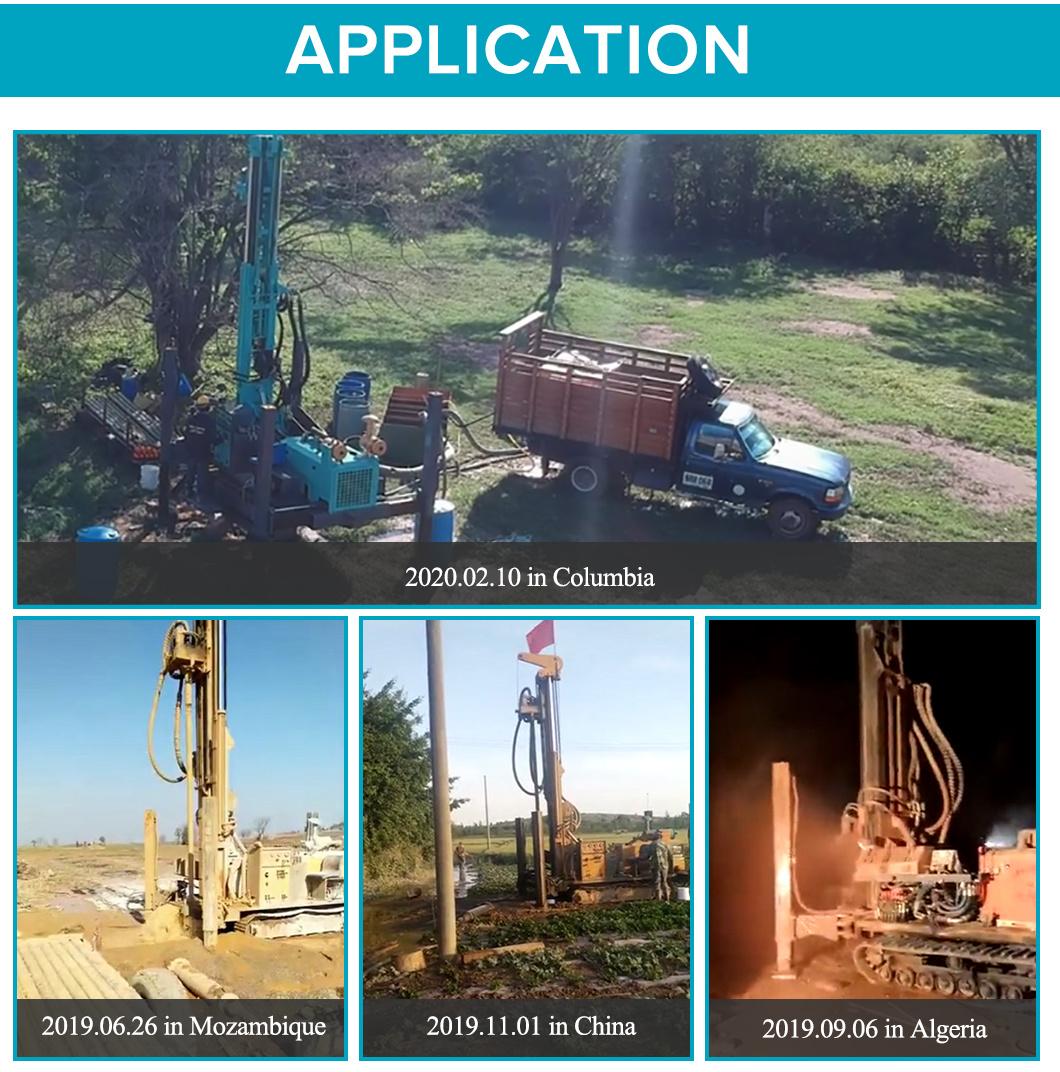

JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.

Model & Name	JK-DR500	Rated pressure	1.7-3.5 MPa
Weight	11.5Ton	Air consumption	17-42 m³/min
Bore diameter	140-350mm	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Drilling depth	500m	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Engine Model	YUCHAI	Elevating capacity	26Ton

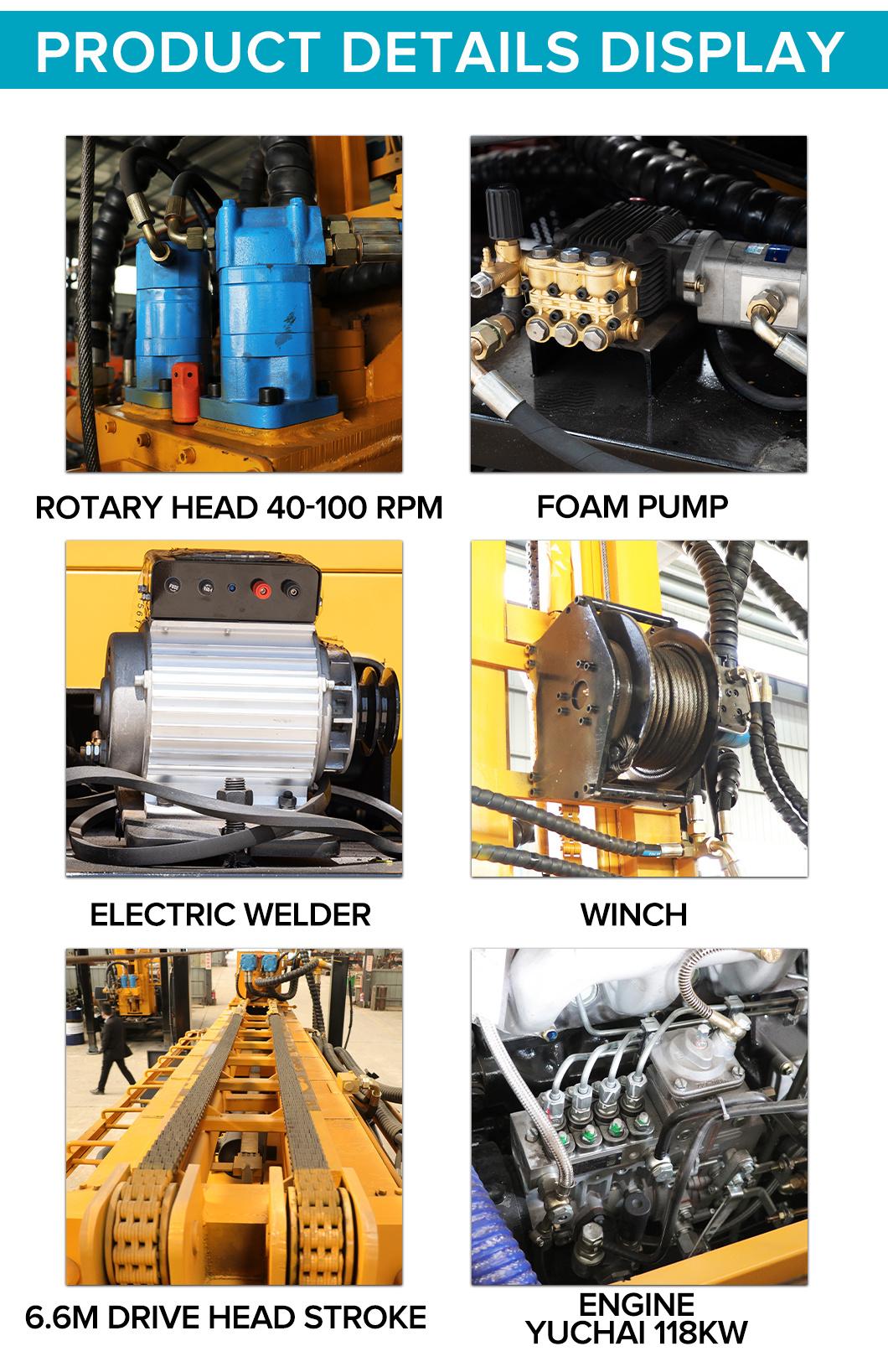

Rated Power	118 kW	Swing speed	40-100rpm
Stroke	6.6m	Swing torque	7500-10000N.m
Travelling speed	2.5km/h	Dimensions	6000*2200*2950mm
Gradeability	30%
