Fy180 Crawler Pneumatic 180m Water Well Drilling Rig

Cruking Engineering Equipment (Xiamen) Co., Ltd.
  • After-sales Service：Spare Parts
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm

Base Info

  • Model NO.：FY-180
  • Drill Hole Depth：100-150m
  • Bit Type：Drag Bit
  • Drilling Way：Compound
  • Type：Crawler
  • Rated Power：55kw
  • Operating Weight：4.5t
  • The Hole Diameter：140-254mm
  • Drilling Depth：180m
  • Taeling Speed of Power Head：0-22m,Min
  • One Time Advance Length：3.3m
  • Drill Pipe Diameter：76 ,89mm
  • Rig Lifting Force：12t
  • Dimensions(mm)：3800*1500*2200mm
  • Transport Package：Roro
  • Specification：3800*1500*2200mm
  • Trademark：Top Brand
  • Origin：China
  • HS Code：8430691900
  • Production Capacity：1000units,Moth

Description

Contact WayProduct Overview
ModelFY180
Operating weight (T)4.5
The hole diameter (mm)140-254
Drilling depth (m)180
One time advance length (m)3.3
Walking speed (km/h)2.5
Climbing angels (Max.)30
Rated power (kw)55
Working pressure (mpa)1.7-2.5
Air consumption (m3/min)17-31
Drill pipe diameter (mm)76 /89
Drilling pipe length (m)1.5/2.0/3.0
Rig lifting force (t)12
Swing speed (rpm)45-65
Swing torque (N.m)3200-4600
Dimensions (mm)3800*1500*2200

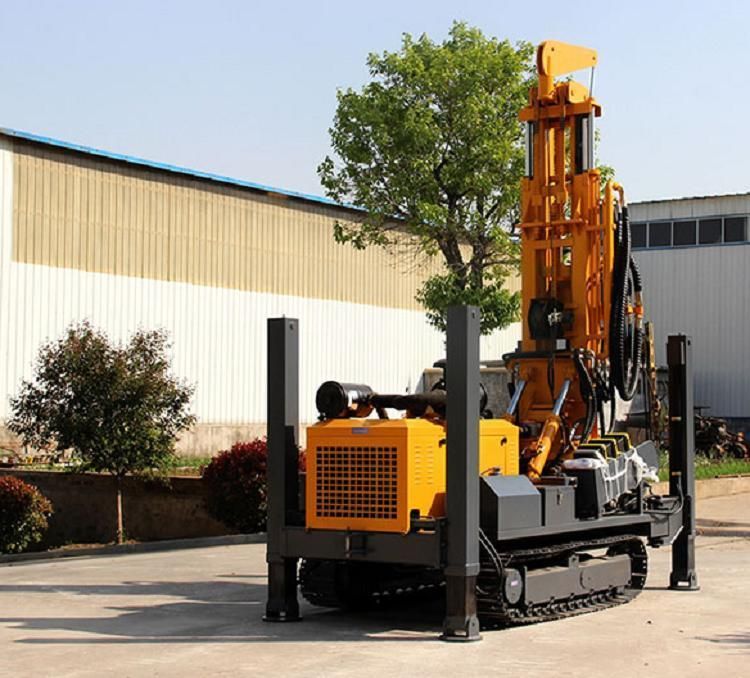

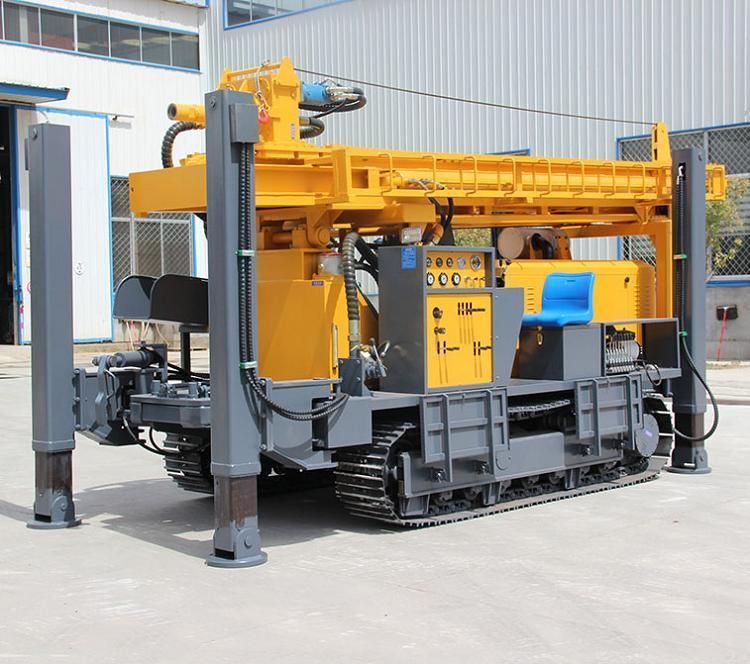

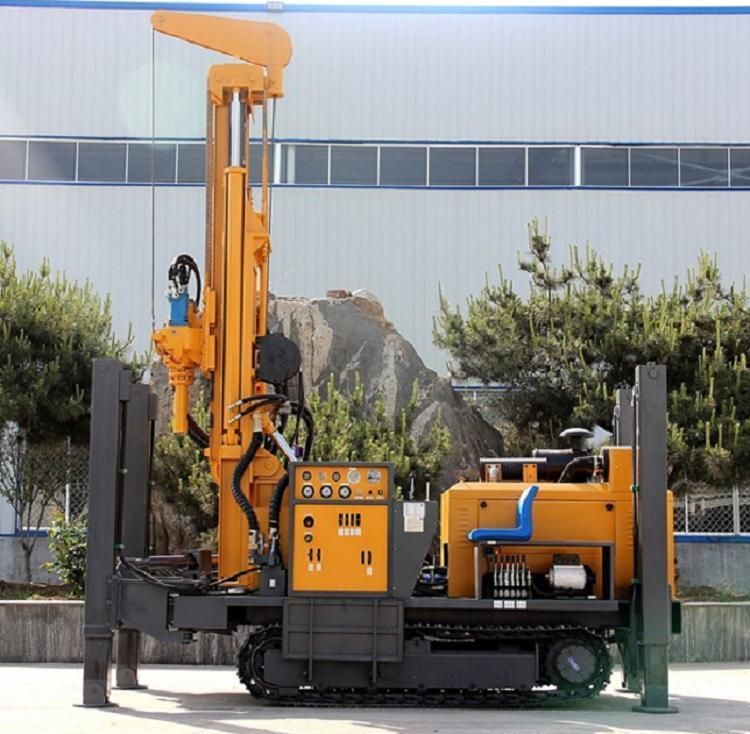

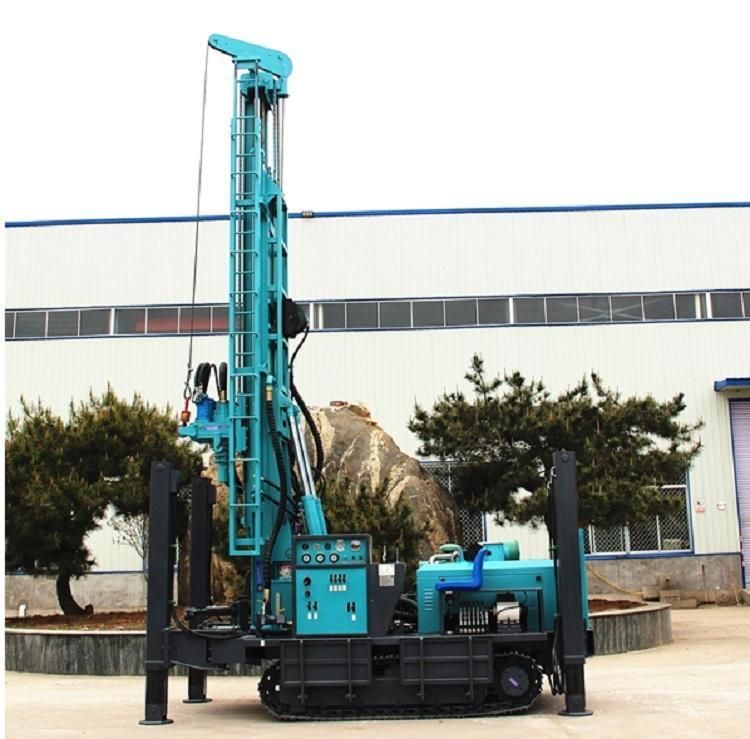

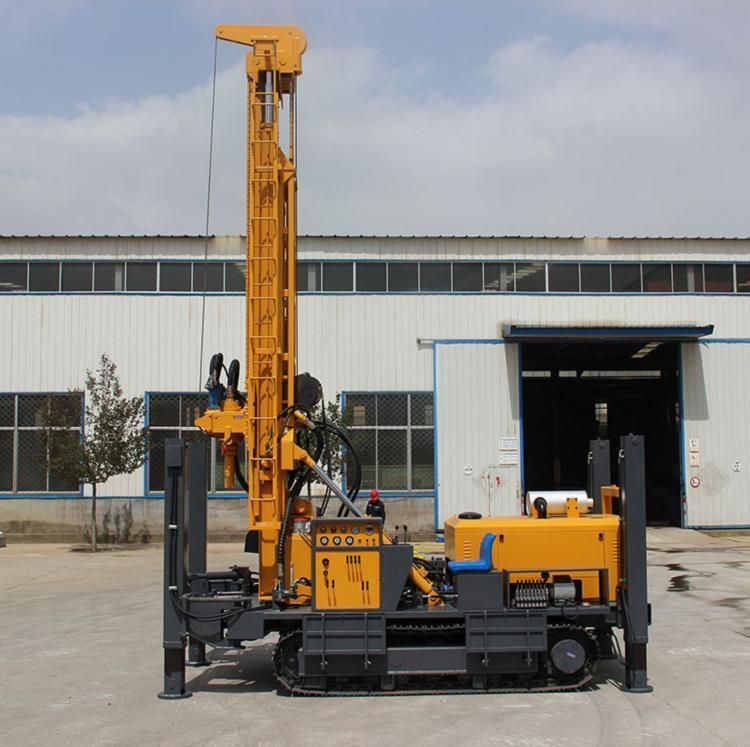

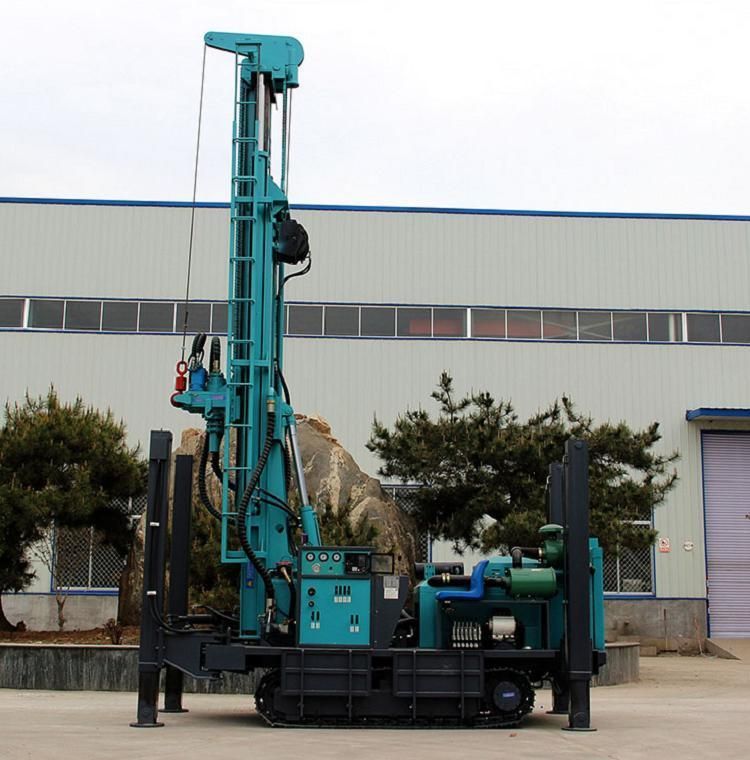

Details Images

Fy180 Crawler Pneumatic 180m Water Well Drilling RigFy180 Crawler Pneumatic 180m Water Well Drilling RigFy180 Crawler Pneumatic 180m Water Well Drilling RigFy180 Crawler Pneumatic 180m Water Well Drilling RigFy180 Crawler Pneumatic 180m Water Well Drilling RigFy180 Crawler Pneumatic 180m Water Well Drilling Rig
