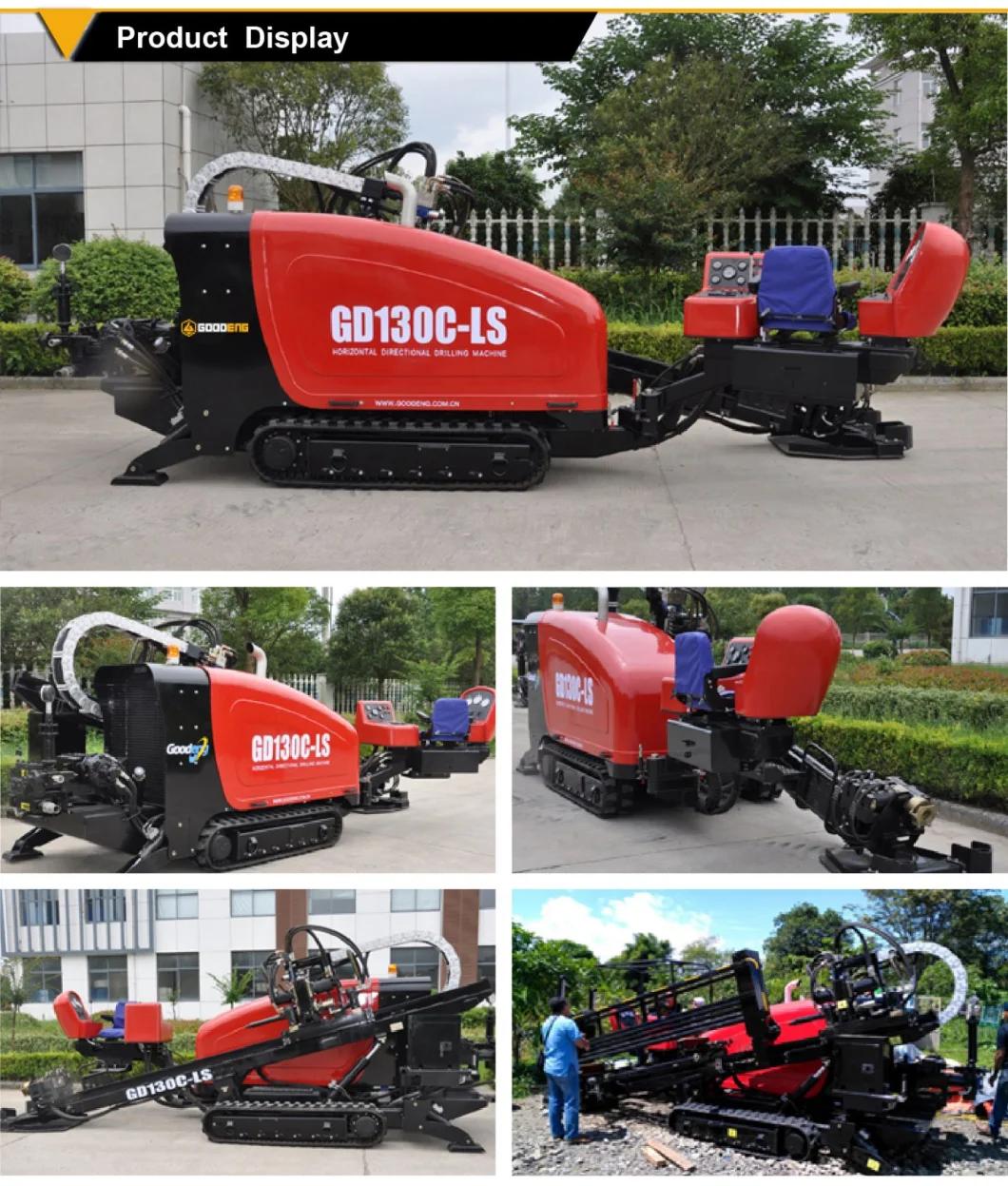

Long lifetime Goodeng small series GD130C-LS HDD rig

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：750 mm
  • Drill Hole Depth：200 m

Base Info

  • Model NO.：GD130C-LS
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Track
  • Engine Power：93 kw
  • Max Torque：4500 N·m
  • Max Mud Pump Flow：200 L,min
  • Transport Package：Nude Packing
  • Specification：5465*1670*2040 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：2000,Year

Description

Engine Power

 93 kw

Max Torque

4500 N·m

Rig Weight

4750 kg

Dimension(L*W*H)

5465*1670*2040 mm

Max. Push & Pull Force

135 kN

Max Rotation Speed

193 r/min

Max. Push & Pull Speed

36m/min

Max. Mud Pump Flow

200 L/min

Caterpillar Walking Speed

2.5-4.5 km/h

Max. Mud Pump Pressure

8 Mpa

Enter Drill Angle

12-22°

Max. Climbing Gradient

16°

Max. Aperture Diameter

Φ750 mm (Soil Depended)

Max. Crossing Length

200 (Soil Depended)

Long lifetime Goodeng small series GD130C-LS HDD rigLong lifetime Goodeng small series GD130C-LS HDD rigLong lifetime Goodeng small series GD130C-LS HDD rigLong lifetime Goodeng small series GD130C-LS HDD rigLong lifetime Goodeng small series GD130C-LS HDD rig

1. What about the warranty time?

    A:12 months after shipment or 2000 working hours,whichever occurs first.

2. What about the delivery time?

    A:10-20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

        On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

    A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
