Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 Model

Shandong Yahe Construction Machinery Co., Ltd.
  • After-sales Service：Video
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：10-30m

Base Info

  • Model NO.：DL-180
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Type：Four-Wheel Trailer
  • Product Name：Pile Driver, Drill Hole Flling Pile Construction
  • Drilling Diameter：500-1800mm
  • Power Source：Diesel
  • Color：Yellow and Red
  • Drilling Depth：8-10m
  • Engine：Wechai,Cummins
  • Application：Core Pile Driveing
  • Travel Drive：Mechanical
  • Driver：Two-Wheel Drive
  • Engine Rated Power：110kw
  • Power Head Speed：10-30
  • Tire：825-16
  • Chassis Length：5400mm
  • Drill Rod：Square Drill Pipe
  • MOQ：1 Set
  • Transport Package：Rotary Drilling Rig Package According to The Custo
  • Specification：9800mm*2200mm*2950mm
  • Trademark：YAHE HEAVY INDUSTRY
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：20 Sets,Month

Description

Basic Info.

Model NO. DL-180 Bit Type Cone Bit Drilling Way Rotary Type Four-Wheel Trailer Product Name Pile Driver, Drill Hole Flling Pile Construction Drilling Diameter 500-1800mm Power Source Diesel Color Yellow and Red Drilling Depth 8-10m Engine Wechai/Cummins Application Core Pile Driveing Travel Drive Mechanical Driver Two-Wheel Drive Engine Rated Power 110kw Power Head Speed 10-30 Tire 825-16 Chassis Length 5400mm Drill Rod Square Drill Pipe MOQ 1 Set Transport Package Rotary Drilling Rig Package According to The Custo Specification 9800mm*2200mm*2950mm Trademark YAHE HEAVY INDUSTRY Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

It is widely praised by customers for its compact size, powerful functions and high cost performance. The drilling rig is equipped with a four-drive power transmission system and a hydraulic expansion center of gravity. The upper body can be rotated 180 degrees stably, which increases the working range and area. The maximum drill rod depth of the drilling rig can reach 20 meters, and the drilling radius is 500-1500MM.


Parameter
modelDL-180
Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1500
drilling depth (m)5-20m
Kelly bar diameter (mm)315
Diamension (mm)10200*1950*3300mm
Total weight (t)8-10t
Power head max output torque (KN.m)24000N.m
Rotary speed (r/min)10-30RPM
Pressurized oil cylinder max pressure80KN
Pressurized oil cylinder max lifting force80KN
Pressurized oil cylinder max stroke13-20m
Mast sidewards inclination±4°
Mast forwards inclination4°
Max working pressure20Mpa
pilot pressure12Mpa
Travelling speed (km/h)40 km/h

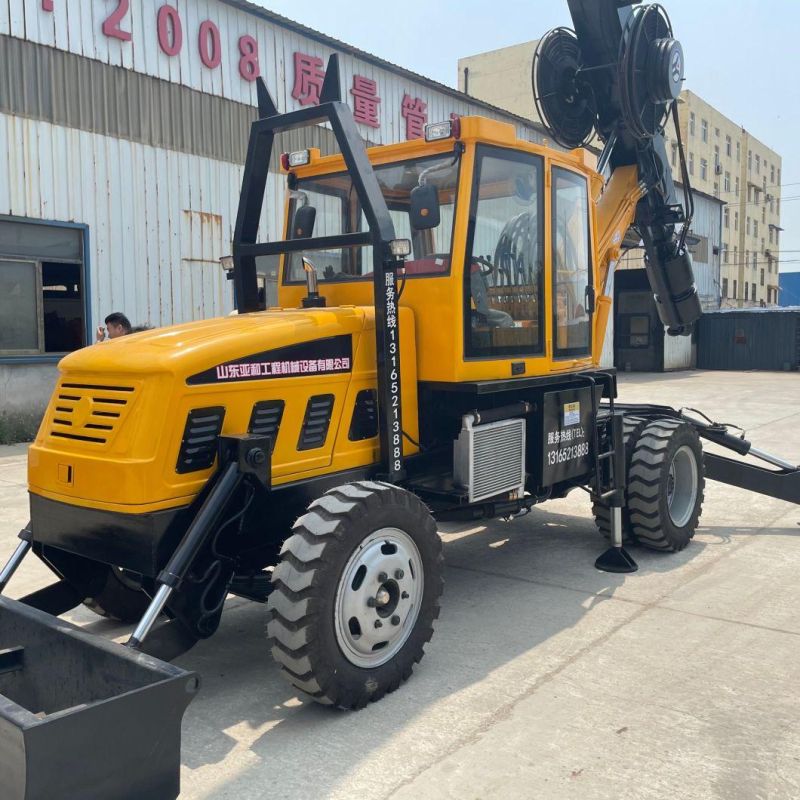

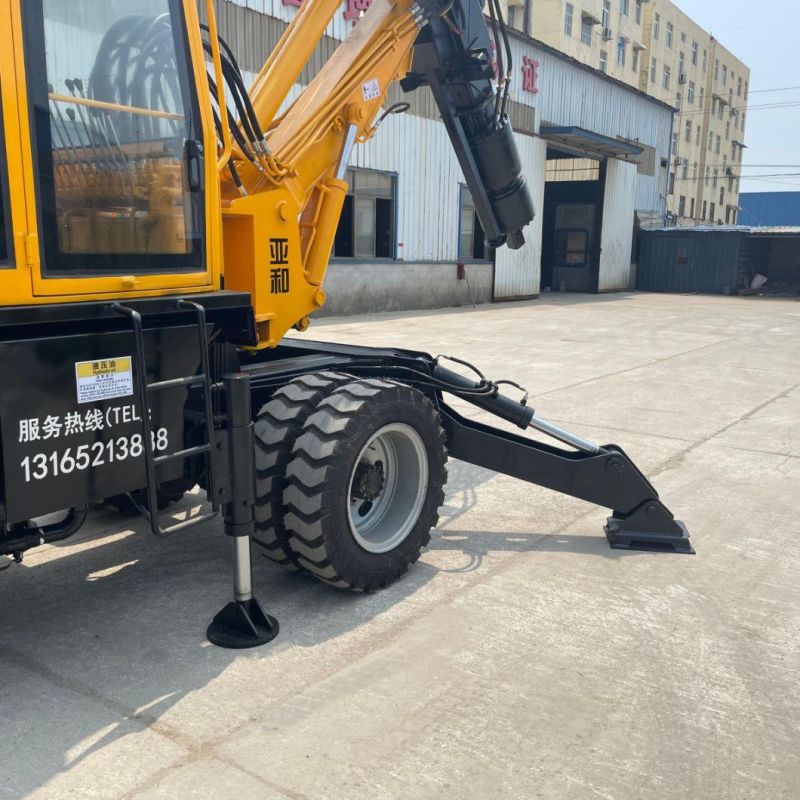

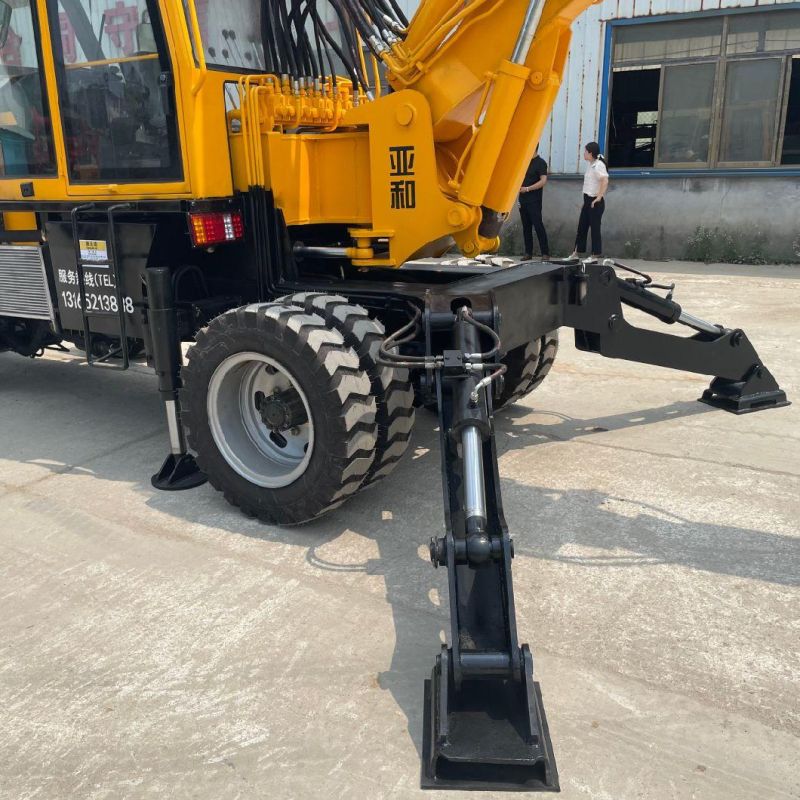

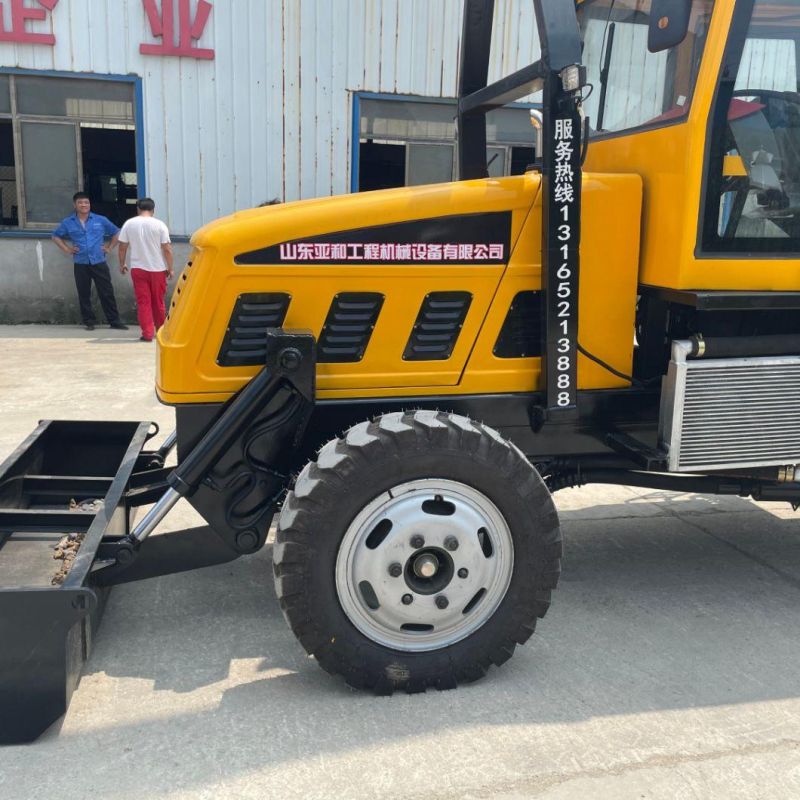

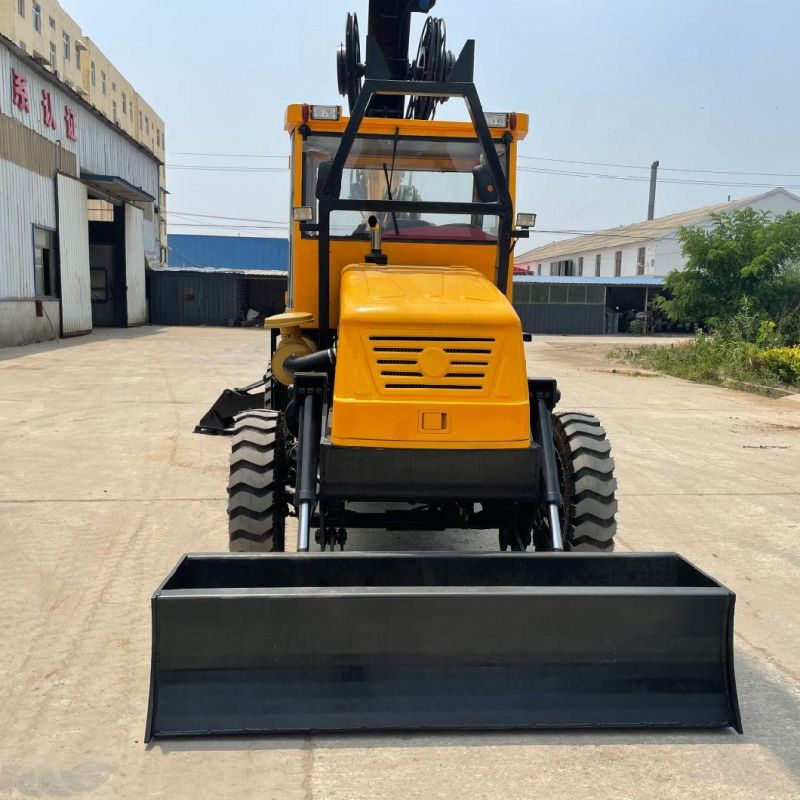

Machine Photos

Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 ModelBored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 ModelBored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 ModelBored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 ModelBored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 Model




Certification

We have many certificates, support verification, we export more than 30 countries!
Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 Model

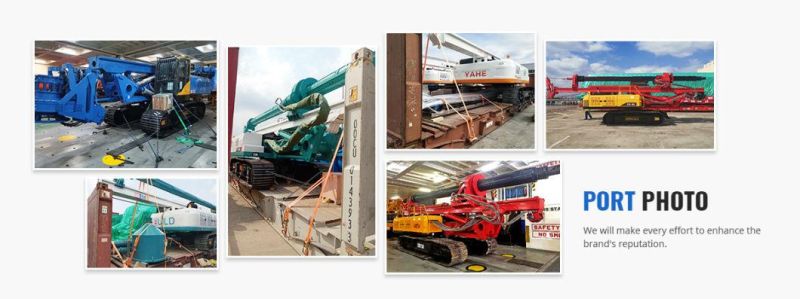

Transport
At present, there are three ways to transport rotary drilling rig: special equipment frame box, RO ro ship and bulk carrier. Generally speaking, they are the first two. Although the price is a little expensive, compared with bulk carriers, they are very safe. We will arrange port personnel to take reinforcement photos in each link. If customers need, we can send them by email.
Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 Model

Exhibition
We have been committed to participate in a variety of offline exhibitions, not only for the sale of our rig, but also for continuous learning. We are committed to the world, launched "rotary drilling rig, made in China!"
Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 ModelCustomer photo
Welcome customers from all over the world to visit our factory. We will provide accommodation for customers free of charge and give them operation demonstration on site. Customer satisfaction is our greatest hope.

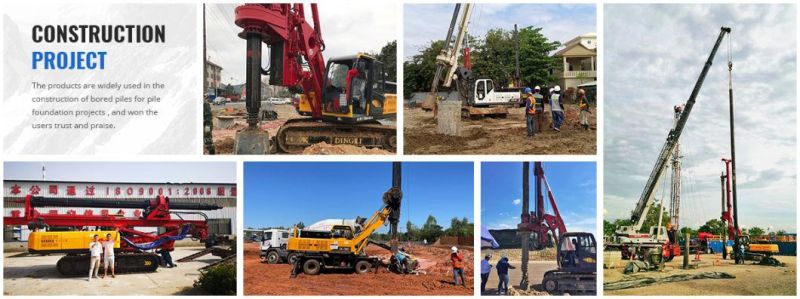

Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 ModelWorking photo
Thank you for your feedback. We currently export to 40 countries around the world. Our biggest advantage is that we are a rotary drilling rig manufacturer, which can reduce the price difference made by middlemen and import independently!
 Bored Piling Rotary Drilling Rig for Foundation Construction for 15m Depth Dl-180 Model
 FAQ

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.
2.Q: What does your company produce?
 A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
 A: Yes, price depends on different quantity, different quantity will give you different price
