• Model NO.：XZ200
• Type：Crawler
• Engine：6btaa5.9-C150
• Rated Power：112kw
• Rated Speed：2200 R,Min
• Fuel Tank Capcity：250L
• Rubber Track Width：320mm
• Transport Package：Nude Packing
• Specification：5900*2250*2400mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：50 Unit Per Month

Basic Info.

Model NO. XZ200 Type Crawler Engine 6btaa5.9-C150 Rated Power 112kw Rated Speed 2200 R/Min Fuel Tank Capcity 250L Rubber Track Width 320mm Transport Package Nude Packing Specification 5900*2250*2400mm Trademark EVANGEL Origin China Production Capacity 50 Unit Per Month

Product Description

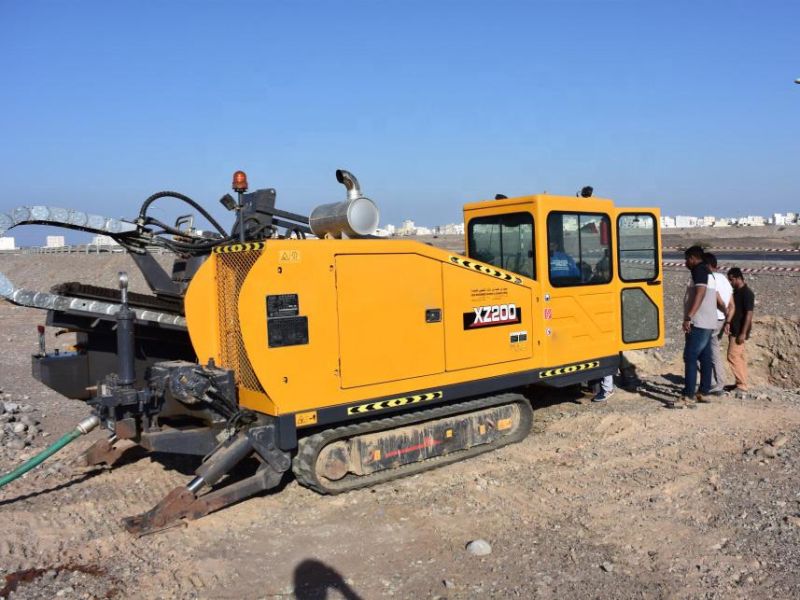

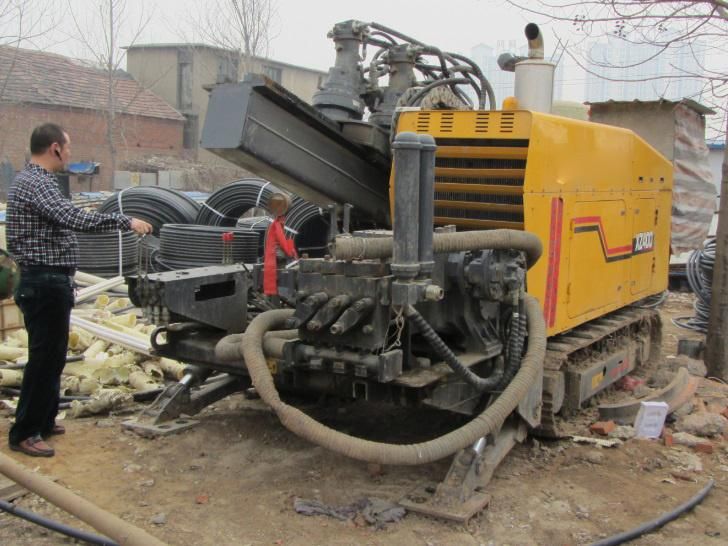

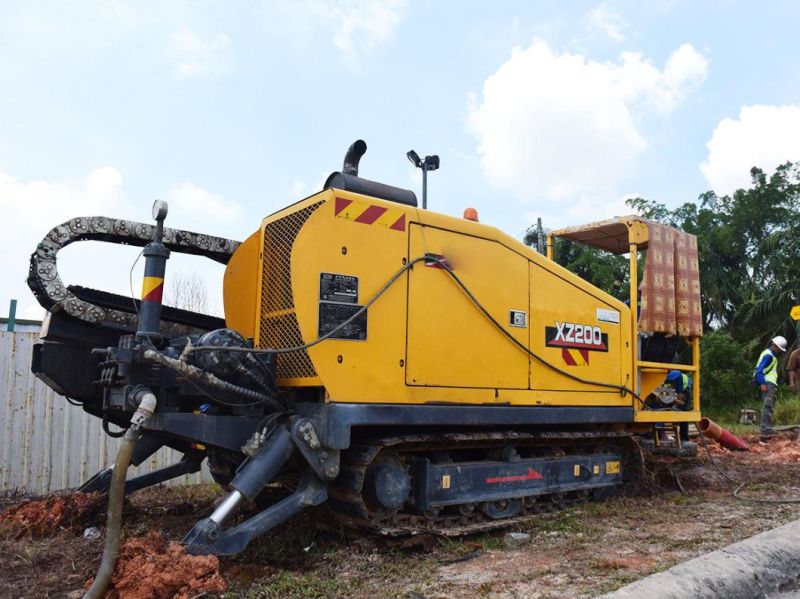

Small Horizontal Directional Drill HDD Machinery XZ200

horizontal drilling rig XZ200 has compact structure and attractive appearance, adopts various advanced technologies and the proprietary technologies of the company, and its main performance parameters and control technologies have reached the world advanced level.

Horizontal Drilling Rig XZ200 Technical Characteristics:
1.Strong Power
112kW horsepower engine is adopted to ensure that the drilling rig can complete pipe laying operations under all kinds of complicated geological conditions.

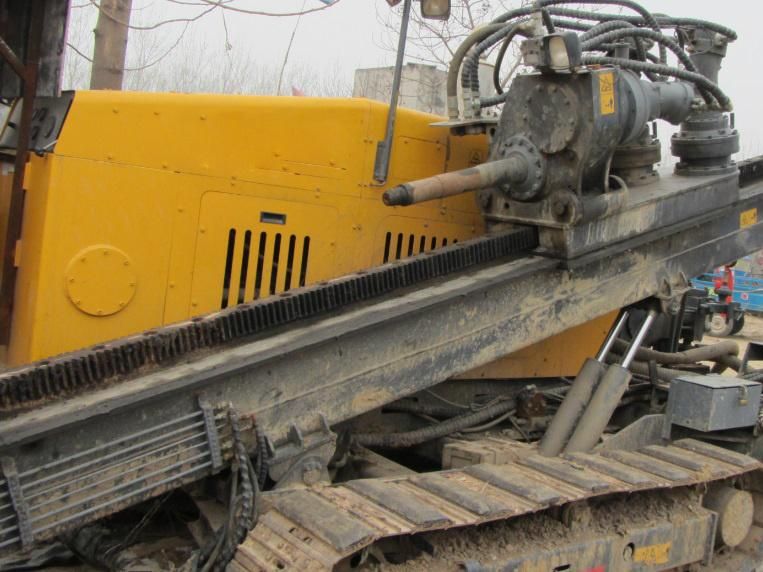

2. Two-Speed Unit Head
The unit head operates at a low speed during drilling and pullback to ensure smooth construction; and it can slide at an accelerating speed to reduce auxiliary time and improve work efficiency when the removable drill rod reciprocates with no-load.

3. Rubber Crawler
It has a minimal impact on roads, lawns and scenic spots.

4. Floating-Type Vise
It applies the proprietary floating-type vise of the company, which can effectively extend the service life of the drill rod.

5. Rotatable Control Desk
It widens the visual field and reduces the fatigue of the operator to make the drilling rig operation more simple and comfortable.

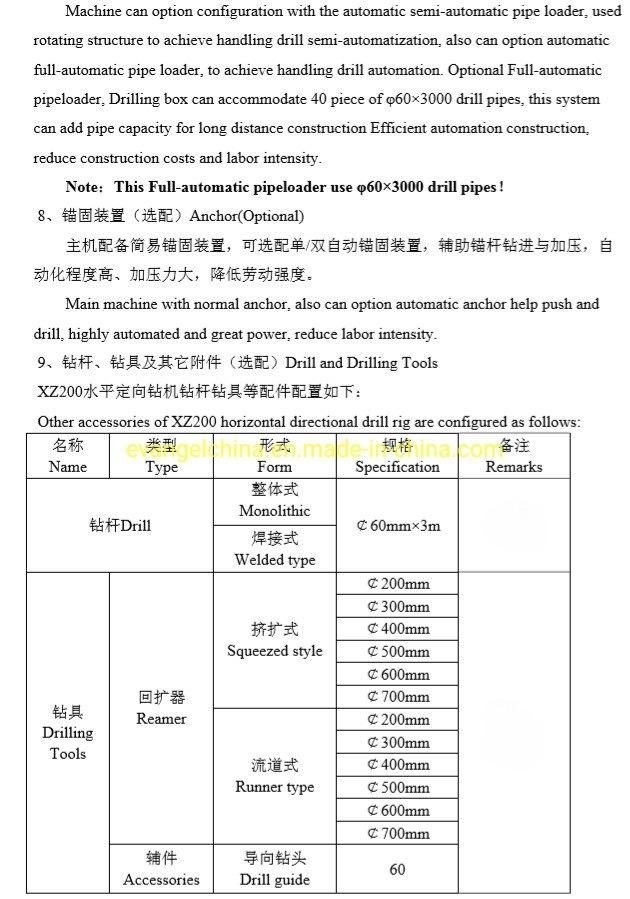

6. Automatic Handling Device of Drill Rod
This can improve efficiency, and reduce the operators' labor intensity and the number of construction personnel.

7. Automatic Anchoring
Hydraulic drive mode is applied, and the drilling and pullback of anchor is controlled by the oil cylinder and low-speed high torque motor; the operation is easy and convenient.

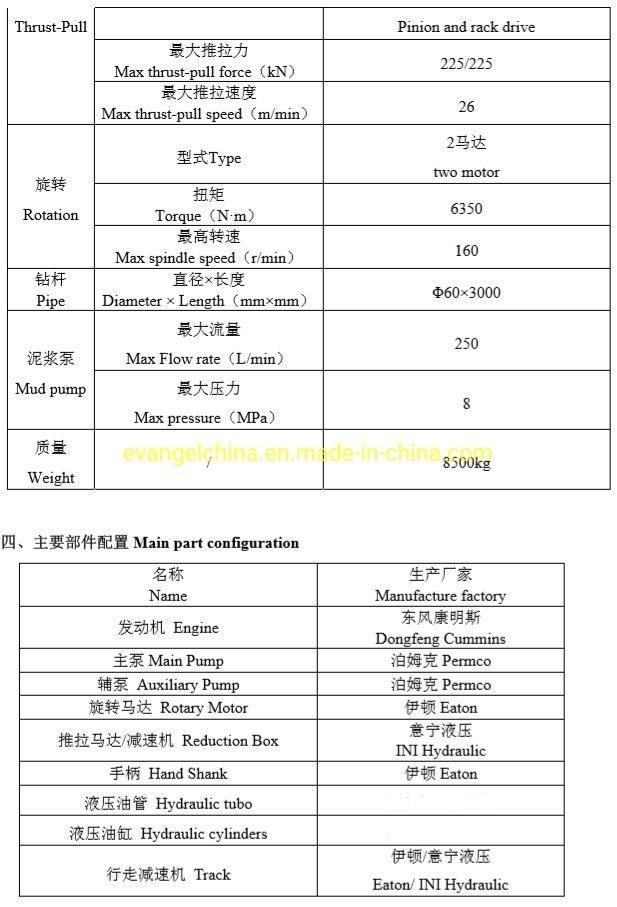

Description	unit	XZ200
Dimension LxWxH	mm	6200x2250x2400
Overall weight	t	8.5

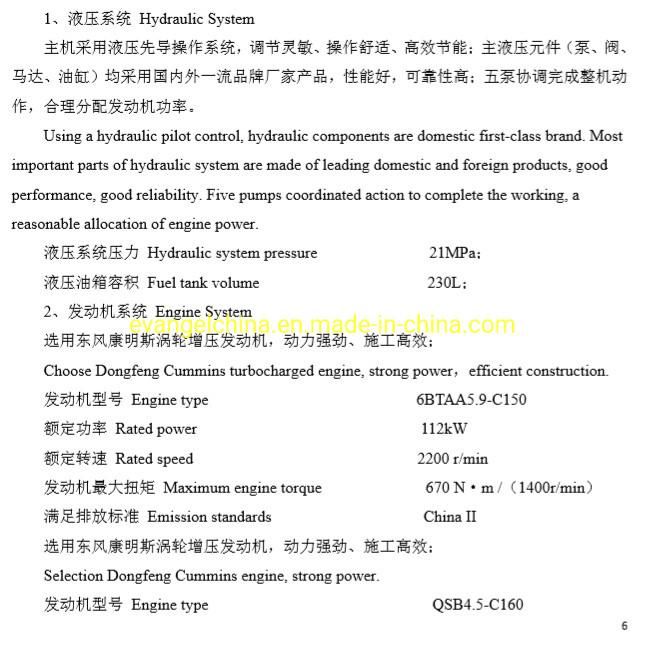

Engine model		6BTAA5.9-C150
Engine power	KW	112
Thrust-pull mode		Rack and pinion
Max.pullback/thrusting	KN	200/200
Max.spindle torque	N.m	6350
Spindle speed	r/min	0-155
Spindle traveling speed	m/min	0-26
Max.backreaming diameter	mm	600
Pipe length(single)	m	3
Pipe diameter	mm	60
Entry angle	0	10-22
Max.mud flow rate	L/min	200/250
Max.mud pressure	bar	80
