• Model NO.：HZ-180YY
• Drill Hole Depth：180m
• Bit Type：Diamond Bit, Cone Bit, Drag Bit
• Drilling Way：Impactor
• Dimension(L*W*H)：2400*600*1400mm
• Revolution(Rpm)：130,300,480,730,830,1045
• Key Selling Points：Low Maintenance Cost
• Matching Power：13.2 Kw
• Weight：610kg
• Max Pressure：1.2MPa
• Stroke：450
• Max Pull Force：2000
• Transport Package：Carton
• Specification：2400*600*1400mm
• Trademark：D Miningwell
• Origin：Zhejiang, China
• Production Capacity：16 PCS Per Month

Basic Info.

Model NO. HZ-180YY Drill Hole Depth 180m Bit Type Diamond Bit/ Cone Bit/ Drag Bit Drilling Way Impactor Dimension(L*W*H) 2400*600*1400mm Revolution(Rpm) 130/300/480/730/830/1045 Key Selling Points Low Maintenance Cost Matching Power 13.2 Kw Weight 610kg Max Pressure 1.2MPa Stroke 450 Max Pull Force 2000 Transport Package Carton Specification 2400*600*1400mm Trademark D Miningwell Origin Zhejiang, China Production Capacity 16 PCS Per Month

Product Description

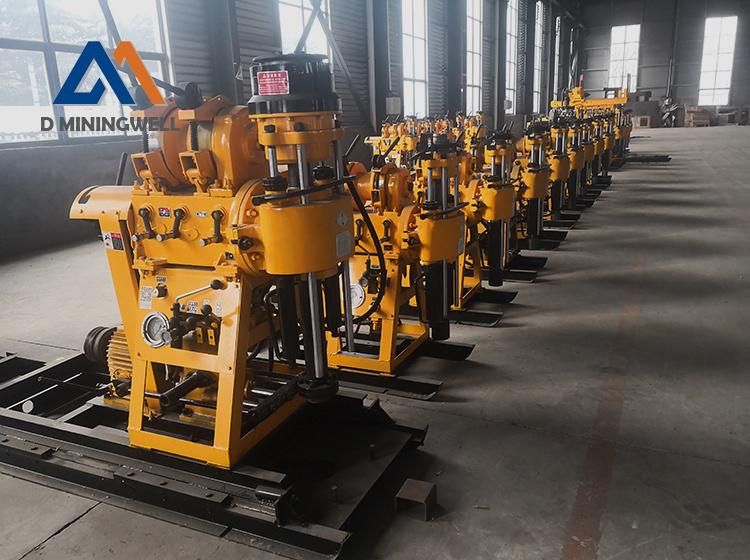

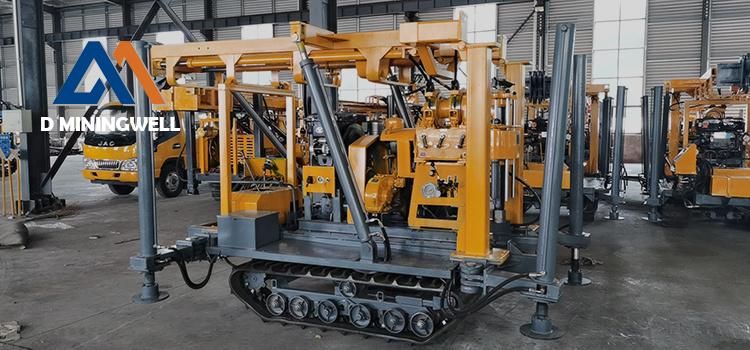

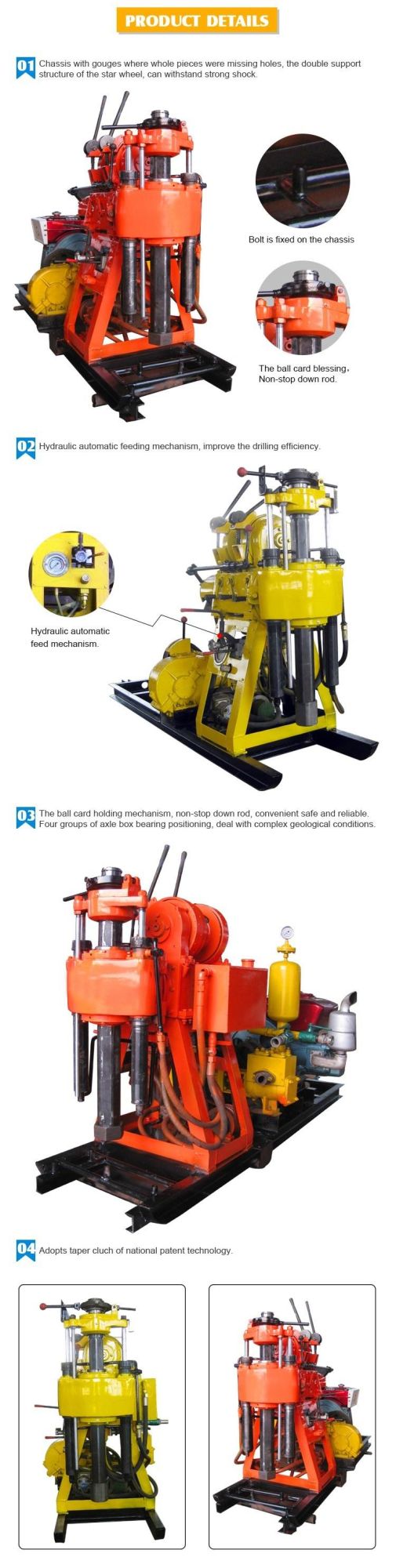

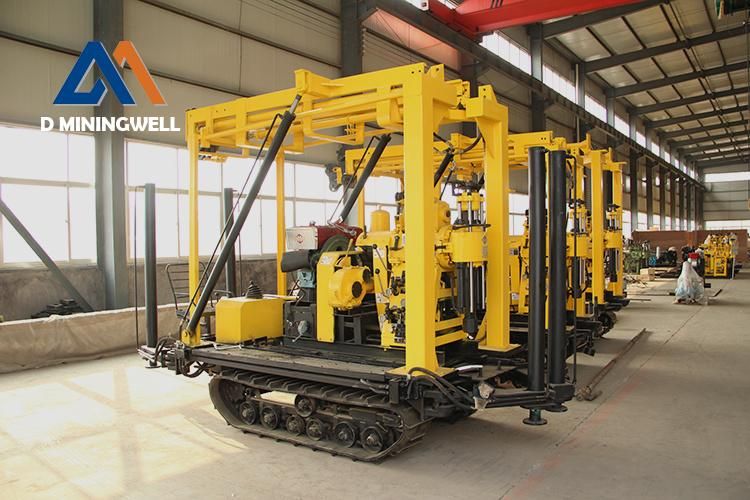

D Miningwell HZ-180YY Core Drill Rig Movable Cheap Rock Drill Rig Portable High Quality Hydraulic Core Drill Rig for Sale


Model	HZ-130Y/130YY	HZ-180Y/180YY	HZ-200Y/200YY
Drilling depth(m)	130	180	200
Open hole diameter(mm)	220	220	325
End hole diameter(mm)	75	75	75
Drill rod diameter(mm)	42-60	42-60	42-60
Drill angle(°)	90-75	90-75	90-75
Matching power(kW)	13.2	13.2	15
Weight without power(kg)	560	610	1150
Dimension(mm)	2400*700*1400	2400*600*1400	2700*900*1600
Revolution(rpm)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Max pull force(kg)	1600	2000	2400
Pull speed(m/min)	0.41-1.64	0.35-2.23	0.12-0.95
Rope diameter(mm)	9.3	9.3	12.5
Roll capacity(m)	27	35	35
Rated load(ton)	2	2	5
Height(m)	6	6	6
Displacement(L/min)	95	95	145
Max pressure(Mpa)	1.2	1.2	2
ToFrequency(times/min)	93	93	93
Inlet hose diameter(mm)	51	51	51
Outlet hose diameter(mm)	32	32	32
