Drilling Rig

China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill

Jinan Duobo Intelligent Technology Co., Ltd.
  • Warranty:One Year
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008

Base Info

  • Model NO.:FY500
  • Condition:New
  • Motor:AC Motor
  • Drill Hole Diameter:250-300mm
  • Drill Hole Depth:>200m
  • Bit Type:Diamond Bit
  • Drilling Way:Rotary
  • Type:Crawler
  • Total Weight:11.5t
  • Drill Pipe Length:1.5, 2.0, 3.0, 6.0mm
  • Host Power:118kw
  • Swing Torque:7500-10000 N.M
  • Air Consumption:17-42m3,Min
  • Swing Speed:40-130rpm
  • Drilling Speed:15-35 M,H
  • Walking Speed:2.5km,H
  • One Time Advance Length:6.6m
  • Using Air Pressure:1.7-3.5MPa
  • Diesel Engine:Yuchai Brand
  • Rapid Rise Speed:20m,Min
  • Fast Feeding Speed:40m,Min
  • Drill Pipe Diameter:102, 108, 114mm
  • Climbing Angle:30 Degree
  • Transport Package:Export Standard Seaworthy Packing
  • Specification:5950x1850x2360mm
  • Trademark:Qingchi
  • Origin:Shandong, China
  • HS Code:843041
  • Production Capacity:500 Sets,Year
  • Package size per unit product:1150.00cm * 210.00cm * 210.00cm
  • Gross weight per unit product:11500.000kg

Description

Overview

Product Description

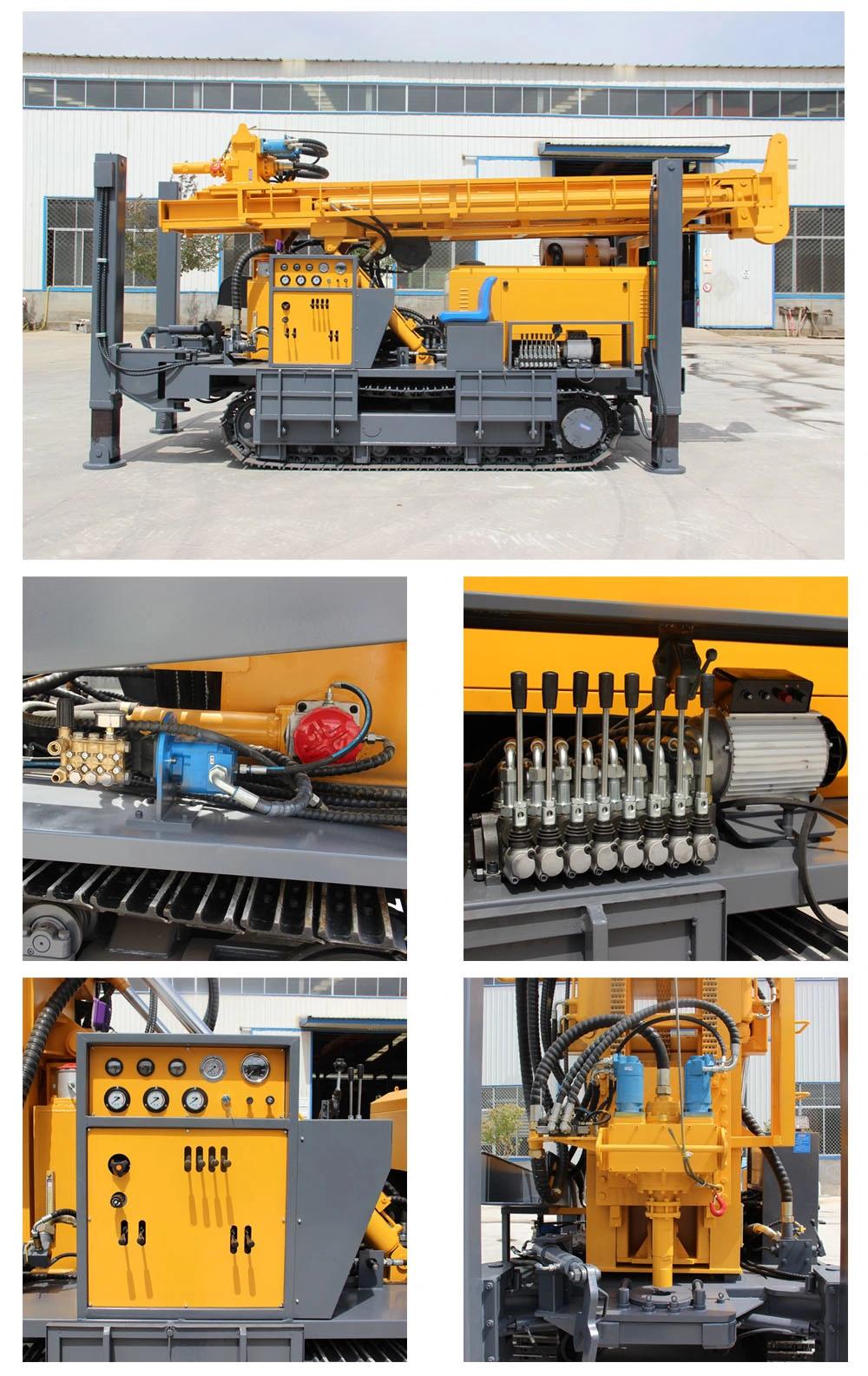

Detailed Photos



China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill

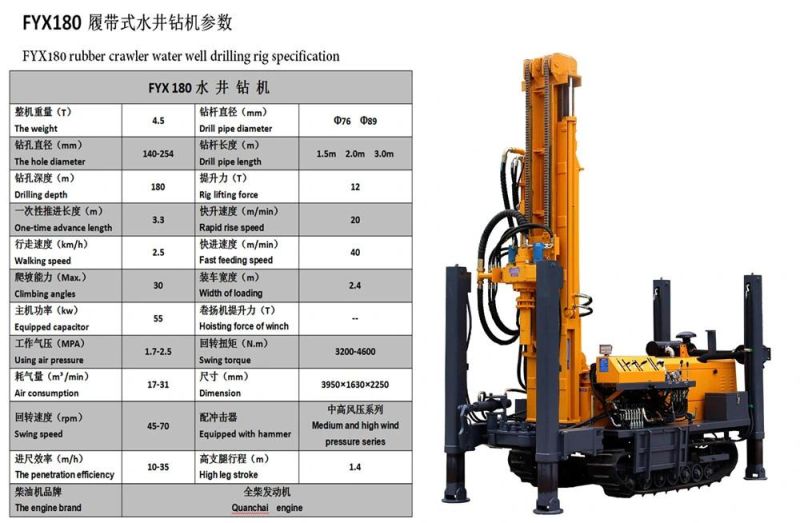

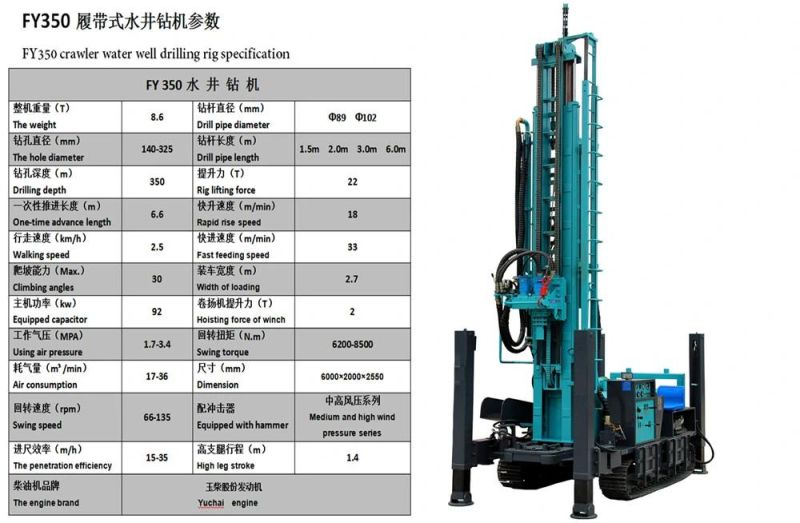

Product Parameters

Packaging & Shipping





China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill

Company Profile

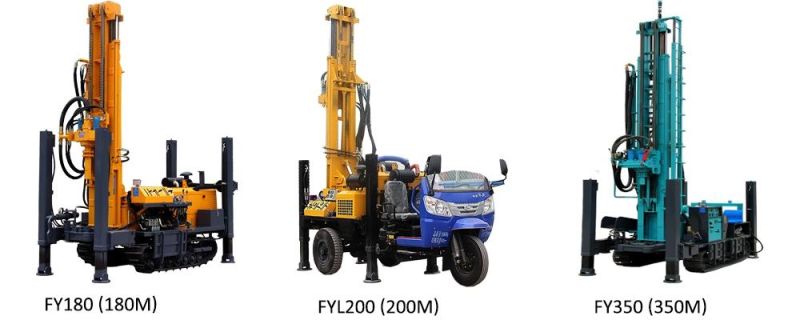

Other product

China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill

China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill
China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill
China Factory Manufacture Deep Water Well Big Mobile Hydraulic Crawler Drill


Our team

FAQ

1. Q: What kind of terms of payment can be accepted?
A: Normally we can work on T/T or L/C.

2. Q: Which incoterms 2010 terms can we work?
A: Normally we work on FOB, CFR, CIF, EXW, DDU.

3. Q: What about the delivery time?
A:7 days after receiving the deposit.

4. Q: What about the warranty time?
A:12 months after shipment, the engine is 6 months.

5. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 set.

6. Q: Could you stick customers' brands on the products?
A: We warmly welcome the OEM orders.
