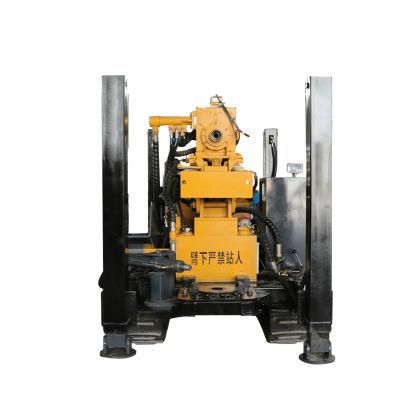

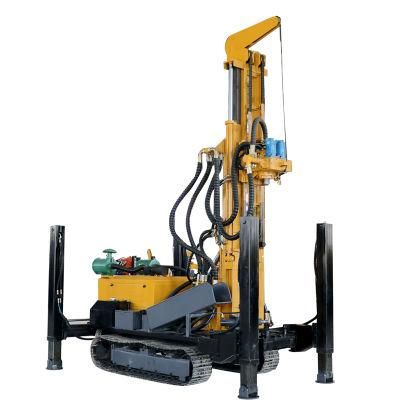

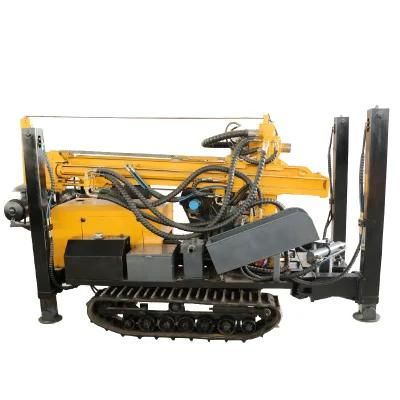

Jk-Dr350 Water Well Drill Rig with Steel Crawler for Sale
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-325mm
- Drill Hole Depth：350m
- Bit Type：Diamond Bit
Base Info
- Model NO.：JK-DR350
- Drilling Way：Rotary
- Type：Crawler
- Usage：Water Well
- Voltage：24V
- Weight：9t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig
- Transport Package：40hc
- Specification：5900*2000*2850mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430412100
- Production Capacity：100sets,Month
Description
The Main Parameters Model JK-DR350 Weight 9T Bore diameter 140-325mm Drilling depth 350m Stroke 6.6m Travelling speed 2.5km/h Gradeability 30% Power 84KW Rated pressure 1.7-3.3mpa Air consumption 17-35m³/min Drill rod diameter Φ89, Φ102 Drill rod length 1.5m 2.0m 3.0m 6m Elevating capacity 20T Swing speed 55-115rpm Swing torque 6200-8500N.M Dimensions 5900*2000*2850mm
