Goodeng GS5000-LS large series trenchless machine

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：2000 mm
  • Drill Hole Depth：2500 m

Base Info

  • Model NO.：GS5000-LS
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Track
  • Engine Power：2*294 kW
  • Max Torque：140000 N.m
  • Max Mud Pump Flow：Extra Mud Pump
  • Transport Package：Nude Packing
  • Specification：17700*2500*3460 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：2000,Year

Description

Rig Weight57500kgDimension (L*W*H)17700*2500*3460mmMax Torque140000N·mMax Push & Pull Force6000kNMax Rotation Speed92rpmMax Push & Pull Speed45m/minMax Clamp Force2550kNMax Unscrewing Force of Pipe Jaw370000N·mEngine Power2*294kWMax Working Pressure35MPaDrill Pipe DiameterΦ127mm-Φ168mmMax Length of Drill Pipe9.6mEntry Angle9°-16°Max Caterpillar Walking Speed4.5km/hMain Spidle Floating Distance100 mmMud Pipe Channel Diameter76.2/101.6mmMax Mud Floating Volume2000L/minMax Mud Pressure12MPaPermitted Environment Temperature-30°C-50°CPermitted Environment Humidity>90%Max Aperture Diameter ø2000mm
(Soil Depended)Max Crossing Length 2500m
(Soil Depended)Goodeng GS5000-LS large series trenchless machine

1.Two sets Weichai engine can meet different working conditions and save energy.

2. High-performance proportional electrical control open circuit system.

3. Driving head rotation and push & pull are performed in full-scale stepless speed regulation.

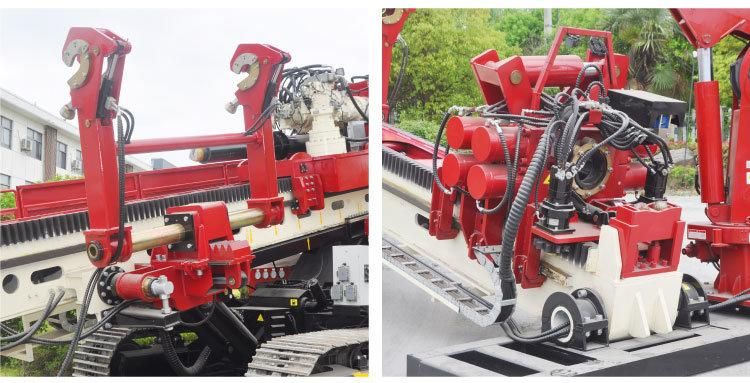

4. Front and back clamping can be separated, and the clamping can float in the whole process.

5. Equipped with φ140×9600mm or φ168×9600mm drill pipe.

6. Drill pipe bracket increases the accuracy of drill pipe loading and unloading.

7. 5ton crane.

8. Automatic rod loading/unloading equipment.

9. Steal track walking system is convenient for transferring at site.

10.Equipped with independent operation cabin with necessary and comfortable decoration.

11.Hydraulic system is designed in conformity to large flow and high pressure.

12.Self-designed and developed, combined electronic controlling system realizes its adaptive control to different working conditions and different geologic strata.

13.Liquid crystal man and rig exchange system can monitor rig condition at any time.

14.Rational and effective cooling system ensures safety, reliability and efficiency of system, extends motor using lifespan, and avoids motor damage.

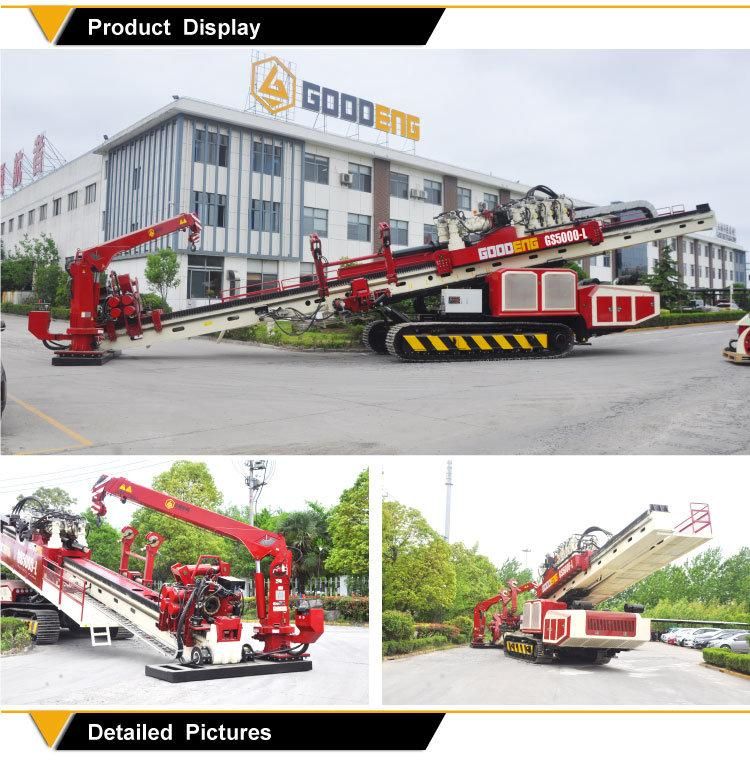

Goodeng GS5000-LS large series trenchless machine
Goodeng GS5000-LS large series trenchless machineGoodeng GS5000-LS large series trenchless machineGoodeng GS5000-LS large series trenchless machine

1. What about the warranty time?

    A:12 months after shipment or 2000 working hours, whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

       On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

   A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
