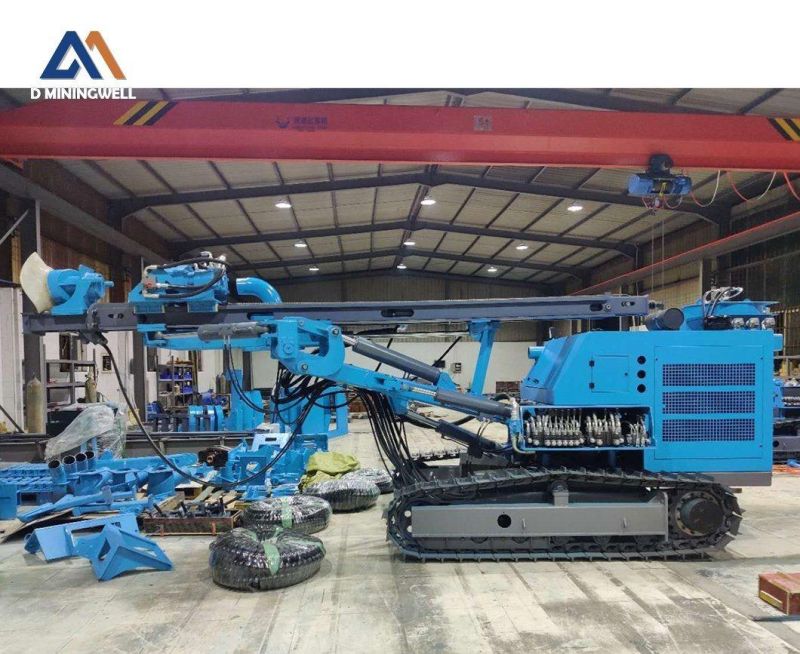

Drill Rig DTH Type Down-The-Hole Crawler Drilling Rig 203mm Borehole Drilling Machine

Zhejiang Miningwell Supply Chain Management Co., Ltd.
  • After-sales Service：Video Technical Support, Online Support, Spare PAR
  • Warranty：1 Year
  • Certification：ISO9001
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：90-203mm

Base Info

  • Model NO.：HT500
  • Drill Hole Depth：<100m
  • Bit Type：DTH Bit
  • Drilling Way：Impactor
  • Product Name：DTH Drill Rig
  • Hammer Size：3 , 4 , 5inch
  • Drill Rod Length：2 , 3m
  • Key Selling Points：Competitive Price
  • Rotation Torque：1800-3600nm
  • Drilling Depth：Max.30m
  • Weight：5800kg
  • Transport Package：Nude
  • Specification：6.4m*2.2m*2.4m
  • Trademark：D Miningwell
  • Origin：Zhejiang, China
  • Production Capacity：20 PCS Per Month

Description

Main parametersHT400HT500HT600Hole Rangemm90-15590-20390-254Hammer SizeInch3 / 4 / 53 / 4 / 5 / 63 / 4 / 5 / 6 / 8Drill Rod Diametermm76 / 8976 / 8976 / 89Drill Rod Lengthm2 / 32 / 32 / 3Economic Drilling Depthm303021Rotation torqueNm28001800-36002200-4400Rotation Speedrpm0-1100-1100-110Model Yuchai YC4DK100Yuchai YC4DK100Yuchai YC4DK100PowerkW73.573.573.5Pressure Requiredbar7~257~257~25Air Comsuptionm3/min8-208-208-20Advance lengthmm318531854125Max. PropulsionkN20.520.545.0Max.Walking Speedkm/h3.03.03.0Gradeabilityo25°25°25°Ground clearance of chassismm480310400Weightkg550058003200Length*width*height m6.4*2.2*2.46.4*2.2*2.46.4*2.2*2.4Leveling angleo/Front 13 / Back 13Front 13 / Back 13Dust Collector Dry typeDry typeDry type  Drill Rig DTH Type Down-The-Hole Crawler Drilling Rig 203mm Borehole Drilling MachineDrill Rig DTH Type Down-The-Hole Crawler Drilling Rig 203mm Borehole Drilling MachineDrill Rig DTH Type Down-The-Hole Crawler Drilling Rig 203mm Borehole Drilling MachineDrill Rig DTH Type Down-The-Hole Crawler Drilling Rig 203mm Borehole Drilling MachineDrill Rig DTH Type Down-The-Hole Crawler Drilling Rig 203mm Borehole Drilling Machine
