• Model NO.：HFDD-25
• Max. Pull Capacity：300kn
• Rated Torque：8000n.M
• Feeding Stroke：3500 mm(137.8 Inch)
• Diameter of Guide Hole：130 mm(3.15 Inch)
• Drilling Angle：8°—21°
• Pressure of Hydraulic System：20MPa
• Traveling Speed：2-3 Km,H
• Weight：10t
• Max. Flow Rate：250 L,Min
• Max. Pressure：8 MPa
• Rod Size：60mm, 73mm
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Hanfa
• Origin：Zhengzhou City, China
• HS Code：8430490000
• Production Capacity：50sets ,Month

The Main MachinePower of Engine133 KW(2200r/min)Max. Pull capacity300KN Rated Torque8000N.mMain shaft rotary speedLower 0-68r/minHigh 0-135r/minFeeding Stroke3500 mm(137.8 inch)Diameter of Guide Hole130 mm(3.15 inch)Drilling Angle8°-21°Pressure of hydraulic system20MpaTraveling speed2-3 km/hStructural Styleintegrated with rubber crawler and mud pumpDimension (L×W×H)6000×2060×2330 mmWeight10tMud PumpSpecificationBW-160AMax. flow rate250 L/minMax. Pressure8 MpaRod size60mm, 73mm

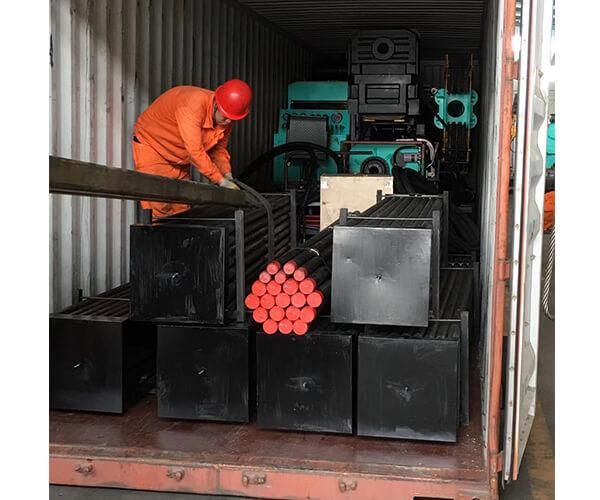

The Delivery

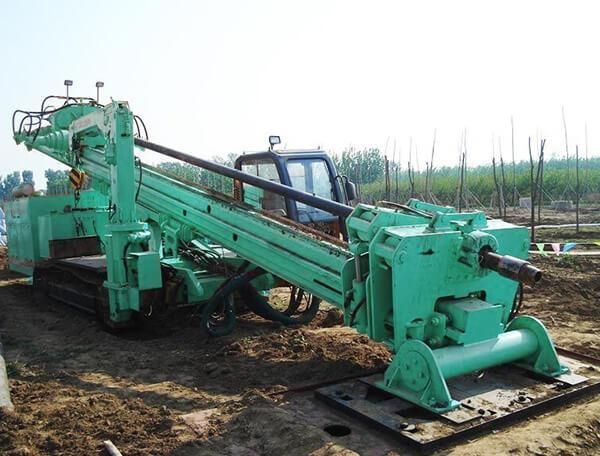

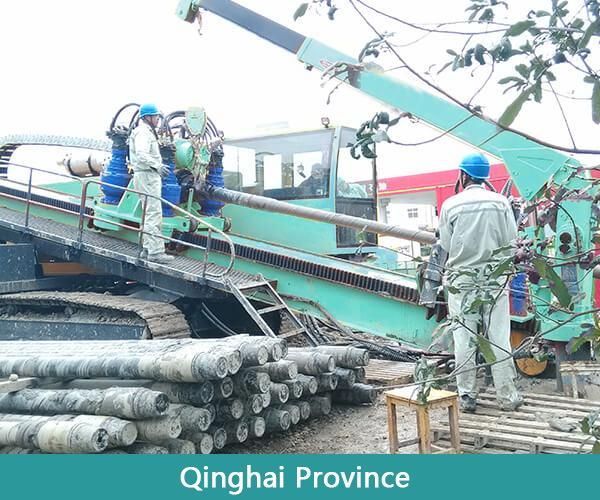

Construction Site




Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.


1. More than 30 years of experience

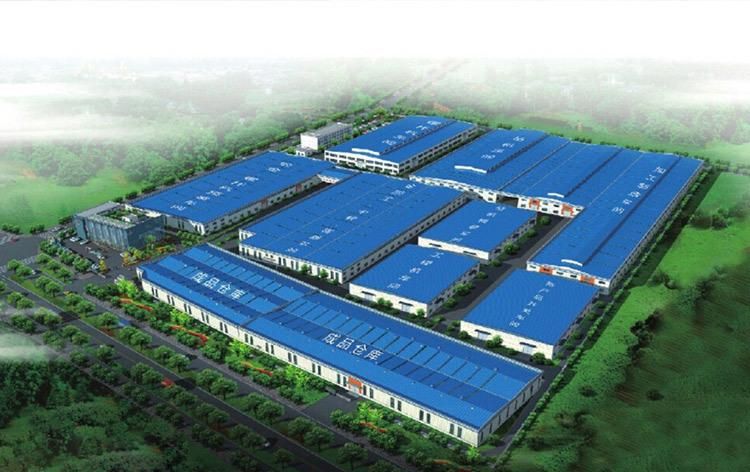

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.

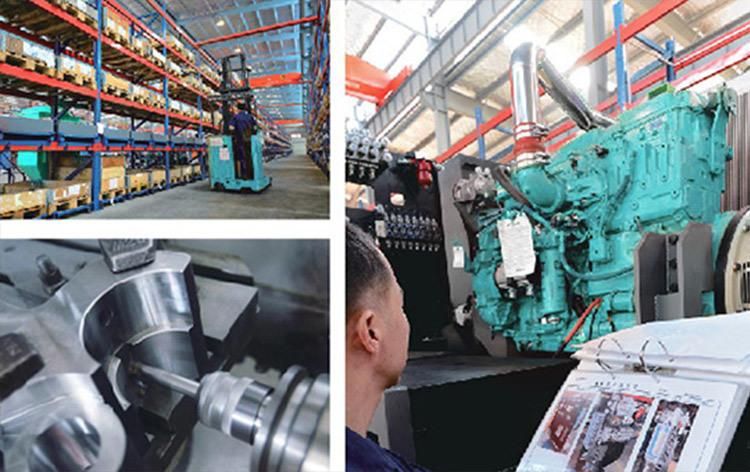

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.



Our Customers
