Drilling Rig

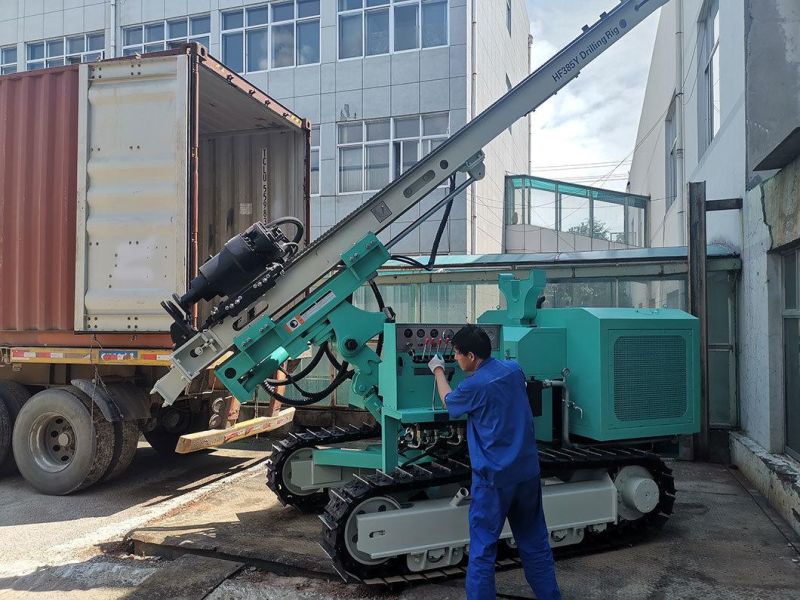

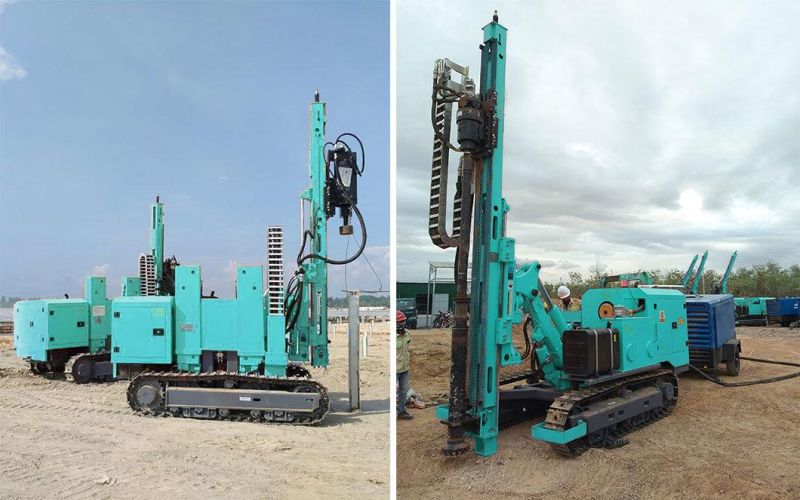

Hf385y 130-400mm Pile Driving Post Anchor Ground Screw Driver Rig

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • After-sales Service:Online Support,Field Maintenance
  • Warranty:1 Year
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Motor:DC Motor
  • Drill Hole Diameter:90-400mm

Base Info

  • Model NO.:HF385Y
  • Drill Hole Depth:20-120m
  • Bit Type:DTH Bit
  • Drilling Way:Rotary
  • Bore Diameter(Hammer):90-400mm
  • Pipe Diameter:76mm,89mm
  • for Rock:F=6-20
  • Bore Diameter(Screw):Max 400mm
  • Bore Depth:20-120m
  • Once Promotion:3200mm
  • Host Power:84kw
  • Weight:5800kg
  • Walk Speed:0-2.5km,H
  • Air Pressure:0.7-2.46MPa (Medium)
  • Skid Pitch:120º
  • Transport Package:Wooden Case or as Your Requirement
  • Specification:5300*1970*2620mm
  • Trademark:Hanfa
  • Origin:Zhengzhou City, China
  • HS Code:843041
  • Production Capacity:30sets,Month
