Drilling Rig

Portable Mine Drilling Rig for Diamond Core Drill Rig

Qingdao Bohwa Machinery Corporation
  • After-sales Service:Available
  • Warranty:1 Year
  • Certification:ISO 9001:2000
  • Condition:New
  • Motor:DC Motor
  • Drill Hole Diameter:<100mm

Base Info

  • Model NO.:WD-50T
  • Drill Hole Depth:50-100m
  • Bit Type:Diamond Bit
  • Drilling Way:Rotary
  • Lifting Force:300kg
  • Feeding Force:200kg
  • Drilling Angle:90 Degrees
  • Drill Pipe Dia.:42mm
  • Transport Package:Wooden Case
  • Specification:1400mmx600mmx1600mm
  • Trademark:Bohwa
  • Origin:China
  • HS Code:8430490000
  • Production Capacity:50 Sets,Month

Description

Basic Info.

Model NO. WD-50T Drill Hole Depth 50-100m Bit Type Diamond Bit Drilling Way Rotary Lifting Force 300kg Feeding Force 200kg Drilling Angle 90 Degrees Drill Pipe Dia. 42mm Transport Package Wooden Case Specification 1400mmx600mmx1600mm Trademark Bohwa Origin China HS Code 8430490000 Production Capacity 50 Sets/Month

Product Description

Portable Mine Drilling Rig for Diamond Core Drill Rig
I. Product Description

WD-50T is a simple rig with crawler chassis  suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. The walking crawler chassis is suitable for different terrains. Typically, it is mainly used for:
  • Soil sampling with auger drilling.
  • Anchor drilling
  • Micro piling
  • Geothermal drilling
  • Core drilling with conventional coring tools
  • Water well drilling by carbide and rotary drilling

II. Main Features

Compact in size and light in weight, easy to be carried and transported on difficult working sites.  The drilling rig is modular designed. The walking crawler chassis is suitable for different terrains. It can be used in the agricultural and mineral places. If it will be used in the mining tunnel, the drill mast can be disassembled.

This is especially usefully for carrying the drilling rig in the places (like mountains or jungles) that is difficult to access.


III. Technical Specification


Model No.WD50MWD50T (With Crawler Chassis)
Drill Pipe Diameter42mm42mm
Drilling Hole Diameter75mm75mm
Drilling Depth50 m50 m
Kelly BarDia.=50mm / L=1mDia.=50mm / L=1m
Recommend Drill Pipe Length 0.75m  2m
Drilling Angle90°90°
Diesel Engine Power5.7kW/2200rpm5.7kW/2200rpm
Dimensions of Main Machine  (L x W x H)1400x600x1600mm (Packaged)2000x600x2000mm (Packaged)
Total Weight of Main Machine300KG800KG
The Heaviest Part of Machine70KG350KG
Spindle Rotary Speed285, 570r/min285, 570r/min
Spindle Stroke1m1m
Lifting Force300KG>300KG
Feeding Force200KG200KG

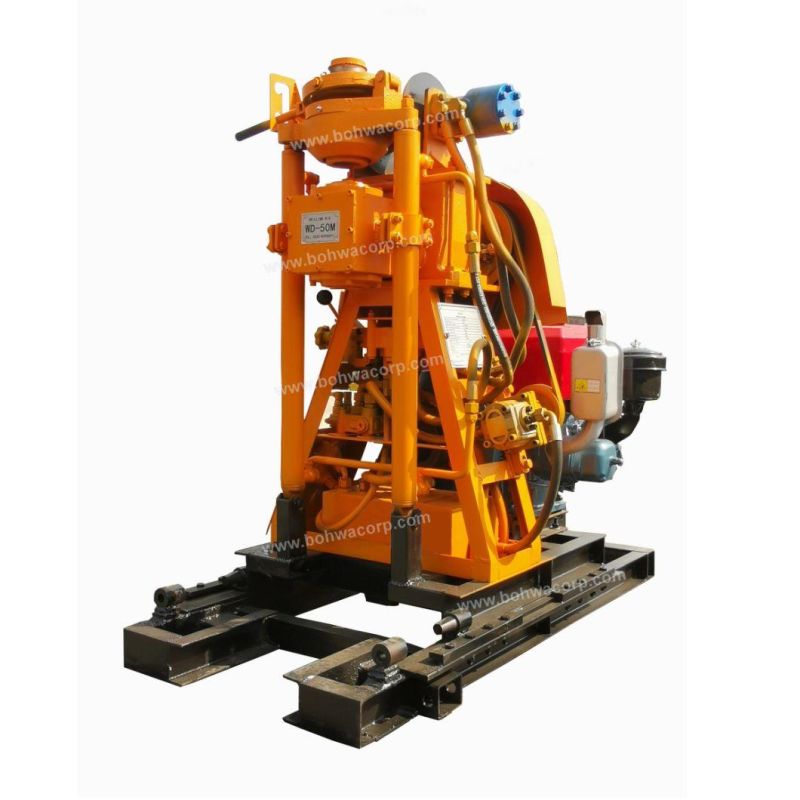

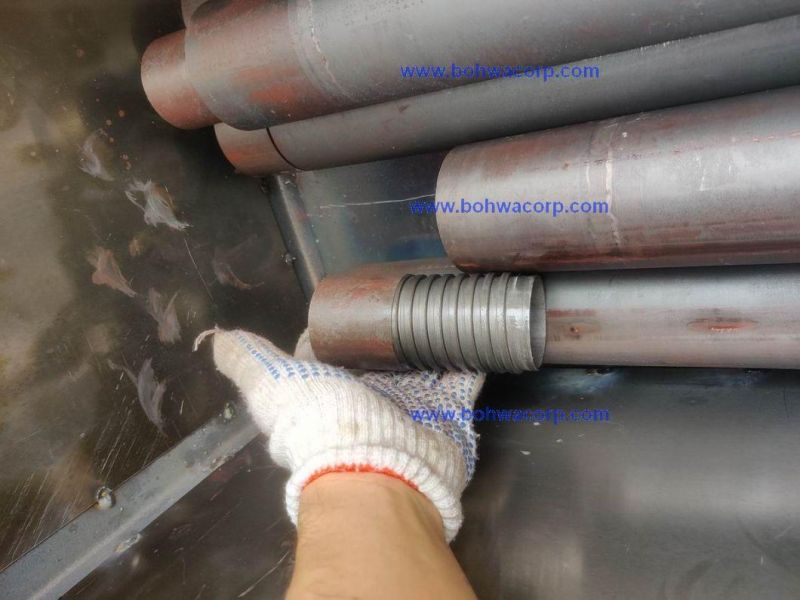

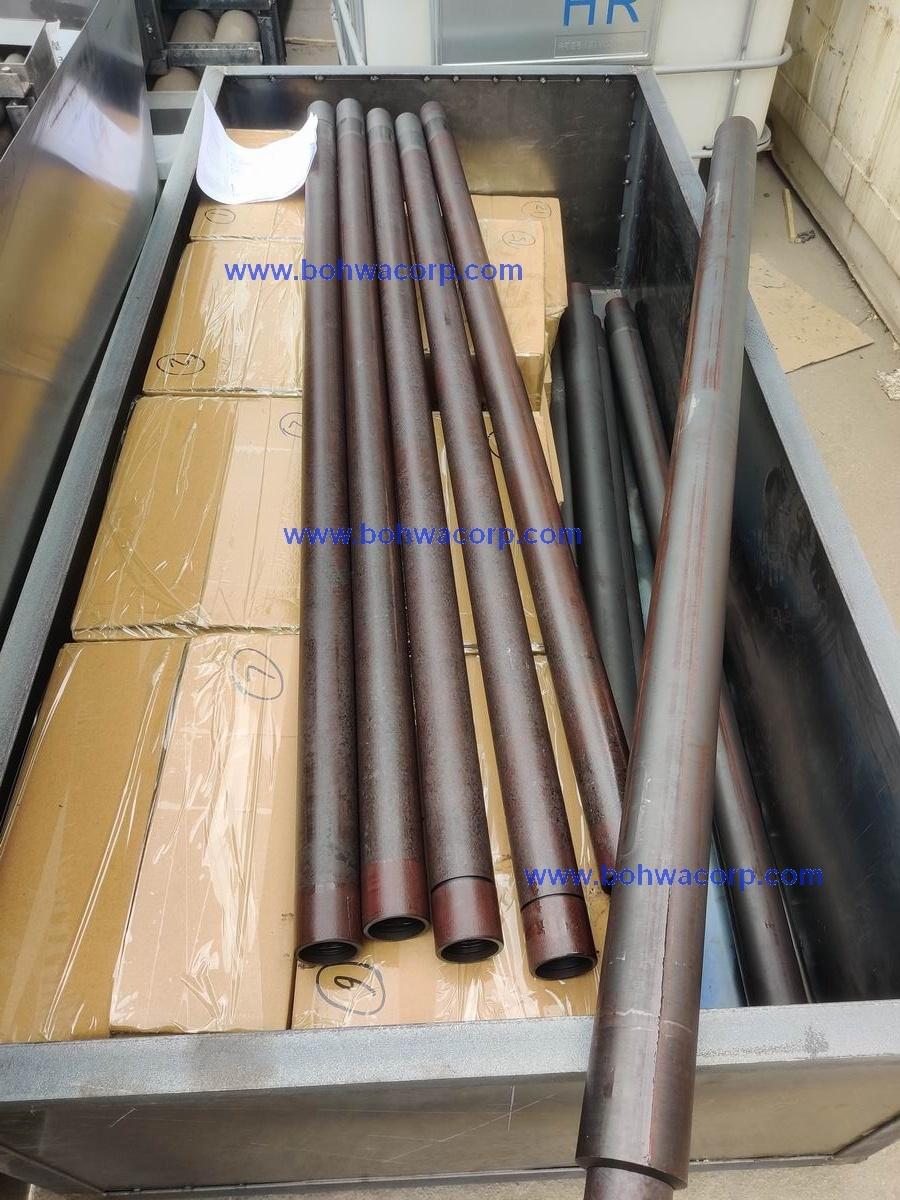

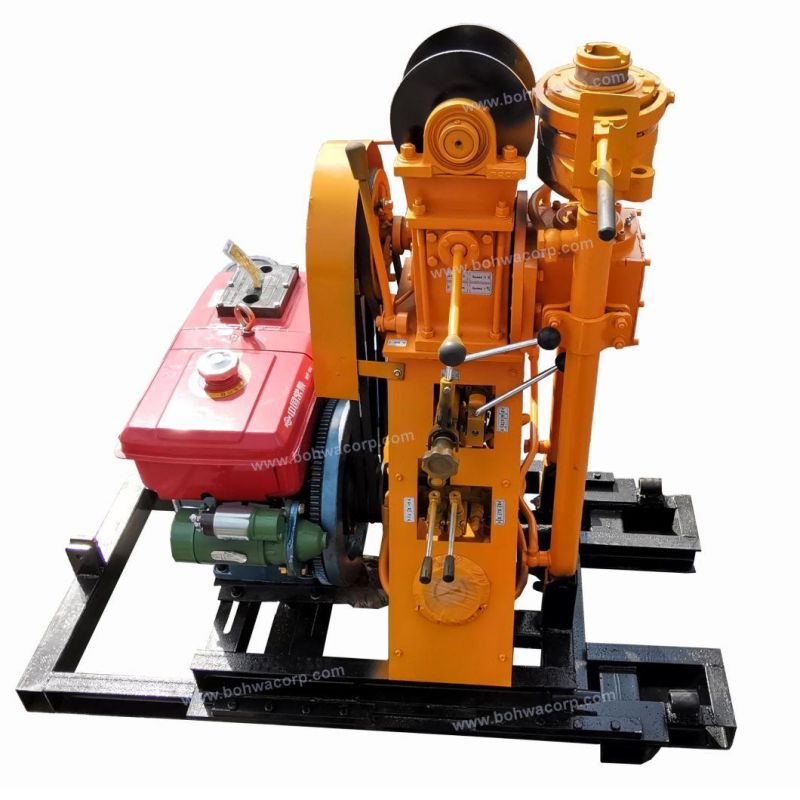

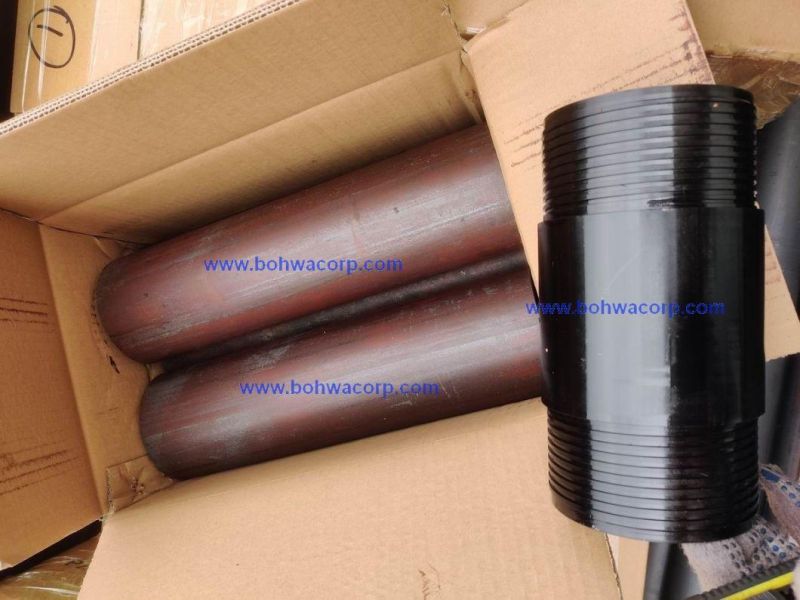

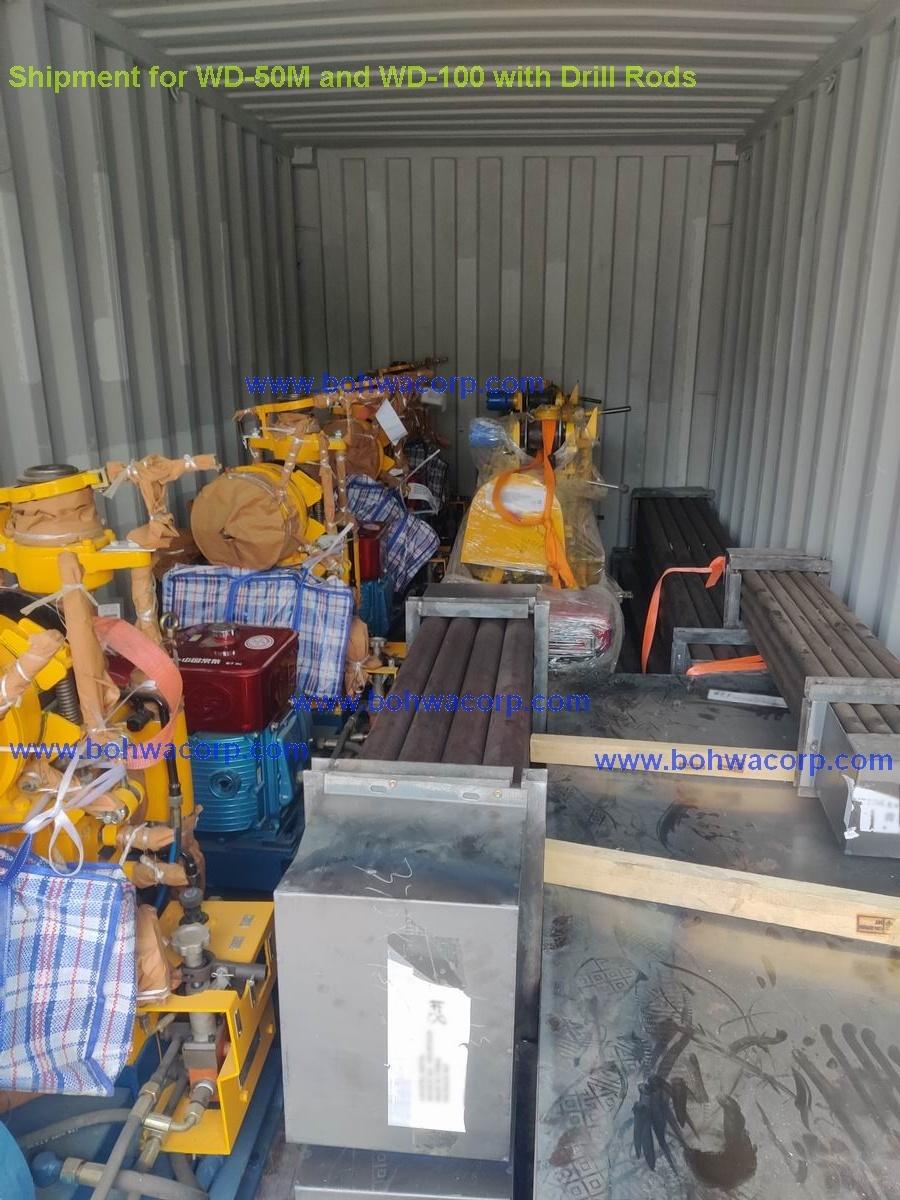

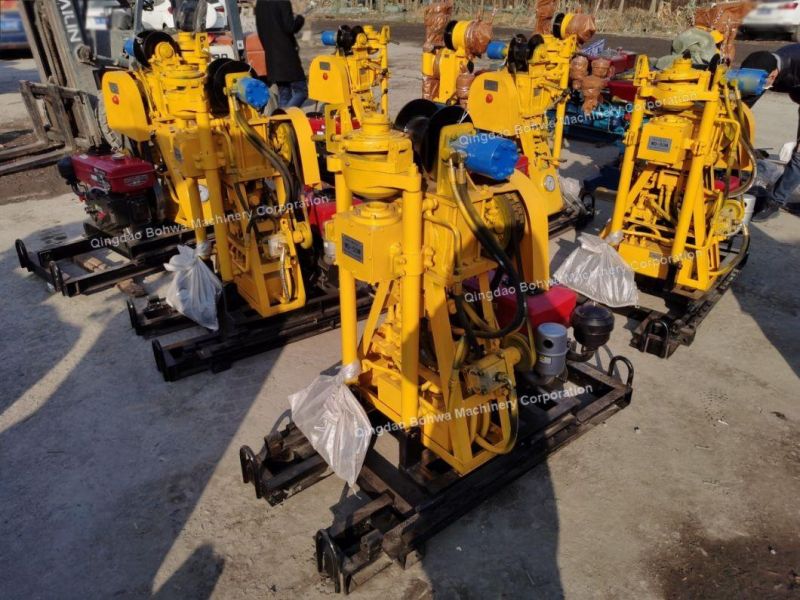

IV. Photos
Portable Mine Drilling Rig for Diamond Core Drill Rig

Portable Mine Drilling Rig for Diamond Core Drill RigPortable Mine Drilling Rig for Diamond Core Drill RigPortable Mine Drilling Rig for Diamond Core Drill RigPortable Mine Drilling Rig for Diamond Core Drill RigPortable Mine Drilling Rig for Diamond Core Drill RigPortable Mine Drilling Rig for Diamond Core Drill RigPortable Mine Drilling Rig for Diamond Core Drill Rig
