• Model NO.：QGZ,TRD-90,100,150
• Bit Type：Cone Bit
• Drilling Way：Impactor
• Type：Portable Turntable All Directional Drilling
• Drilling Angles：0-360 Degrees
• Working Air Pressure：0.5-0.7MPa
• Working Water Pressure：0.4-0.6MPa
• Shank Model：38X90mm
• Maximum Drilling Depth：Model 90: 35m; Model 150: 180m
• Drilling Hole Diameters：Model 90: 50-80mm; Model 150: 80-140mm
• Transport Package：Wooden Case
• Specification：1-5CBM
• Trademark：Bohwa
• Origin：Qingdao, China
• HS Code：8467110000
• Production Capacity：10sets,Month

Basic Info.

Model NO. QGZ/TRD-90/100/150 Bit Type Cone Bit Drilling Way Impactor Type Portable Turntable All Directional Drilling Drilling Angles 0-360 Degrees Working Air Pressure 0.5-0.7MPa Working Water Pressure 0.4-0.6MPa Shank Model 38X90mm Maximum Drilling Depth Model 90: 35m; Model 150: 180m Drilling Hole Diameters Model 90: 50-80mm; Model 150: 80-140mm Transport Package Wooden Case Specification 1-5CBM Trademark Bohwa Origin Qingdao, China HS Code 8467110000 Production Capacity 10sets/Month

Product Description

Engineering Pneumatic Rocks Drilling Rig for Vents/Water Sourcing/Patio Holes

I. Descriptions:

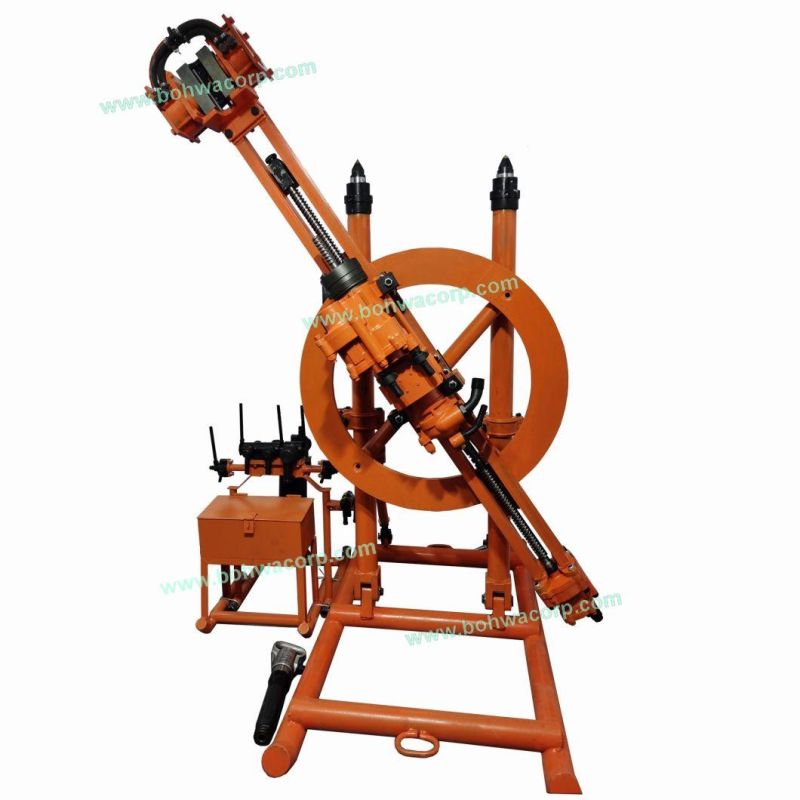

The pneumatic rock drilling machine of the disc drill frame is powered by compressed air, and is mainly used for fan-shaped or annular medium-depth blastholes in underground mining fields, and can also be used for underground bolts support.

Turntable rocks drilling machine is a medium and deep hole rock drilling tool powered by compressed air. The medium-deep hole rock drilling equipment powered by compressed air is mainly used for the stonework engineering of the upward fan-shaped or annular medium-deep hole drilling in the underground mining field. It is suitable for drilling with a diameter of 50-80mm and a drilling depth of 30m. Using a cross-shaped alloy drill bit with a diameter of 65mm, the average pure rock drilling speed can reach 680mm/min in F12-14 grade ore. The drill frame is simple in structure, easy to dismantle and transport, and works well.

The sizes of different models of turntables are suitable for 2.2mx2.2m-2.7mx2.7m /  2.5mx2.5m-3.0mx3.0m

II. Parameters for Model 90 and Model 150:

Parameters	Model 90	Model 150
Drilling Hole Diameter	50-80mm	80-140mm
Max. Drilling Hole Depth	35m	180m
Shank Model	φ38mmx90mm
Impact Force	≥225J	15000N
Impact Frequency	≥34HZ	60rpm
Output Torque of Drill Rod	≥140NM	1500-2000NM
Workable Tunnel Dimensions	2.2m x 2.2m - 3.0m x 3.0m	2.2m x 2.2m - 3.0m x 3.0m
Total Air Consumption	≤225L/s	120-350L/s
Drilling Angles	0-360 degrees	0-360 degrees
Mounted	No (Man Portable)	Two Wheels Trailer
Weight for Rocks Drilling Machine	95KG	450KG
Dimensions for Rocks Drilling Machine	890x360x305mm

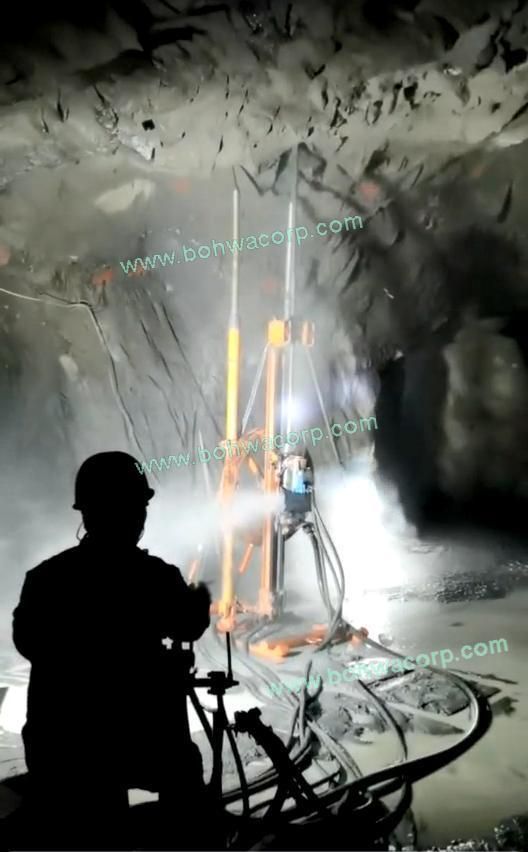

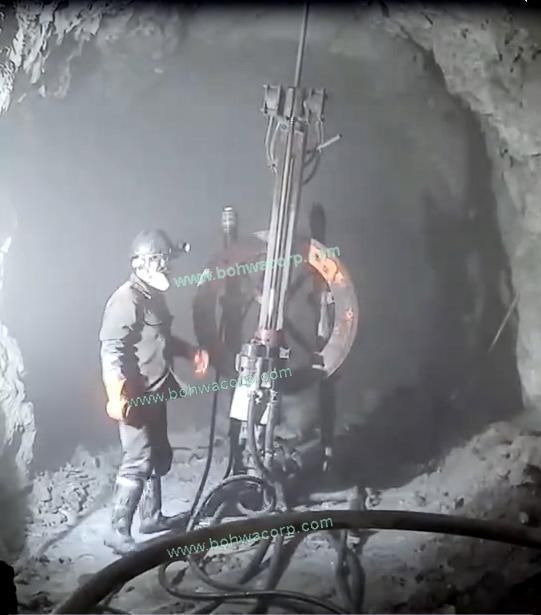

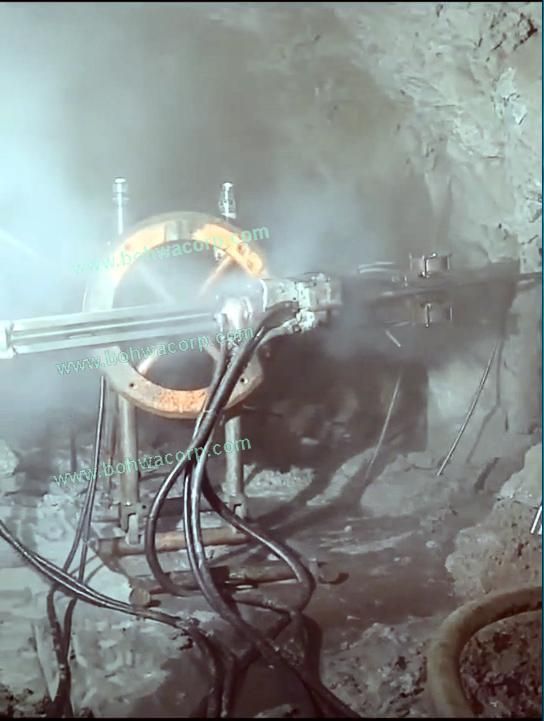

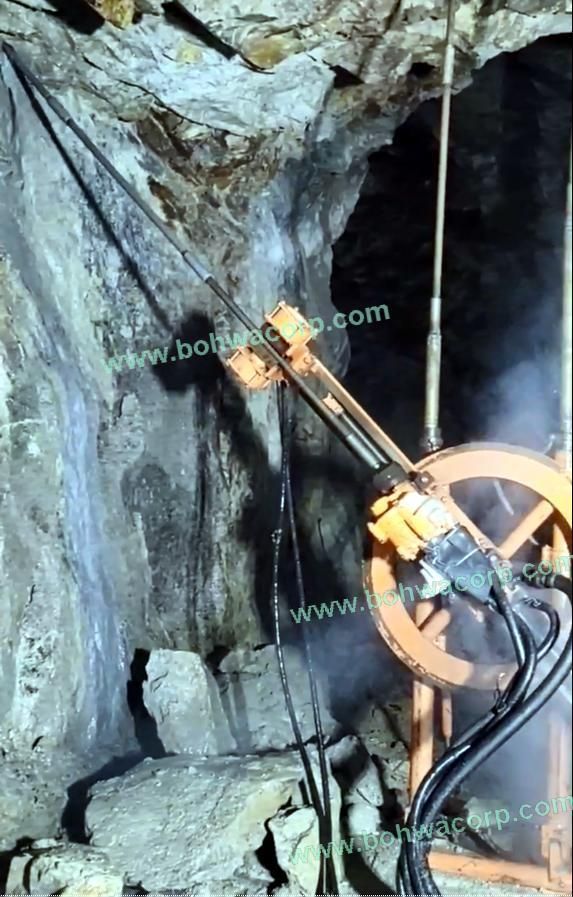

III. Photos for Tunnel Drilling

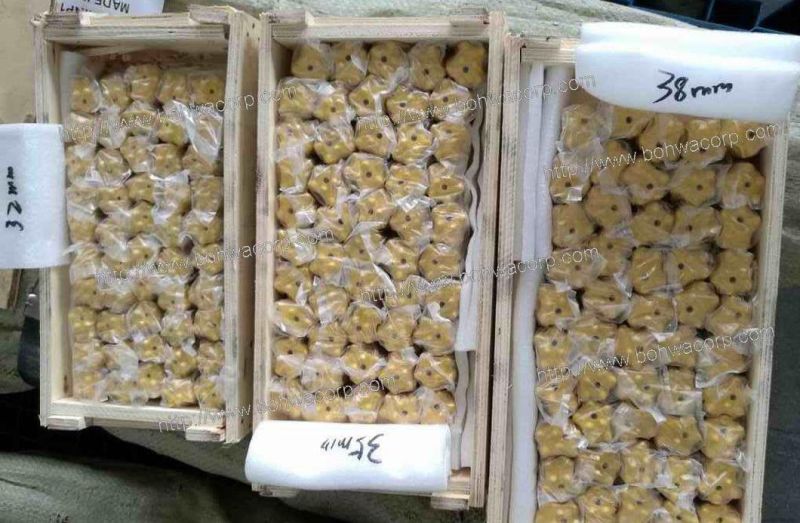

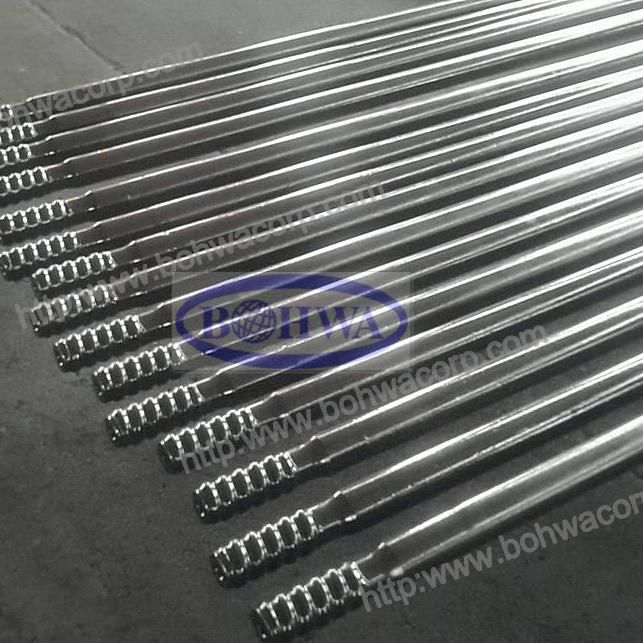

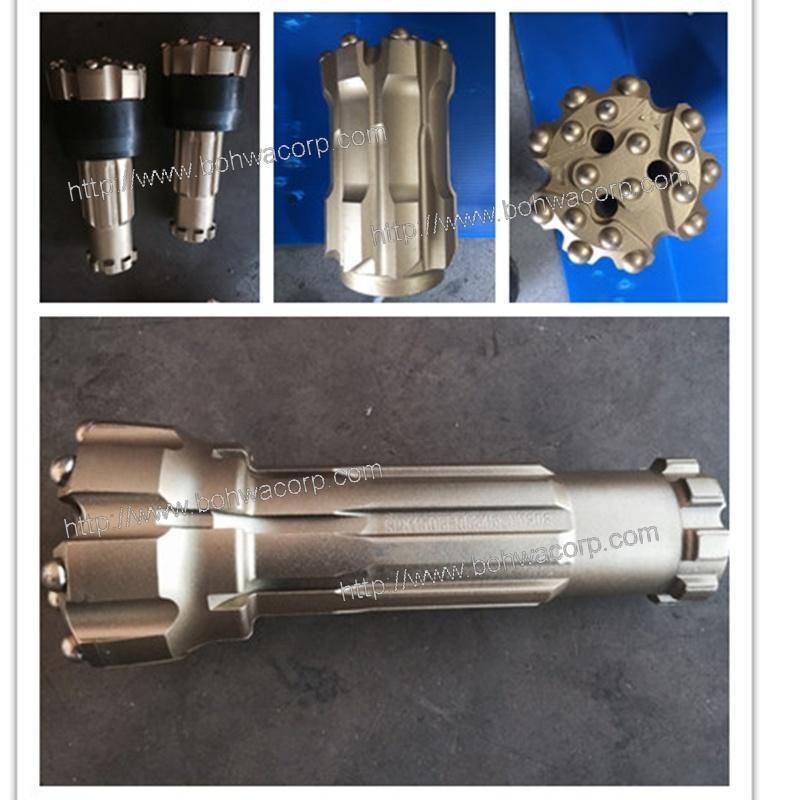

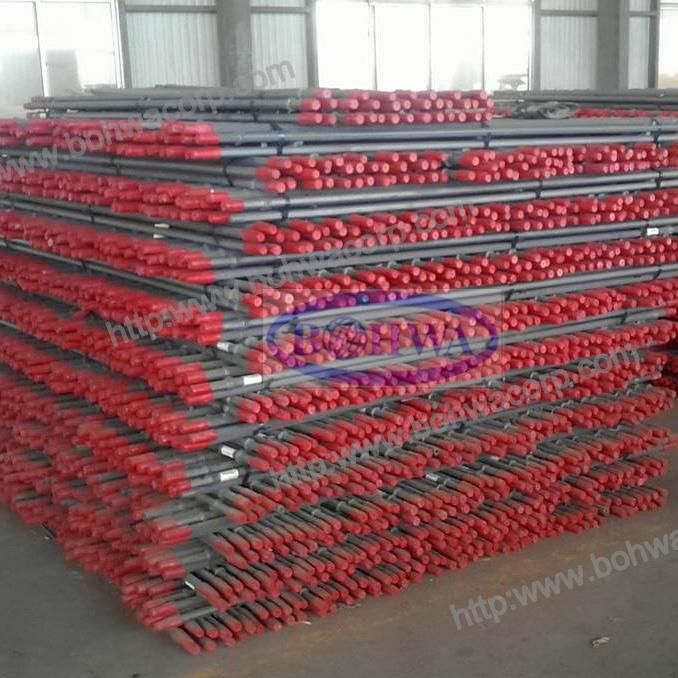

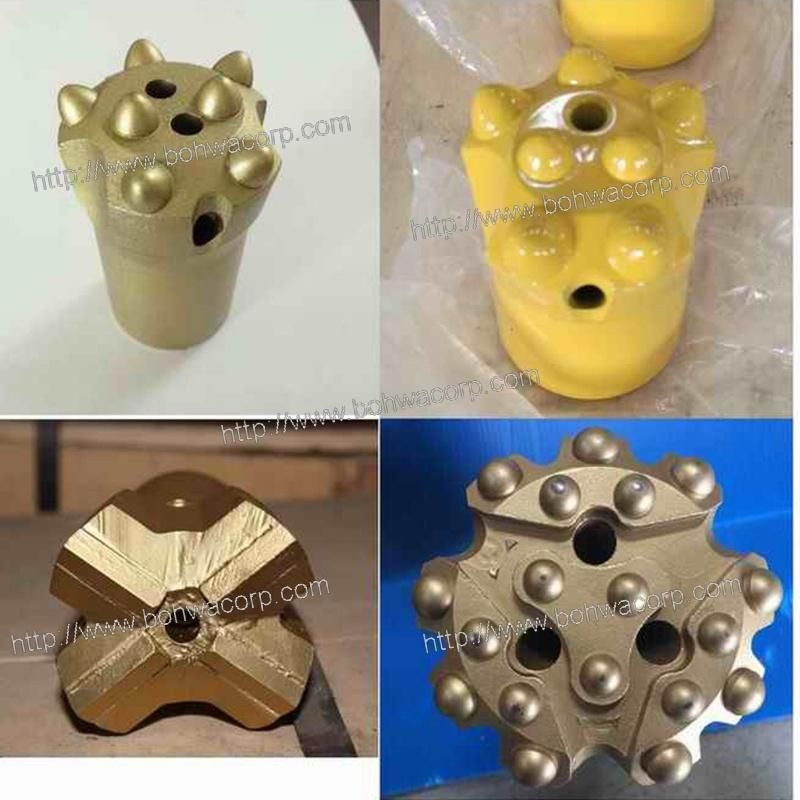

IV. Rocks Drilling Tools
