• Model NO.：DR-150
• Type：Crawler or Wheel
• Usage：Pile Driver,Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Drilling Depth：30m
• Drill Rod：Kelly Bar
• Machine Weight：30t
• Drill Tools：500-1800mm Drill Bit
• Power Head Speed：10-50rpm
• Engine Rated Power：151kw
• Transport Status Width：2800mm
• Transport Status Heignt：3400mm
• Chassis：Crawler
• Chassis Length：4200mm
• Track Width：600mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：12500mm*2800mm*3550mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-150 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Drilling Depth 30m Drill Rod Kelly Bar Machine Weight 30t Drill Tools 500-1800mm Drill Bit Power Head Speed 10-50rpm Engine Rated Power 151kw Transport Status Width 2800mm Transport Status Heignt 3400mm Chassis Crawler Chassis Length 4200mm Track Width 600mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 12500mm*2800mm*3550mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details
The company's products have passed ISO, CE, SGS, CQC and other product quality system certifications, and the products are exported to 26 countries overseas. The maximum depth of this rotary drilling rig can reach 30 meters, and the drilling diameter is 500-1600 mm. For your needs, please feel free to contact me, thank you for browsing!





Parameter

model	DR-150
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-40m
Diamension (mm)	12500X2800X3550mm
Total weight (t)	30T
Power head max output torque (KN.m)	150KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	158KW ,cummins ,water cooling ,turbo charger

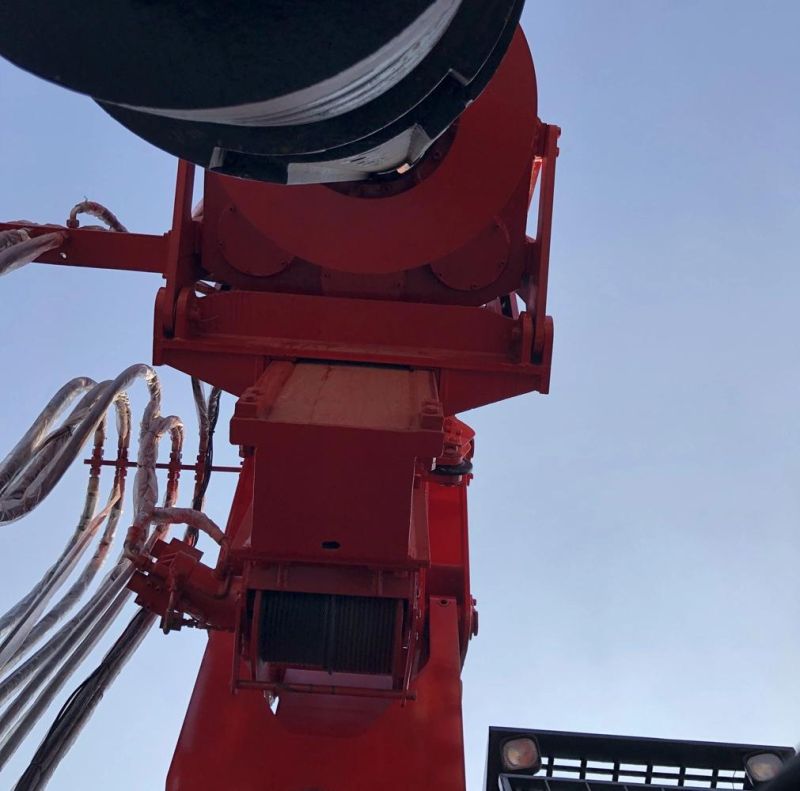

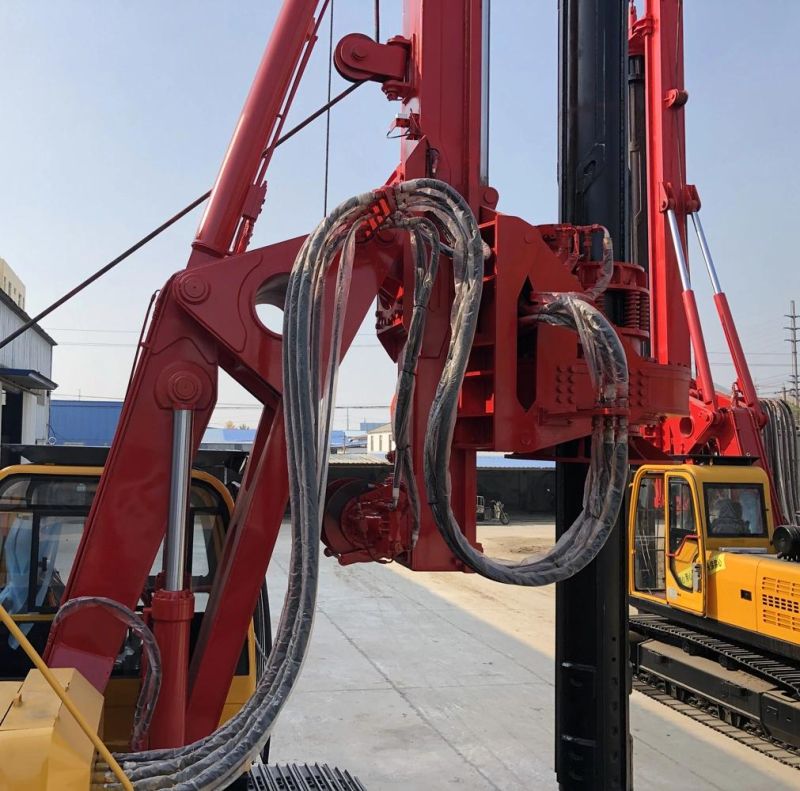

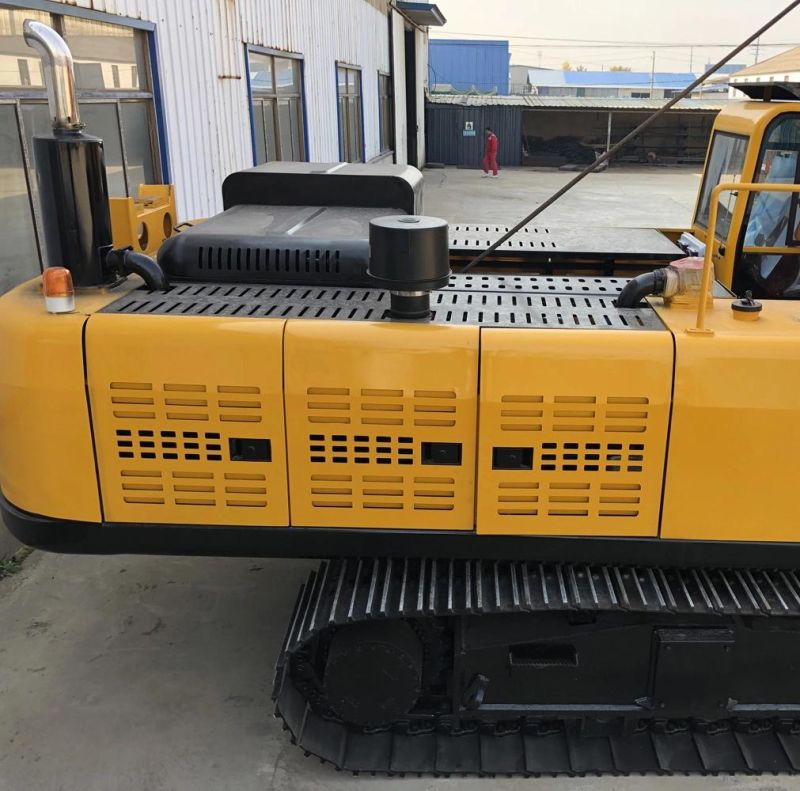

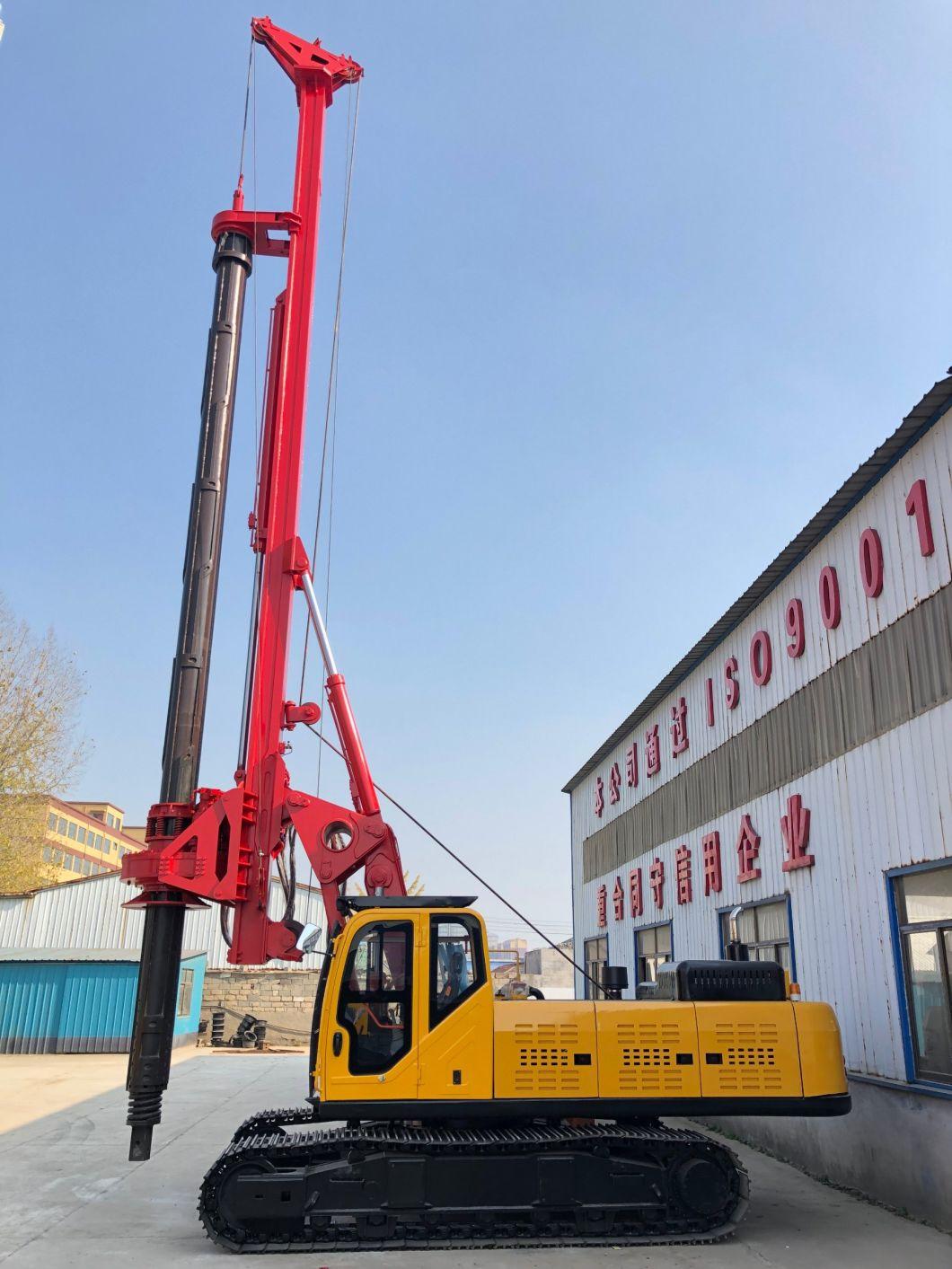

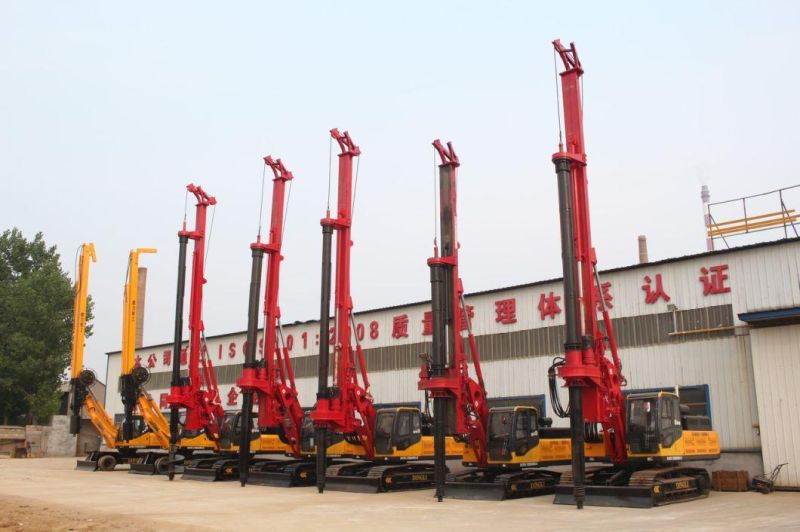

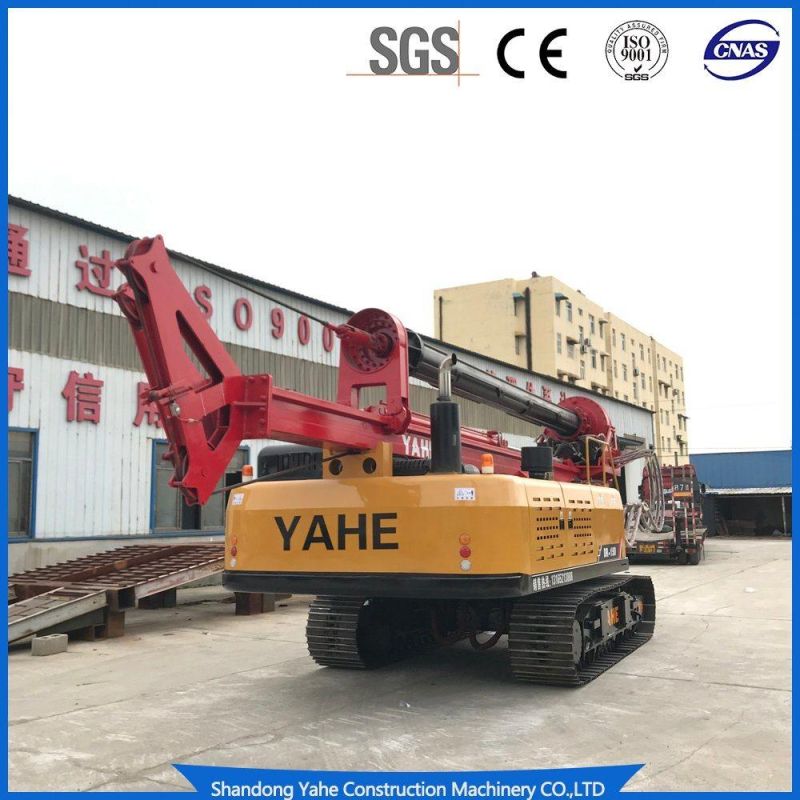

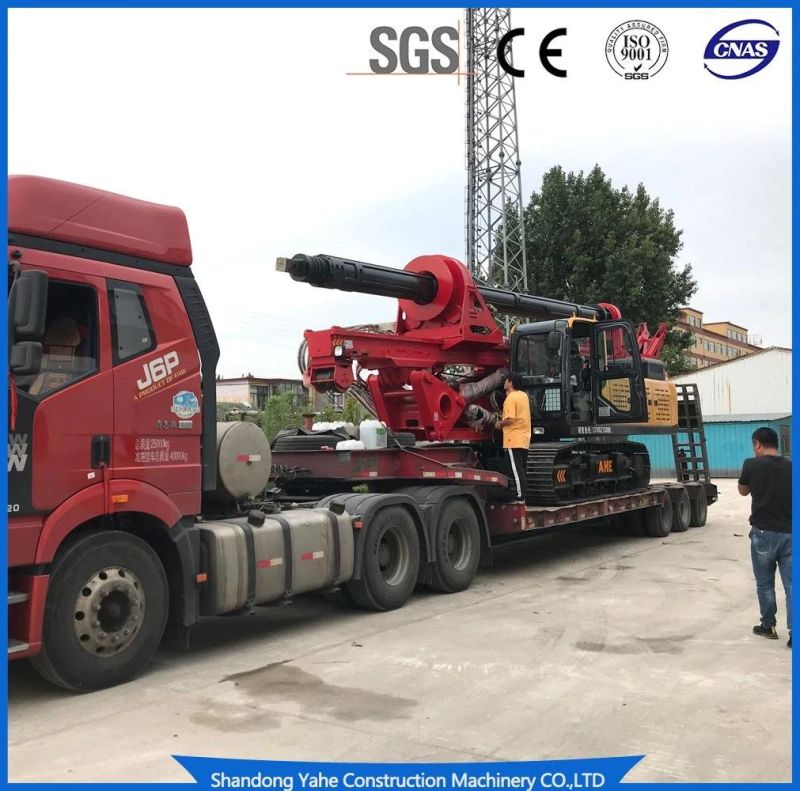

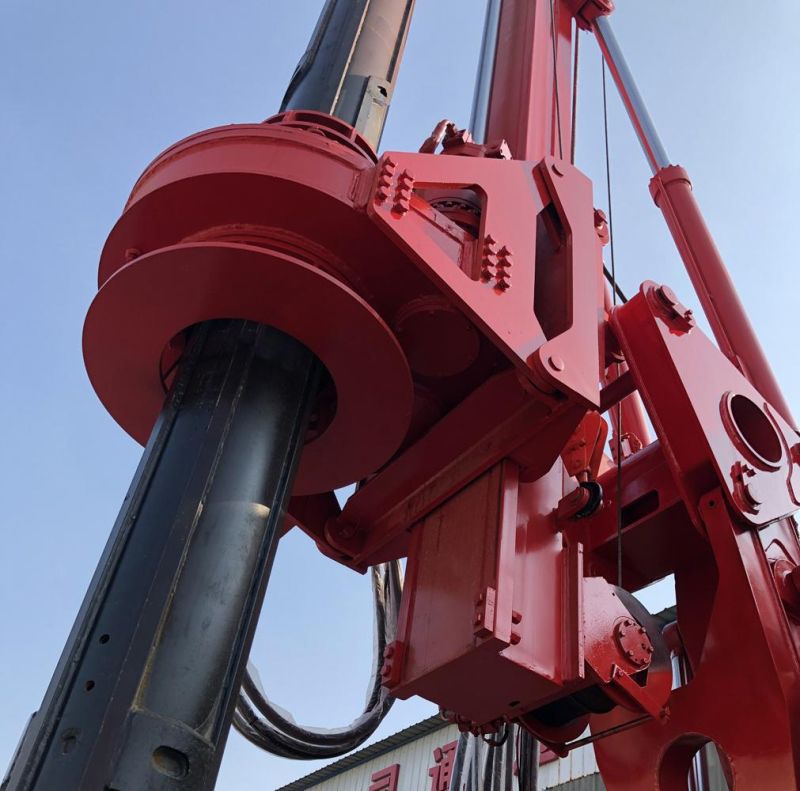

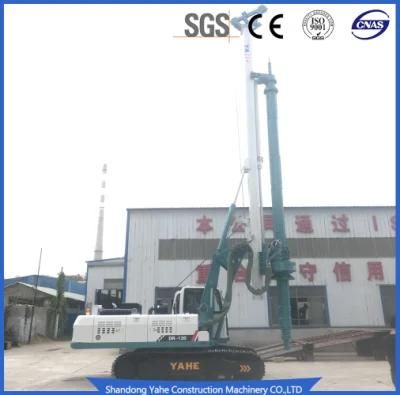

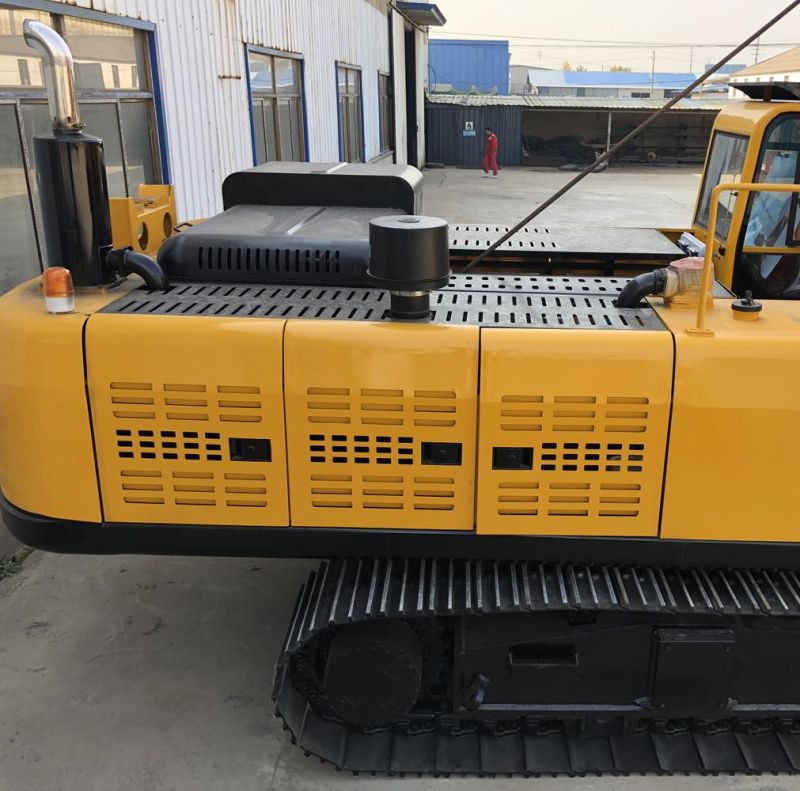

Machine Photos






Certification




 Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.



 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
