Low Price Bore Hole Mining Drill Rig for Quarry Hc725b1

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：80-105mm
  • Drill Hole Depth：20-25m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Rock Hardness：F=6~20

Base Info

  • Model NO.：HC725B1
  • Walking Speed：2.5km,H
  • Working Pressure：0.6~1.6 MPa
  • Air Consumption：7-12m3,Min
  • Rotate Speed：0-90rpm
  • Drill Rod：Dia.60*2000mm
  • Diesel Engine：Professional Custom Weichai Brand
  • Power Type：Diesel
  • Power：40kw
  • Type：DTH Drilling Rig
  • Weight：3200kg
  • Dimension：4250*1980*2260mm
  • Transport Package：Nude Packing
  • Trademark：HONGWUHUAN
  • Origin：China
  • HS Code：8414809090
  • Production Capacity：300sets,Month

Description

ModelHC725B1Rock hardnessf=6-20Diam. of the hole(mm)83-105Depth of the hole(m)25Drill bit(mm)dia.90Air consumption(m3/min)7~12Working pressure(Mpa)        0.6-1.6                                      Main motor power(kw)40kw(weichai brand- professional custom for HC725)Traveling speed(km/h)2.5Max.climbing ability(.)25Rotation torque(N.m)              900N.mRotation speed(rpm)0-90Drill rod length(mm)2000Weight(kg)3000Dimension(mm)4250*1980*2260
CompressorStyleDouble screw, single stage compression, PortableAir Delivery(m³/min)10Rated Working pressure (Bar)13Range of Working pressure(Bar)5-13Lube Capacity(L)60Interface Dimension,QuantityR1.1/2" x 1,R1"x1Tire Specifications6.5-16x2Tire Pressure(Kpa)50-600Elevation Work Max.(m)3000L×W×H(mm)3220×1850×1850Weight2450Noise dB(A)80-85Diesel EngineModel 6BT5.9 Style Cooled stroke 4 direct injection super chargeRated Power(Kw/Hp) 110/150Rated Speed(rpm) 2500 or 2400Coolant Volume(L) 25-28Engine Oil Capacity(L) 12-18Fuel Tank Capacity(L) 120-16080% Load oil wear (L/h) 17-18

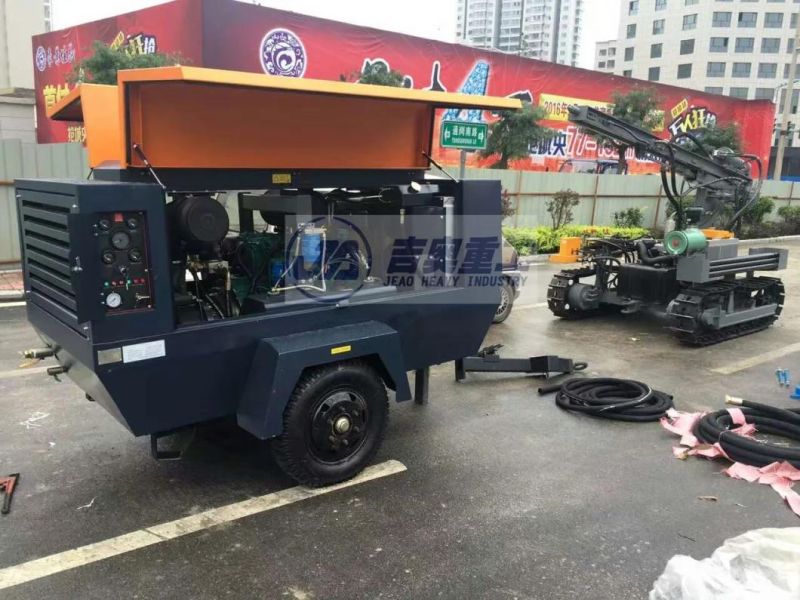

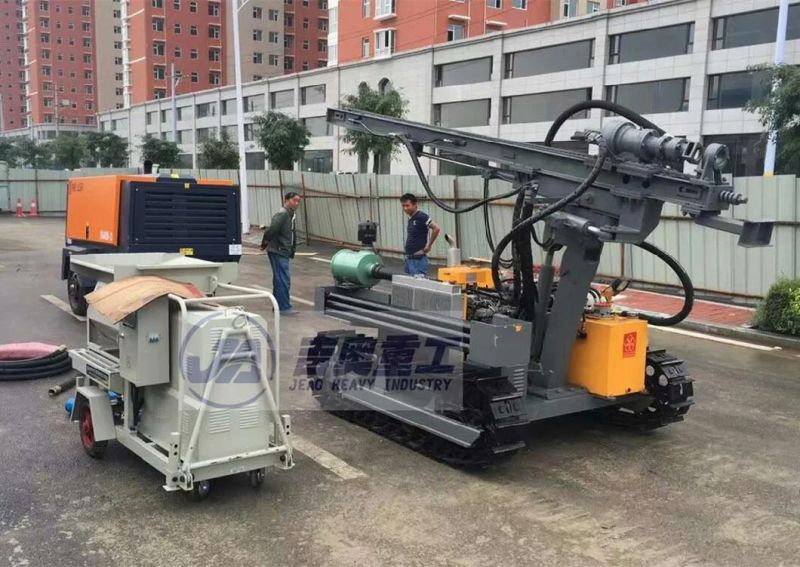

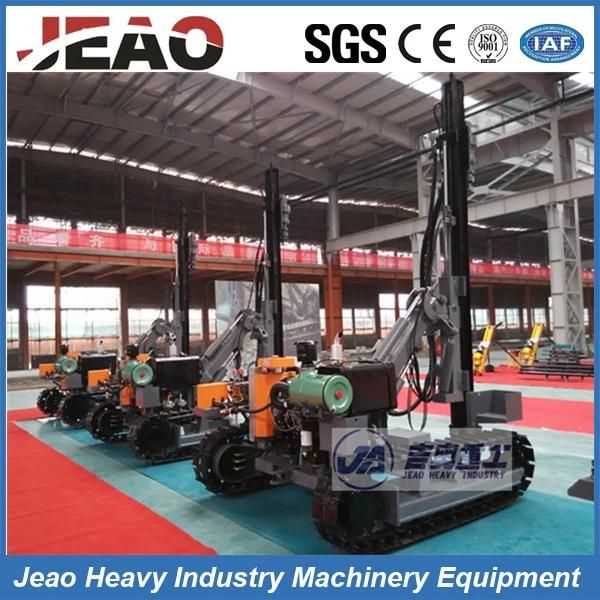

Photo for HC725B1 Bore Hole Mining Drill Rig for Quarry

Low Price Bore Hole Mining Drill Rig for Quarry Hc725b1
Low Price Bore Hole Mining Drill Rig for Quarry Hc725b1
Low Price Bore Hole Mining Drill Rig for Quarry Hc725b1

About us :

We are manufactures a wide range of machineries, such as all kinds of piston air compressors, screw air compressors, pneumatic rock drills, pneumatic and hydraulic down hole drills, breakers, drilling wagons etc., more than 300 varies of items in 8 product lines. The annual production capacity is over 200,000 units. Having implemented a name brand strategy that emphasizes growing our trademark globally, we have built up extensive sales, service and promotion networks. We have over 800 wholesalers around China as well as overseas market, which have exported products to Europe, South America, Middle East, Southeast Asia, South Africa etc.
