Drilling Rig

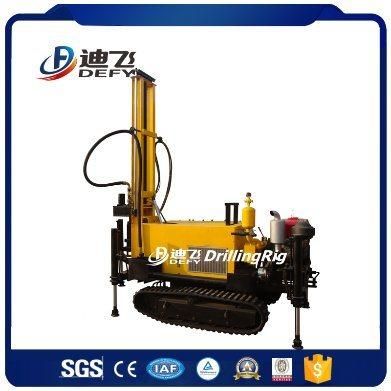

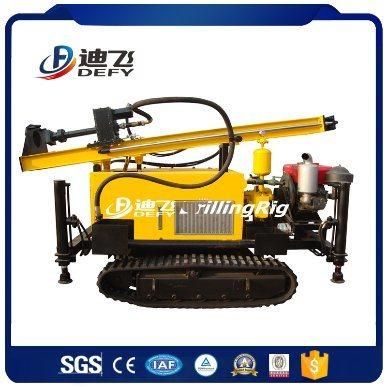

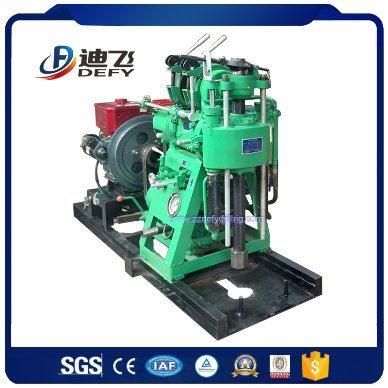

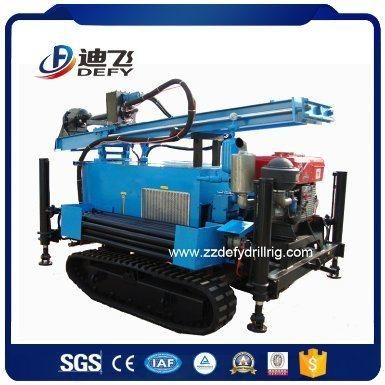

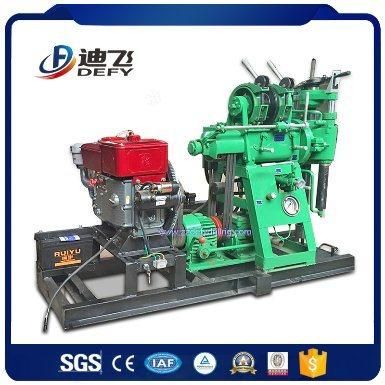

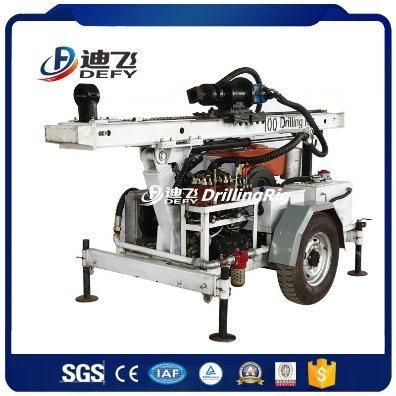

High Efficiency Trailer Mounted Geotechnical Drilling Rig Machine

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Certification:ISO 9001:2008, BV&ISO
  • Condition:New
  • Motor:AC Motor
  • Drill Hole Diameter:75-400 mm
  • Drill Hole Depth:0-400 M
  • Bit Type:Diamond Bit

Base Info

  • Model NO.:XY-400F
  • Drilling Way:Rotary
  • Product Name:Drilling Rig Machine
  • Model:Xy-400f
  • Application:Wells, Geological Core etc.
  • Max Drilling Depth:400 M
  • Drilling Diameter:75-400 mm
  • Dia. of Drill Rod:42,50,60,76 mm
  • System:Hydraulic
  • Engine:Diesel
  • Power:24 HP
  • Mud Pump:Bw200
  • Walking Type:Trailer Mounted
  • Dimension:3980*1950*2750mm
  • Weight:3000kg
  • Lifting Capability of Single Wire:3000kg
  • Warranty:1 Year for Main Machine
  • Transport Package:Standard Wooden Case
  • Specification:Wheels Type Drilling Rig
  • Trademark:DEFY
  • Origin:China
  • HS Code:84304900
  • Production Capacity:600 Sets Drilling Rigs Per Month


Integrative drill tower;

Easy to transport.








Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.we design,produce and sell.We master the core
      technology, and constantly adjust our products according to the market trend and customer
      feedback, ensure product quality.

Q2: How long is your delivery time?
A2: It is according to the model and quantity.
      Generally it is 3-5 days if the machines are in stock.
      It will be 15-30 days if you want to customize the machines.

Q3: What do I need to do after payment?
A3: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
      b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick
           up the goods; All documents for customs clearance will be sent to you by international
           express after shipment.

How to choose a suitable drilling rig?

1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?

2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.

3. Any requirements to hole diameter?

---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it
inversely proportional.

4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.

Based on the above information, Our experienced engineers will help you recommend suitable
machine and price. If you have special demands, please tell us ahead.

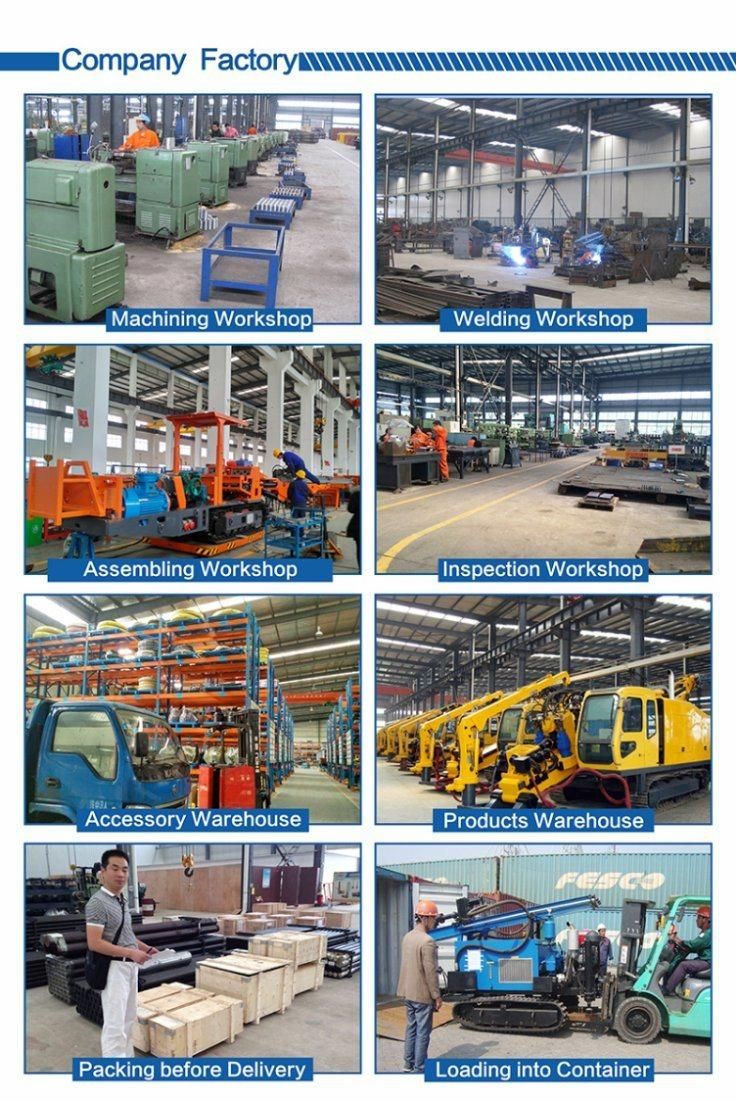

About Us
