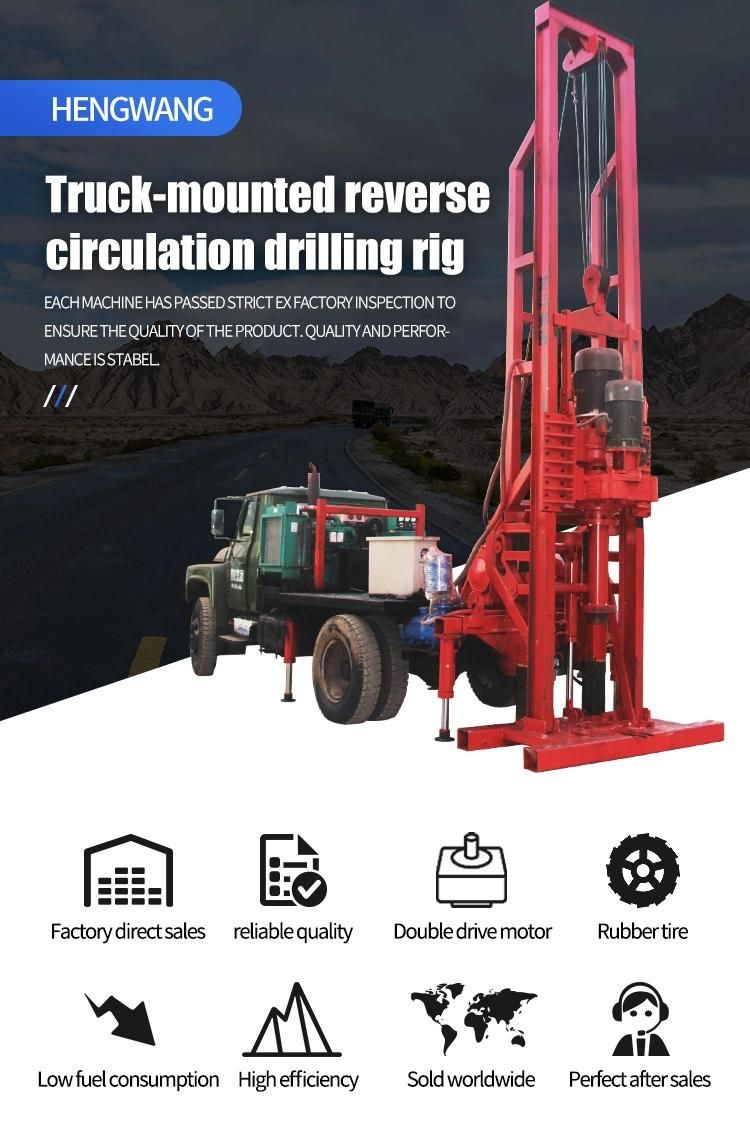

Truck Mounted Reverse Circulation Drilling Rig Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：500-1500mm
- Drill Hole Depth：200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：RC-200
- Drilling Way：Rotary
- Type：Truck Mounted
- Name：Truck Mounted Drilling Machine
- Drill Diameter：500-1500mm
- Drill Depth：200m
- Geology：Soil, Rock, Sand, Clay, etc
- Diesel Engine：132kw
- Drill Pipe：Dia.168mm
- Drill Pipe Length：3m
- Drive Chassis：4X4
- Weight：8500kg
- Size：8550*2490*4000
- Transport Package：Container
- Specification：8550*2490*4000
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Single weight 15T
Detailed Images Reverse circulation drilling rig for sale/deep water well drilling rig/mobile drilling rig1.Special drilling soil 2.Big hole , drill diameter is 450mm-2000mm 3.Drill depth :200m
Product Usage Reverse circulation drilling rig for sale/deep water well drilling rig/big hole water well drilling rig The reverse circulation pump unit is 3PNL and 6BS pump, can be equipped with hydraulic step displacement. In addition to the impact of the drill tip wear-resistant materials, the remaining 50mm welded steel plate, can also be equipped with a variety of specifications drill. It is suitable for complex foundation engineering construction, such as soil layer, cemented gravel and rock ,and it is widely applied to bridge bored pile and underground diaphragm wall foundation engineering.
Our Company
Certifications Our company have passed ISO,CE ,SGS ,BV ,TUV ,etc certificates .
Exhibition
Detailed Images Reverse circulation drilling rig for sale/deep water well drilling rig/mobile drilling rig1.Special drilling soil 2.Big hole , drill diameter is 450mm-2000mm 3.Drill depth :200m
Product Usage Reverse circulation drilling rig for sale/deep water well drilling rig/big hole water well drilling rig The reverse circulation pump unit is 3PNL and 6BS pump, can be equipped with hydraulic step displacement. In addition to the impact of the drill tip wear-resistant materials, the remaining 50mm welded steel plate, can also be equipped with a variety of specifications drill. It is suitable for complex foundation engineering construction, such as soil layer, cemented gravel and rock ,and it is widely applied to bridge bored pile and underground diaphragm wall foundation engineering.
Our CompanyCertifications Our company have passed ISO,CE ,SGS ,BV ,TUV ,etc certificates .
Exhibition
