Xy-1A-4 Portable Hydraulic Geotechnical Exploration Core Drilling Rig
Changsha Miracleland Import & Export Co., Ltd.- After-sales Service:1 Year
- Warranty:1 Year
- Certification:ISO 9001:2008
- Condition:New
- Motor:Diesel Engine
- Drill Hole Diameter:76-300mm
Base Info
- Model NO.:XY-1A-4
- Drill Hole Depth:100-180m
- Bit Type:Diamond Bit
- Drilling Way:Rotary
- Drill Pipe Diameter:42mm, 50mm, Aw, Bw, Awj, Bwj
- Usage:Ore, Geotechnical, Water Well, Coal
- Power Type:Diesel
- Type:Core Drilling Rig
- Transport Package:in Plywood Case
- Specification:1A-4
- Trademark:jingtan
- Origin:Changsha, Hunan, China
- HS Code:8430691900
- Production Capacity:20 Sets,Month
Description
Overview

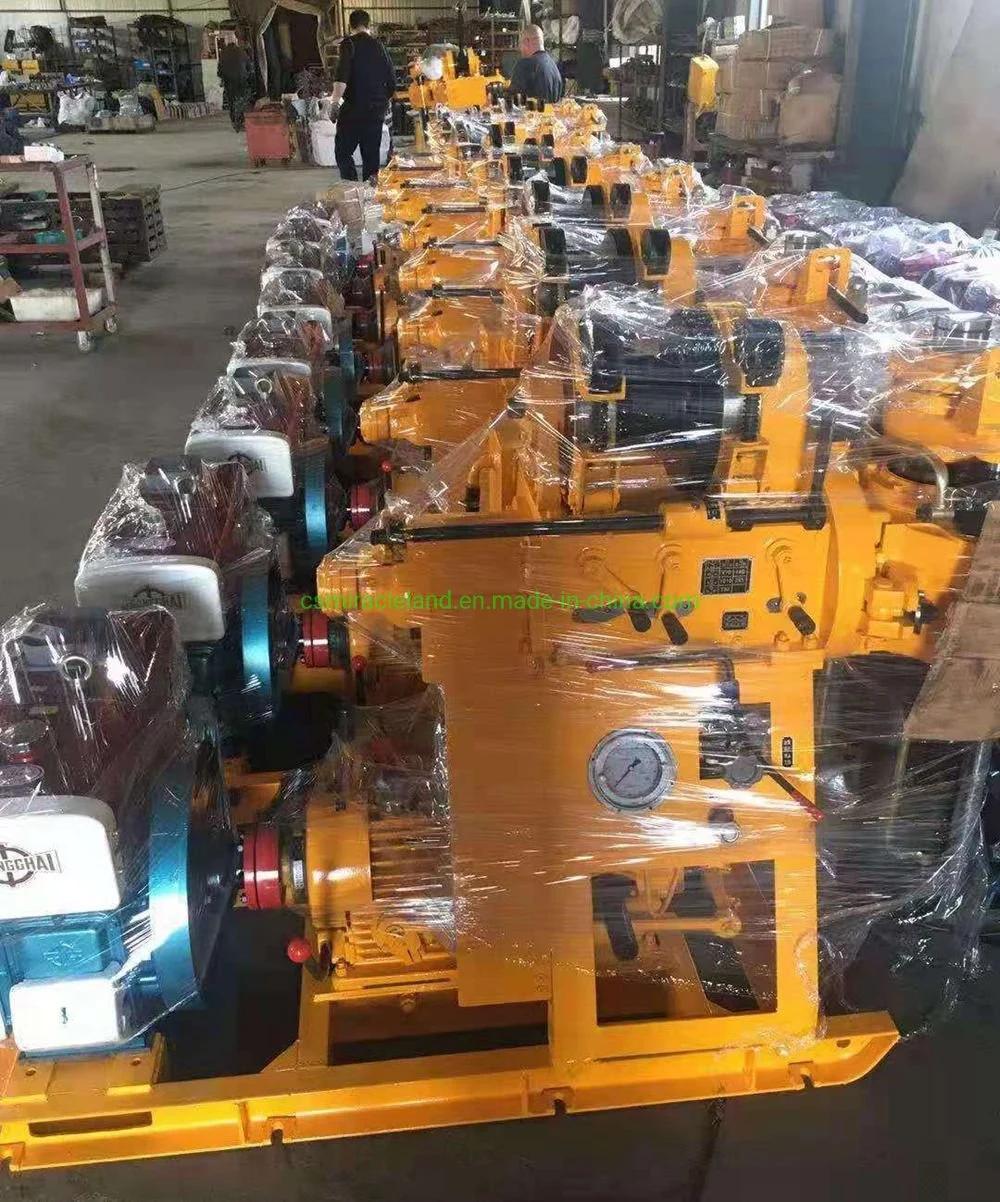

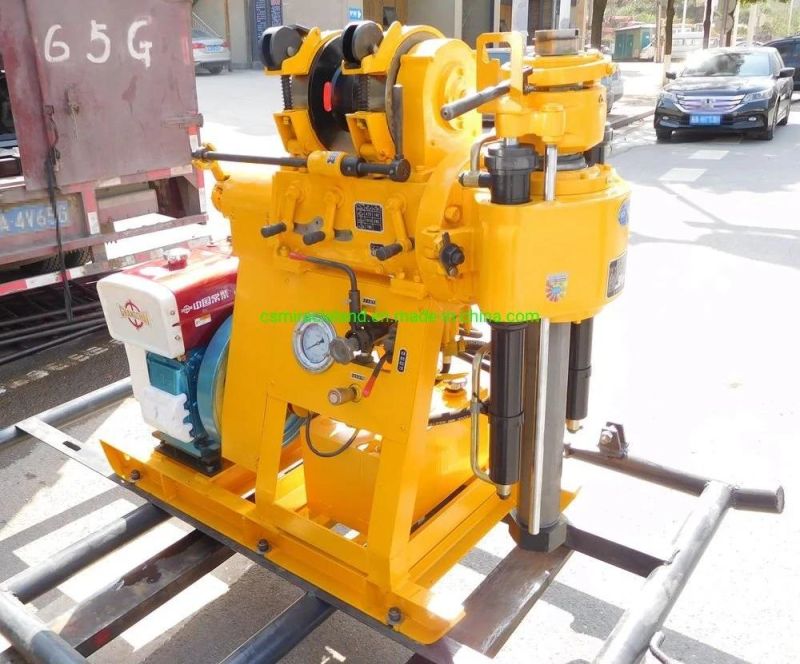

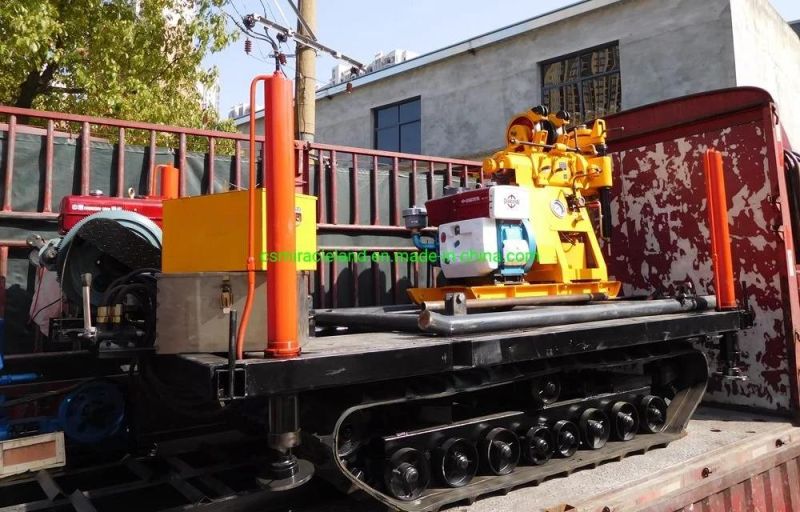

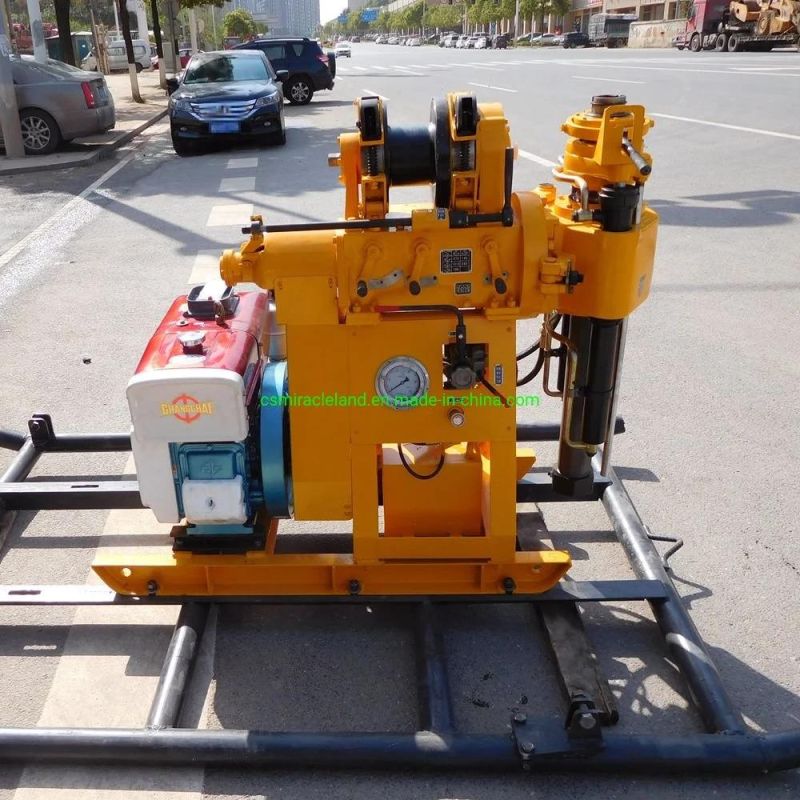

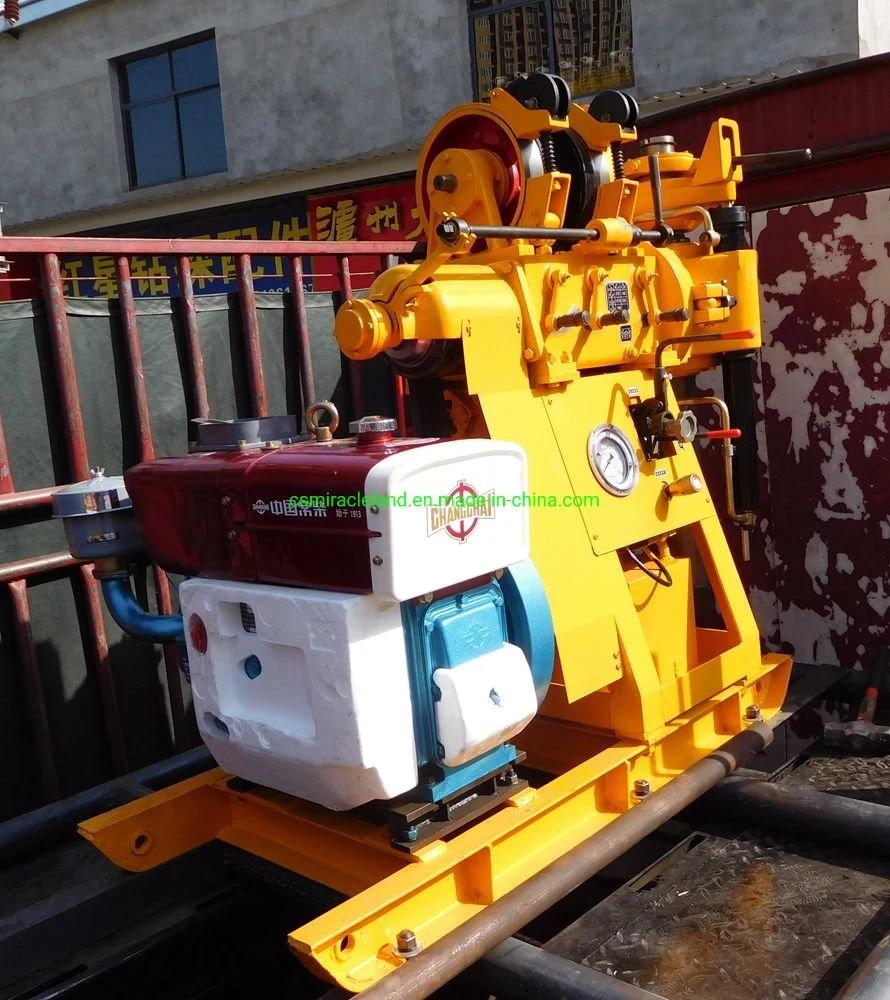

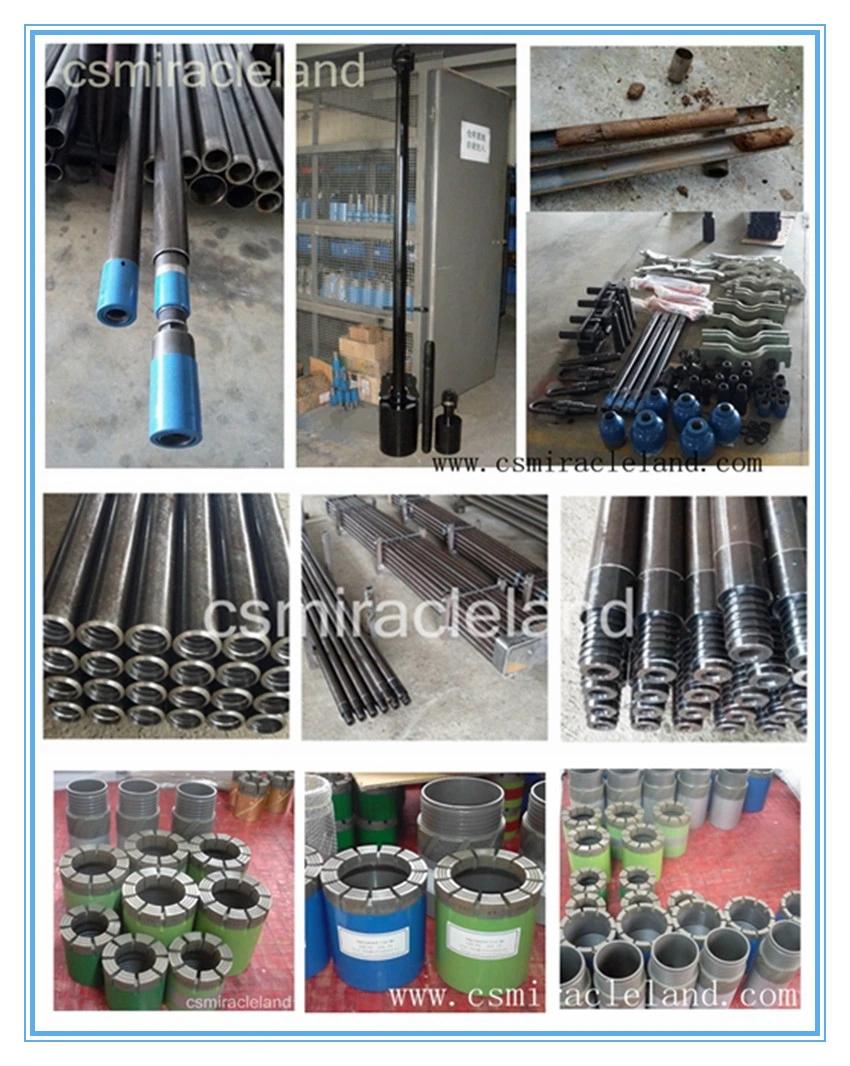

Product Description Drilling depth 100, 180 m initial hole dia.max. 150 mm Final hole dia. 75, 46 mm Rod dia. 42 mm Drilling angle range 90-75° Overall dimensions(L*W*H) XY-1A-4 1700X780*1274 mm Weight(exclude power unit) XY-1A-4 620 Kg Stroke XY-1A(YJ) 350mm 2.Swivel head Spindle speed 1010,790,470,295,140 r/min Spindle stroke 450 mm Spindle speed as lifting up no load max 3 m/s Spindle speed as lowering down no load max 4 m/s Feeding pressure max. 23 KN Lifting capacity(single line)max 11 KN 3.Hoist Lifting capacity(single line)max 15 KN Drum speed 121, 76, 36 r.min Drum circumferetial velocity(two layers) 1.465, 0.733, 0.331 m/s Drum dia 140 mm Cable dia 9.3 mm Spool capacity 35 m Brake dia 252 mm Brake band broad 50 mm 4.Water pump Model Horizontal reciprocating single-acting piston pump Displacement max. 95L/min Working pressure max. 1.2 Mpa Continuous working pressure 0.7 Mpa Suction pipe dia. 32mm Discharge pipe dia. 25mm 5.Oil pump Model YBC-12/125 Working pressure 12.5 MPa Volume of flow 8 ml/r Speed 800-2500 r/min 6.Power unit Diesel engine S1105 13.2KW Rated speed 2200 r/min Related Photos
Product Parameters
1.Drilling capacity
