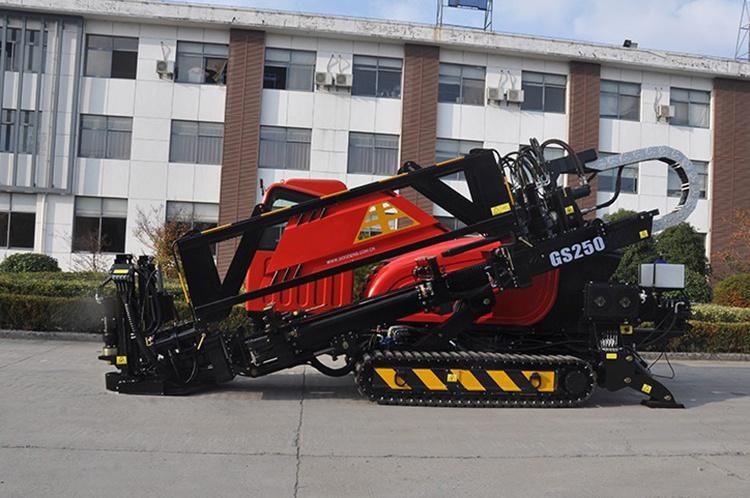

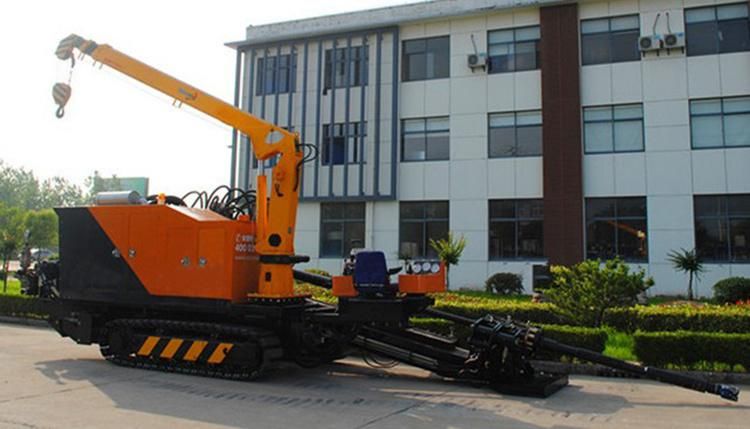

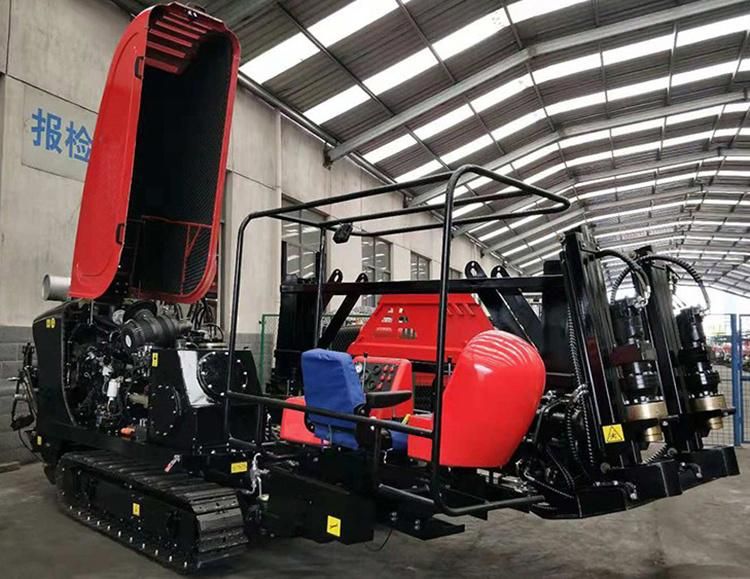

2000m Trenchless Intelligence Portable Horizontal Directional Drill Rig

Henan Yugong Machinery Co., Ltd.

After-sales Service：2 Years
Warranty：2 Years
Certification：CE, ISO 9001:2000, ISO 9001:2008
Condition：New
Drill Hole Diameter：>300mm
Drill Hole Depth：>150m

Base Info

Model NO.：YG-HD15
Bit Type：Diamond Bit
Drilling Way：Rotary
Type：Crawler
Dimensions：5700*1820*2400mn
Product Name：Horizontal Directional Drilling Rig
Maximum Torque of Power Head：5000n.N
Power Head Speed：0-180r,Min
Drill Pipe Diameter：60mm
Angle of Entry：10-23°
Transport Package：Import&Export Standard Wooden Cases
Specification：5700*1820*2400mn
Trademark：YG
Origin：Henan, China
HS Code：8430411900
Production Capacity：500PCS,Month

Description

ModelYG-160AYG-180YG-280YG-320YG-320AEngine rated power100KW97KW160KW140KW/160KW160KWPush and pullCylinderMotorMotorCylinderMotorMaximum drag/feed force160/100KN180/180KN280/280KN320/320KN320/320KNMaximum torque of power head 5000N.n 6000N.n 10000N.n 12000N.n 12000N.nPower head speed 0-180r/min 0-140r/min 0-120r/min 0-140r/min 0-140r/minMoving speed of power head 30m/min 20m/min 20m/min 20m/min 20m/minMaximum reaming hole diameter Φ600mm Φ600mm Φ750mm Φ800mm Φ800mmDrill rod length (single) 3m 3m 3m 3m 3mDrill pipe diameter Φ60mm Φ60mm Φ73mm Φ73mm Φ73mmDrill pipe diameter 10-23° 10-22° 10-23° 10-20° 10-20°Maximum mud flow 160L/min 250L/min 320L/min 320L/min 320L/minMaximum mud pressure 100bar 80bar 80bar 80bar 80barOverall quality 6700kg 8500kg 12500kg 11500kg 11200kgDimensions (length*width*height)

5700*1820*2400

6400*2270*2340

7100*2260*2450

7100*2250*2450

7662*2162*2450

Feature:

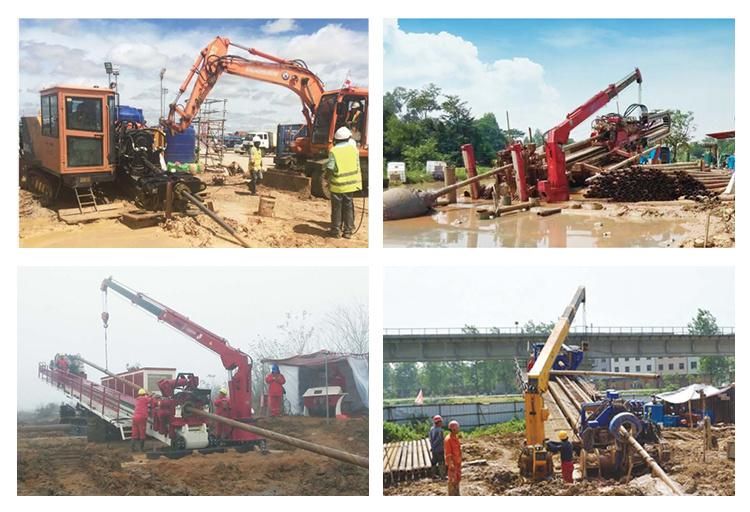

1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.

2000m Trenchless Intelligence Portable Horizontal Directional Drill Rig

1. Packaging:

Packed by standard import & export wooden cases or carton boxes.

2. Shipping:

By logistics; by automobile; by train; by shipping; by air etc.

1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements. 2000m Trenchless Intelligence Portable Horizontal Directional Drill Rig

FAQ
1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free.
You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
