• Model NO.：HF1100Y
• Suitable Earth Layers：Soil, Sand, Gravel, Cobble, Rocks
• Wind Pressure：1.05----8.45 MPa
• Air Consumption：16-96.4 M³,Min
• Length of Drilling Pipe：4.5m
• Total Weight：16.8ton
• Dimension (L * W * H)：7302*2200*2670mm
• Mud Pump Flow：600L,Min
• Usage：Water Well
• Power Type：Diesel
• Type：Drilling Machine
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Hanfa
• Origin：Zhengzhou City, China
• HS Code：8430490000
• Production Capacity：100sets,Month

700mHole diameter140----400mmWind pressure1.05----8.45MpaAir consumption16-96.4m³/minLength of drilling pipe4.5mDiameter of drilling pipeΦ 89/Φ108/Φ127mAirreverse circulation double drill pipeΦdiameter 127mPull-down pressure12tLifting capacity60tSlow-lifting speed2m/minSlow-forwarding speed0.9m/minFast-lifting speed18m/minFast-forwarding speed37m/minRotating torque11000NmRotating speed0-100r/minThe capacity of main windlass2.5tsteelwire  Φ12mMud pump flow600L/minCentrifugal flow1300L/minEngine24kw/380vEfficiency10-25m/hGrade ability15ºTotal Weight16.8tonDimension(L*W*H)7302*2200*2670mm

Packing&Shipping

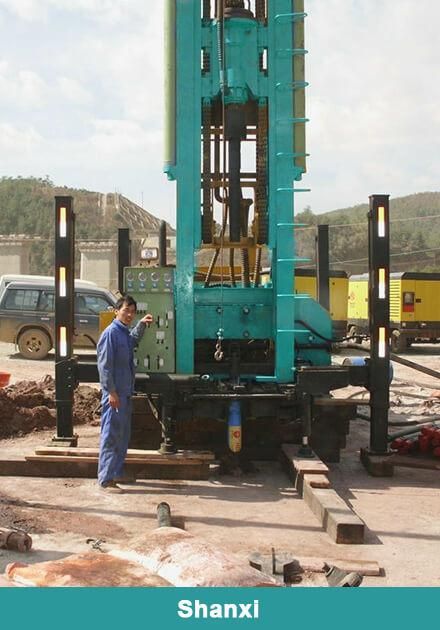

Construction Site




Company Introduction

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.



1. More than 30 years of experience

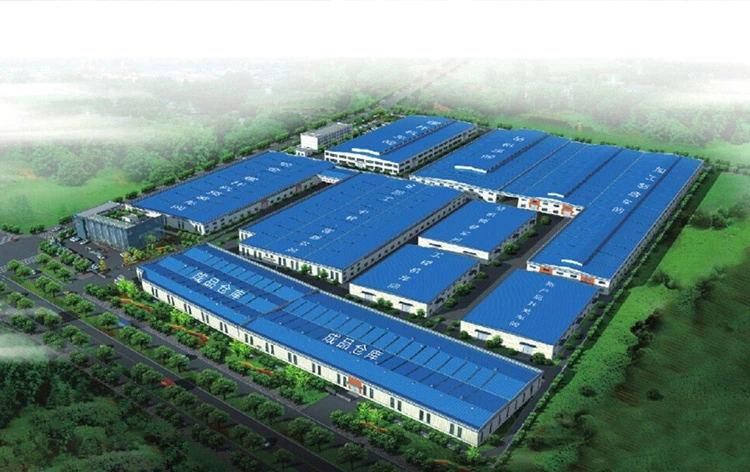

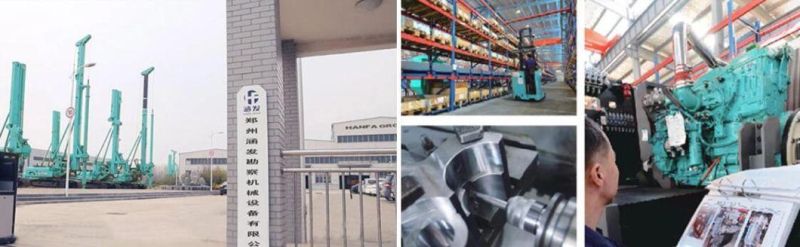

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
