• Model NO.：XY-200C
• Drilling Way：Rotary
• Type：Crawler
• Usage：Water Well
• Voltage：380V
• Power(W)：15kw
• Weight：810kg
• Diesel Engine：22HP, 2200r,Min
• Application：Water Well, Soil Sampling, Pile Foundation etc
• Stratum：Gravel, Soil, Sand, Hard Rock etc
• Transport Package：Container
• Specification：2750*950*1600mm
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. XY-200C Drilling Way Rotary Type Crawler Usage Water Well Voltage 380V Power(W) 15kw Weight 810kg Diesel Engine 22HP, 2200r/Min Application Water Well, Soil Sampling, Pile Foundation etc Stratum Gravel, Soil, Sand, Hard Rock etc Transport Package Container Specification 2750*950*1600mm Trademark DEFY Origin China Henan Production Capacity 200 Sets Per Month

Product Description

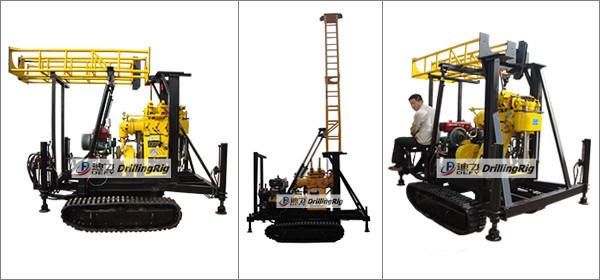

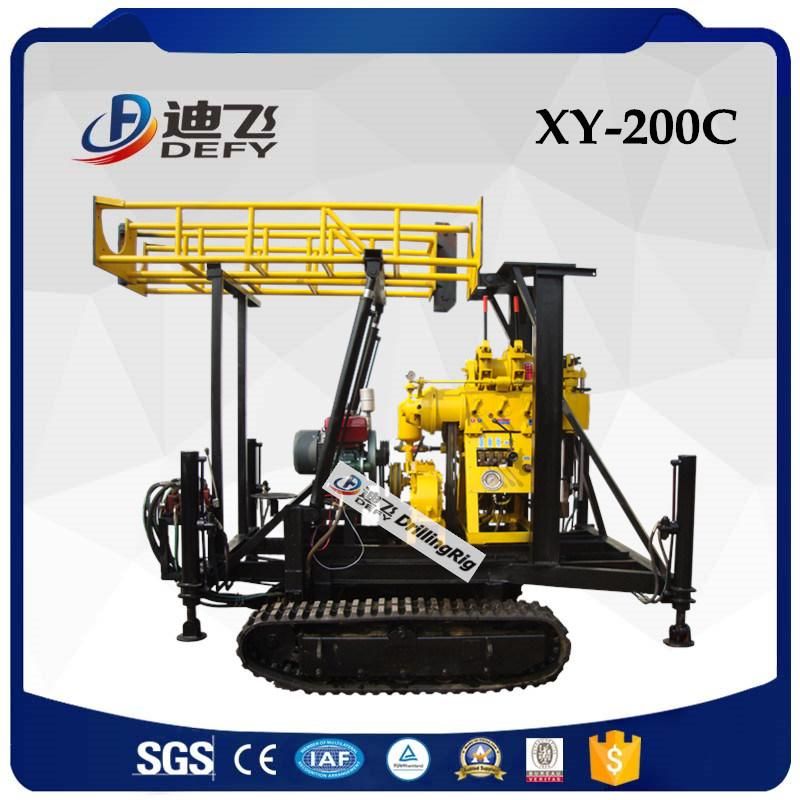

                     200m Depth XY-200C Water Well Drilling Machines with Mud Pump


XY-200C Drilling Rig with Crawler Water Well Drilling Machine is invented by our engineers, adopt the latest technology, many years experience, and customer feedback need, with high quality but cheap price.XY-200C can be used for water wells and core drilling, soil, sand, gravel, mud, weathering rock, hard rocks all can drill. As our star produce, XY-200C Drilling Rig with Crawler Water Well Drilling Machine is popular with our customers from more than 40 countries.
Technical parameters
parameter:

1. Main parameter
Drilling depth	200m
Maximum borehole caliber	400mm
Minimum borehole caliber	75mm
Diameter of Drill pipe	42,50,60mm
Drilling angle	90°~75°
Weight(Not include power)	810kg
Unity machine dimension	2750*950*1600mm
2. Vertical Spindle
Spindle rotating speed	64, 128, 287, 557r/min
Spindle stroke	450mm
3. Hoist
Max. single line lifting capacity	1600kgf
Reel lifting speed	17,35,75,151m/s
Steel wire rope diameter	12mm
Steel wire rope volume	26mm
Hug floodgate diameter	245mm
Hug floodgate belt width	70mm
Movable distance	400mm
4. Mud pump
Type	BW-160
Type	Horizontal Single Cylinder with 2 purpose
	Diesel engine	160L/min
	Electrical Motor	140L/min
Max. Pressure	1.2MPa
Work Pressure	0.7MPa
5. Power
Diesel engine	22HP
Electric	15KW
6. Drilling tower
Type	Integrated on drilling rig
Control system	Hydraulic
7. Crawler chassis
Type	Rubber crawler
Support legs	Mechanical or hydraulic type

Brief Details of Water Well Drilling Rig:

1. Model No.: XY-200C

2. Max. Drilling Depth:200m

3. Drilling Rod Diameter: 130mm

4. Borehole Diameter: 75~~400mm

5. Warranty: One year guarentee excluding wearing parts

6. Certifications: BV, SGS Certificate

7. Applications: Water Well, Irrigation wells, Geological Exploration, Blast Holes, Geothermal Heat Project etc.

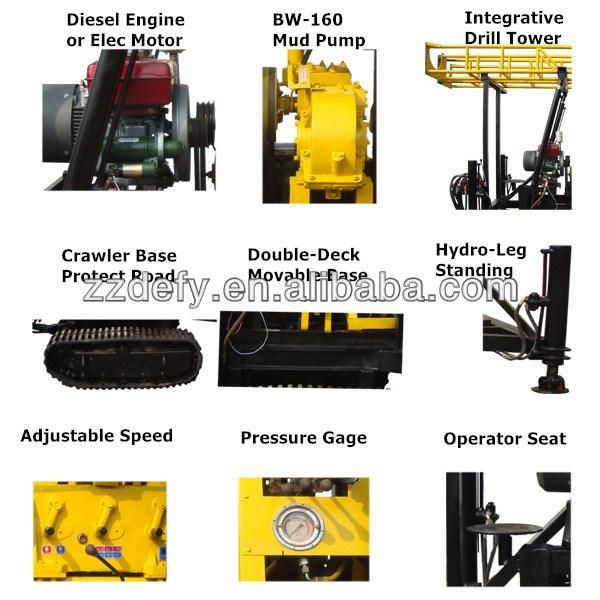

Detailed Images


First of all, do you have an idea of the drilling rig you are looking for? The following questions will help you to get suitable drilling machine for your business.
1. What kind of projects you will work for,Water well,Borehole,Exploration coring,Foundation
Piling or others?
2. The Max. depth of drilling you hope to achieve?
3. The Min. and Max. hole diameter you estimate?
4. Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the
soft and hard layers?
The more details of your need are told from you, the better our engineers are able to recommend you the suitable models.

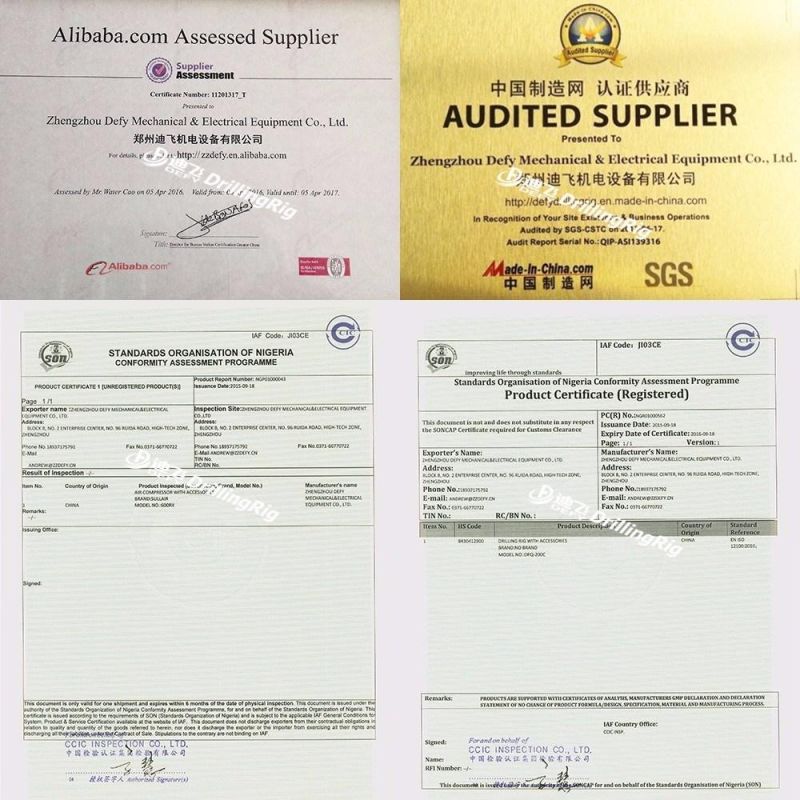

Certifications


Our Service

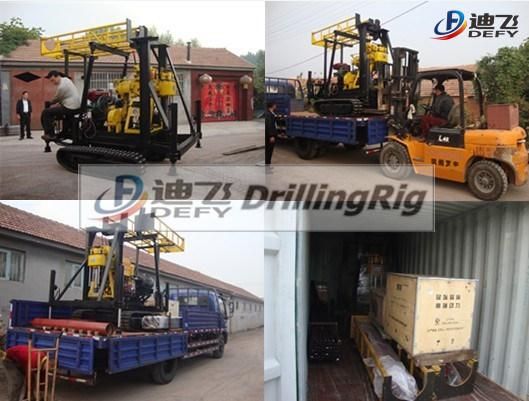

Packing & Delivery
Package of Water well Drilling Rig XY-200C
To protect drilling rigs during sea transportation, we give them proper packing.
Main machines: In wooden case
Spare parts: Wooden case or plastic woven bag

Contact Us

Please don`t hesitate to contact us if XY-200C  borehole drilling rig is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
