• Model NO.：Anbit UJ33
• Drilling Way：Rotary

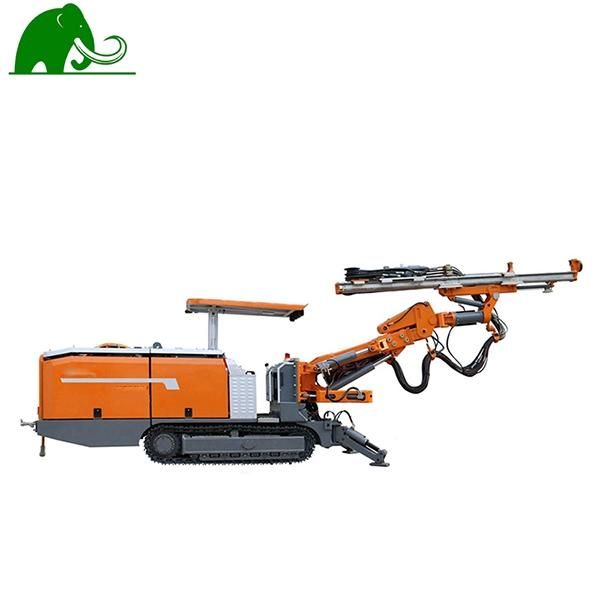

• Type：Crawler
• Drilling Depth：25m
• Pipe Type：Standard 60*2m
• Engine Model：Yuchai Ycd4r12t-70
• Rotation Torque(Max)：1650n.M
• Feed Force：15kn
• Tramming Speed(Max)：2,5km,H
• Trademark：Anbit
• Origin：China
• Production Capacity：1000

Basic Info.

Model NO. Anbit UJ33 Drilling Way Rotary Type Crawler Drilling Depth 25m Pipe Type Standard 60*2m Engine Model Yuchai Ycd4r12t-70 Rotation Torque(Max) 1650n.M Feed Force 15kn Tramming Speed(Max) 2,5km/H Trademark Anbit Origin China Production Capacity 1000

Product Description

Anbit UJ Drilling Jumbo Hydraulic  Drilling Rig Three Arms Drillig Rig

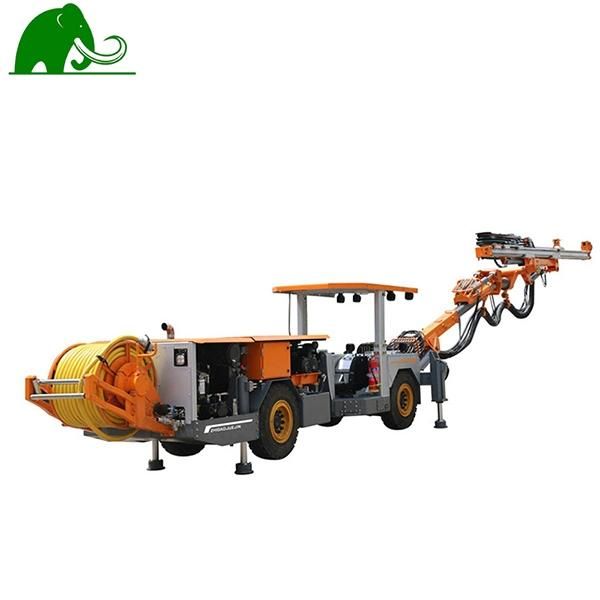

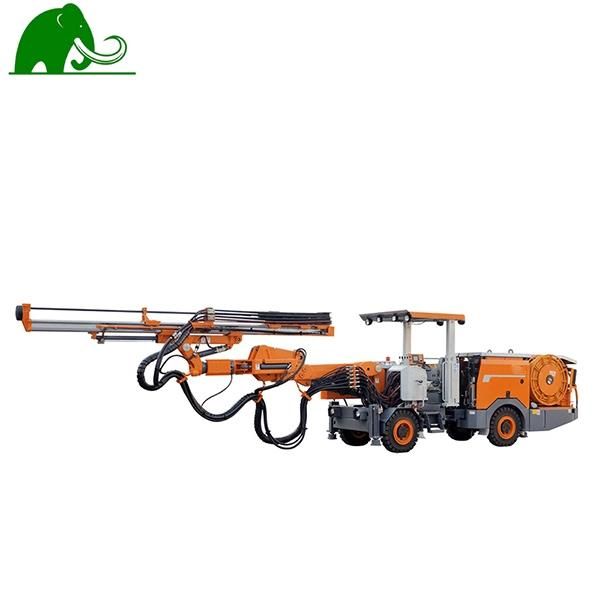

UJ33Tunneling trolley, hydraulic drilling rig ,is suitable for narrow, low-rise mine and tunnel.Using direct control of the hydraulic system, four-wheel drive articulated floating chassis. It can be applied to rugged road conditions, quick approach and evacuation of construction section, high-efficiency rock drill performance, shorten drilling time, and reduce consumption, is the only choice for all narrow veins, low-rise roadways.

1, control system:

Hydraulic rock drilling control system, with automatic hole opening, no lubrication, no water, no impact, rotary pressure automatic control propulsion, automatic thrust pressure control impact and automatic anti-jamming function. Before and after traveling two gears change speed, overload climbing, the engine does not extinguish, automatically adapt to deceleration and increase output torque.

2, Coordinate system drilling arm:

The double triangle suspension support drill arm can ensure accurate hydraulic parallel holding function in all aspects.

3, feed beam:

Heavy-duty aluminum alloy propulsion beam, with high bending and torsion strength, long service life; feed beam surface covered with stainless steel, wear-resistant PTFE pad between moving parts, to improve service life.

4, rock drilling machine:

ZY104M rock drill with double shock absorber system to ensure the best service life of drilling tools, pressure oil film protection and lubrication of the interface, reduce the internal wear of rock drill;
