42ton Goodeng trenchless machine drilling rig horizontal directional drilling rig

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：1350 mm
  • Drill Hole Depth：650 m

Base Info

  • Model NO.：GS420-LS
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：track
  • Engine Power：179 kW
  • Max. Torque：19000 N·m
  • Max. Mud Pump Flow：450 L,Min
  • Transport Package：Nude Packing
  • Specification：7300*2250*2270 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：2000,Year

Description

Rig Weight13000 kgDimension(L*W*H)7300*2250*2270(mm)Max. Push&Pull Force430/860 kNMax. Torque19000 N·mMax. Push&Pull Speed53 m/minMax. Rotation Speed185 r/minEngine Power179 kWMax. Mud Pump Flow450 L/minCaterpillar Walking Speed3-5(km/h)Max. Mud Pump Pressure8 MpaEntry Drill Angle12°-25°Max. Climbing Gradient18°Max. Aperture Diameterø1350mm
(Soil Depended)Max. Crossing length650m
(Soil Depended)

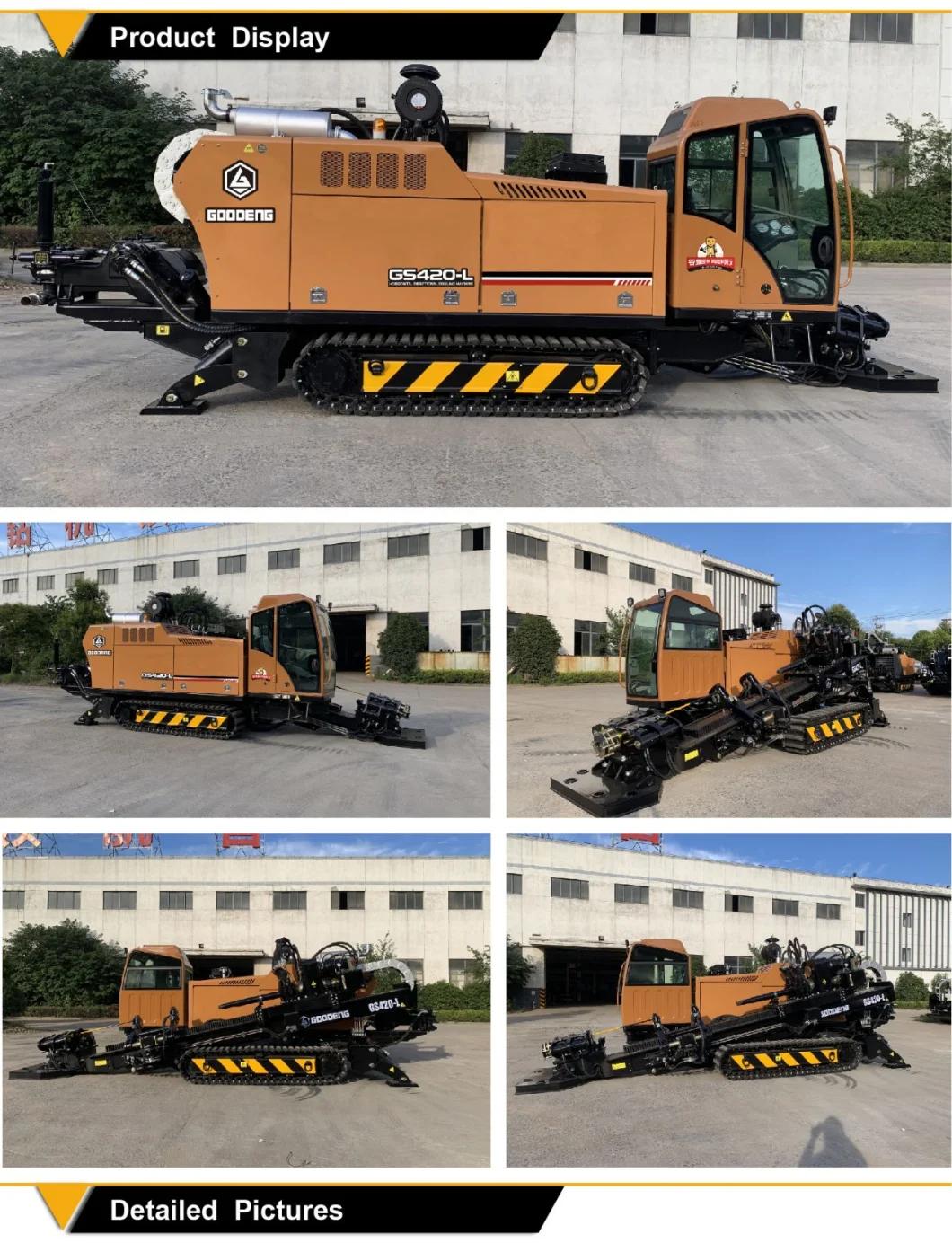

42ton Goodeng trenchless machine drilling rig horizontal directional drilling rig

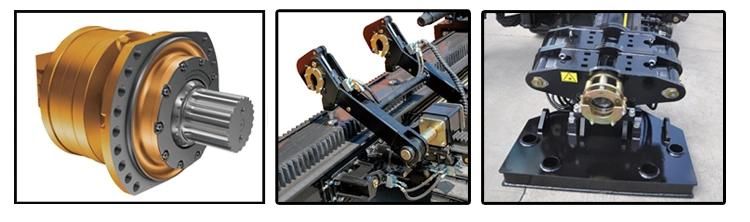

1.Close-circuit system for rotation and automatic variable system for push & pull and clamping.

2.Cummins engine: high efficiency, large power, low fuel consumption, low noise.

3.Four bar linkage luffing structure increases entry angle.

4.Wire-control walking system ensures the safety.

5.φ83/φ76×3000mm drill rod.

6.Advanced hydraulic system and first-class hydraulic components.

7.Reasonable electric design with low failure rate.

8.The rubber plate steel track.

9.The rack and pinion system for push & pull.

10.Optional manipulator.
42ton Goodeng trenchless machine drilling rig horizontal directional drilling rig

42ton Goodeng trenchless machine drilling rig horizontal directional drilling rig42ton Goodeng trenchless machine drilling rig horizontal directional drilling rig42ton Goodeng trenchless machine drilling rig horizontal directional drilling rig

1. What about the warranty time?

    A:12 months after shipment or 2000 working hours, whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

       On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

   A: We have office and professional after-sales service team in many countries. After you receive the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
