• Model NO.：KR60
• Torque：60 Kn.M
• Max. Diameter：1000 mm
• Max. Drilling Depth：16 M(Lock), 20 M(Friction Kelly Bar)
• Max. Crowd Pressure：90 Kn
• Max. Crowd Pull：100 Kn
• Main Winch Line Pull：80 Kn
• Operating Height：11200 mm
• Operating Width：2490mm

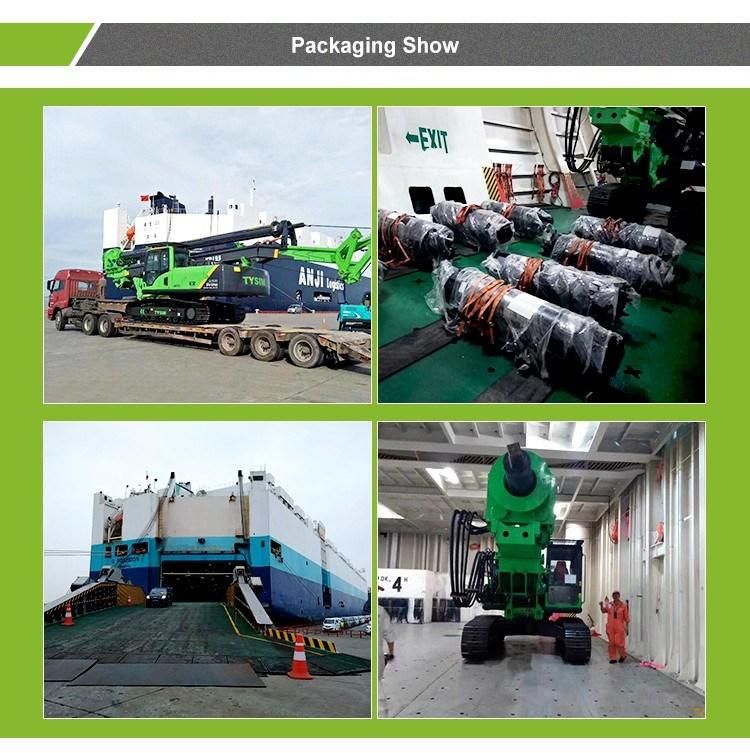

• Transport Package：Bulk Pack
• Specification：22 t
• Trademark：tysim
• Origin：Jiangsu, China
• HS Code：8431499900
• Production Capacity：30pieces,Month

Basic Info.

Model NO. KR60 Torque 60 Kn.M Max. Diameter 1000 mm Max. Drilling Depth 16 M(Lock)/ 20 M(Friction Kelly Bar) Max. Crowd Pressure 90 Kn Max. Crowd Pull 100 Kn Main Winch Line Pull 80 Kn Operating Height 11200 mm Operating Width 2490mm Transport Package Bulk Pack Specification 22 t Trademark tysim Origin Jiangsu, China HS Code 8431499900 Production Capacity 30pieces/Month

Product Description

Technical Specification

Type	KR60C
Torque	60 KN.m
Max. diameter	1000 mm
Max. drilling depth	16 m(Lock)/ 20 m(Friction kelly bar)
Speed of rotation	8~30 rpm
Max. crowd pressure	90 kN
Max. crowd pull	100 kN
Main winch line pull	80 kN
Main winch line speed	70 m/min
Auxiliary winch line pull	30 kN
Auxiliary winch line speed	40 m/min
Stroke(crowd system)	3200 mm
Mast inclination(lateral)	±3°
Mast inclination(forward)	4°
Max. operating pressure	35 MPa
Pilot pressure	4.1MPa
Travel speed	3km/h
Traction force	114 kN
Operating height	11200 mm
Operating width	2490mm
Transport height	3300 mm
Transport width	2490 mm
Transport length	9970mm
Overall weight	22 t

Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
