Chinese Water Well Drilling Rig with Air Compressor Good Price
Shandong JK Machinery Co., Ltd.- Warranty：12 Months Warranty Service
- Certification：CE, ISO 9001:2000
Base Info
- Model NO.：JK-DR500
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Product Name：Water Well Drilling Rig
- Engine：Disel Engine
- Color：Custmized
- Usage：Water Well
- Elevating Capacity：26000kg
- Bore Diameter：140-350mm
- Drilling Depth：500m
- Weight：11500kg
- Feature：High Drilling Efficiency
- Brand：Sdjk
- Transport Package：Comply with Export Packaging Requirements
- Specification：6000x2200x2950mm
- Trademark：SDJK
- Origin：Shandong
- Production Capacity：50units,Month
Description
Basic Info.
Model NO. JK-DR500 Condition New Motor AC Motor Drill Hole Diameter >300mm Drill Hole Depth >200m Bit Type Diamond Bit Drilling Way Rotary Type Crawler Product Name Water Well Drilling Rig Engine Disel Engine Color Custmized Usage Water Well Elevating Capacity 26000kg Bore Diameter 140-350mm Drilling Depth 500m Weight 11500kg Feature High Drilling Efficiency Brand Sdjk Transport Package Comply with Export Packaging Requirements Specification 6000x2200x2950mm Trademark SDJK Origin Shandong Production Capacity 50units/MonthProduct Description

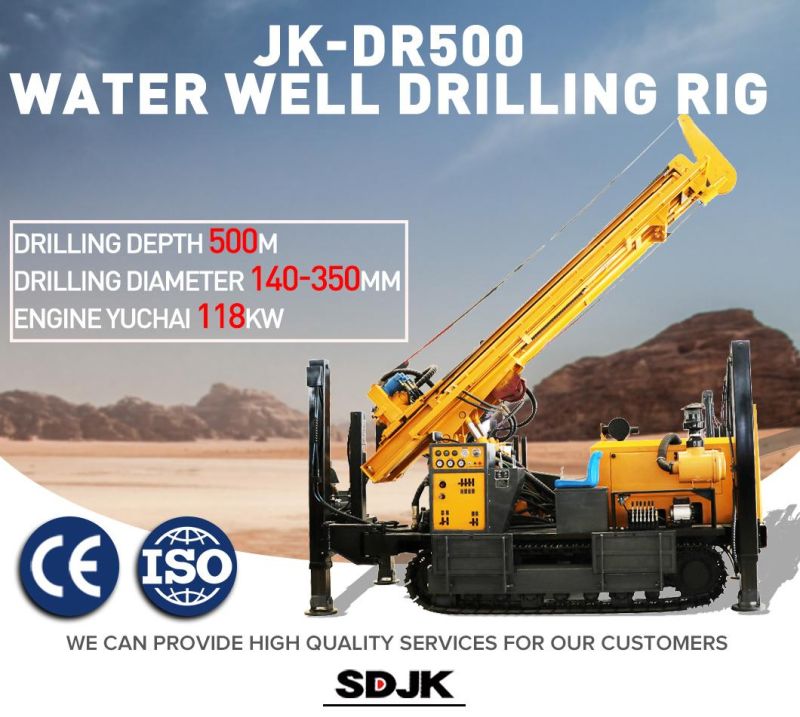

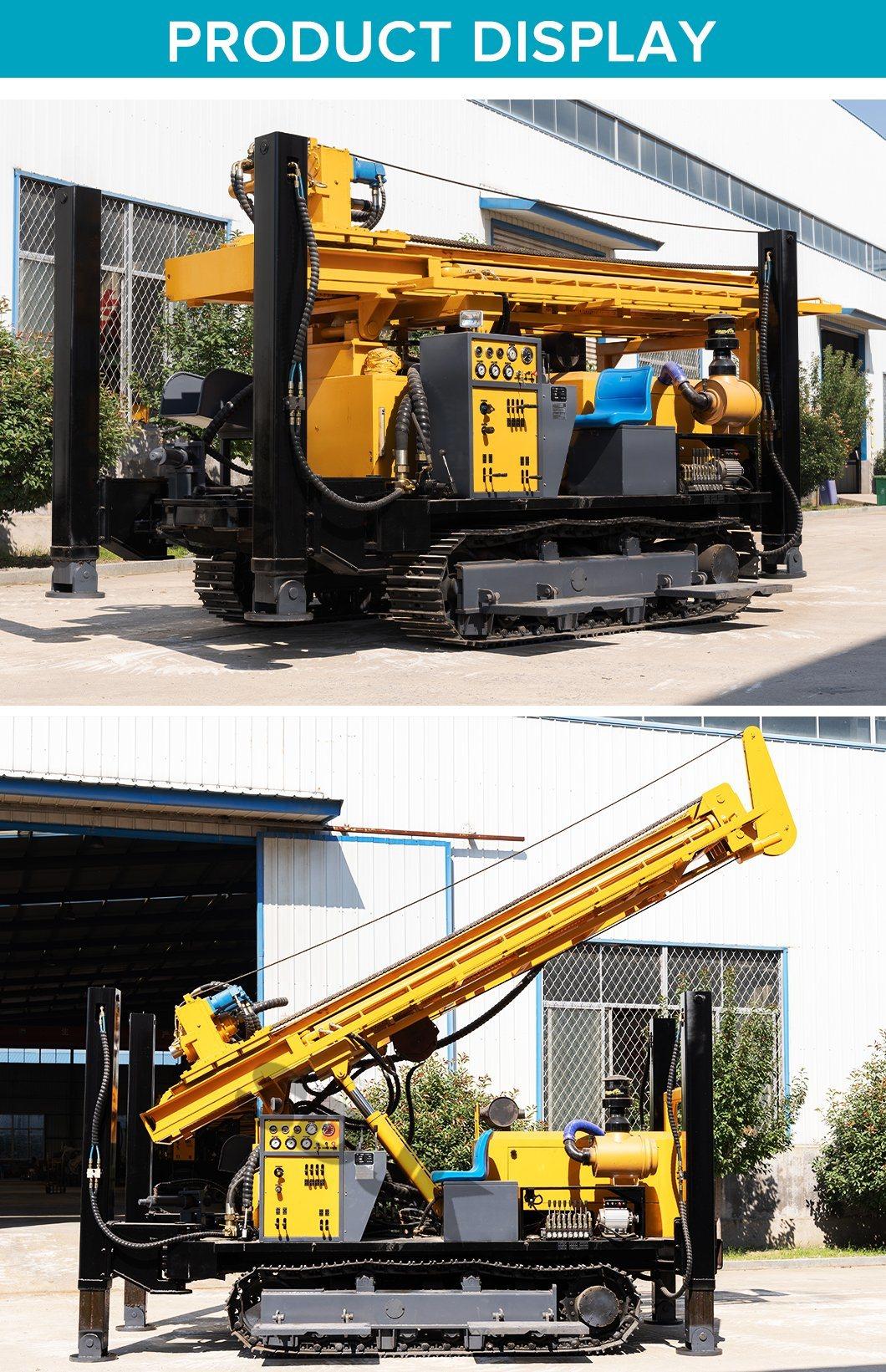

The JK-DR500 DTH drilling rig with AC(Air Compressor) method is capable of drilling upto 219mm diameter holes for pore-forming purposes to a depth of 500 meters.

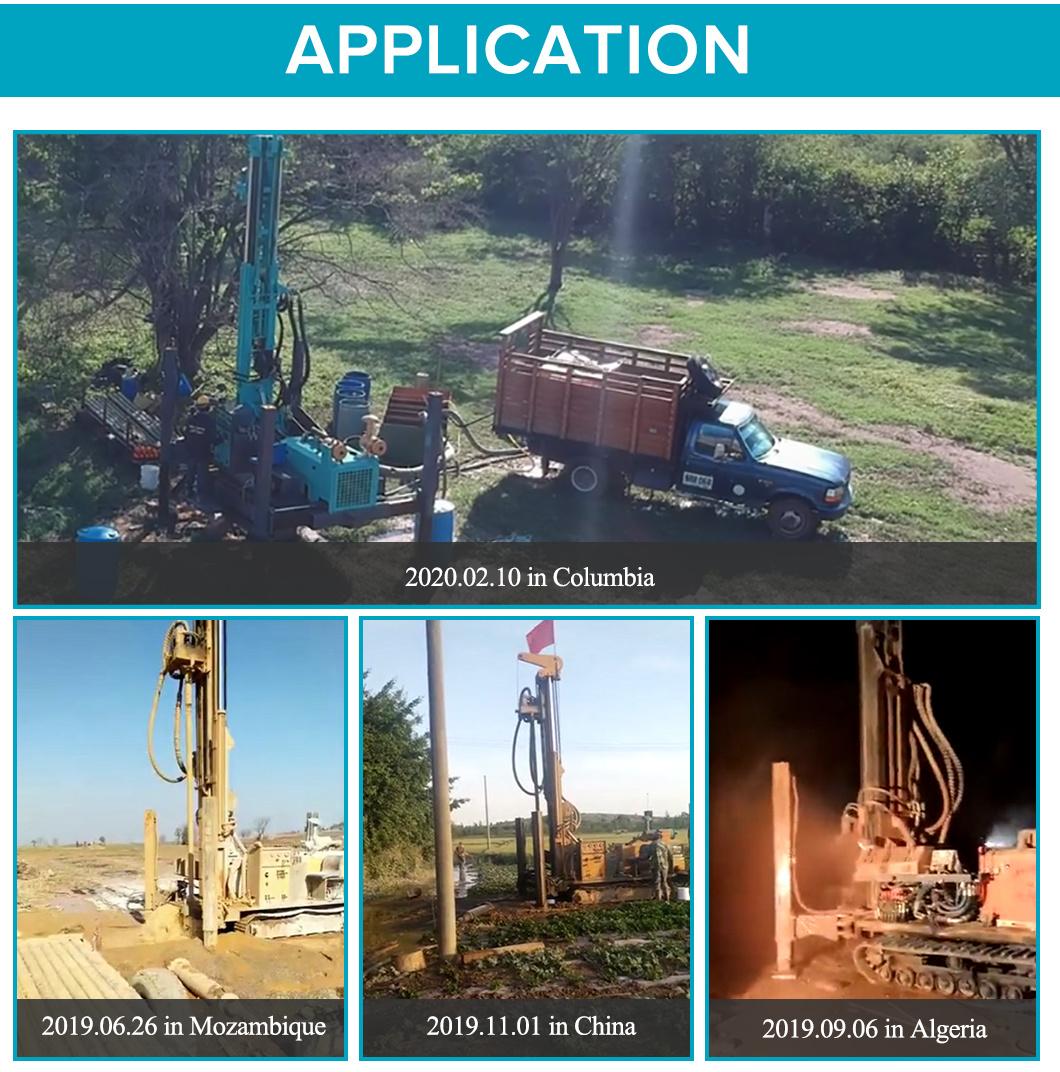

JK-DR series water well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.There are 180, 200, 300, 350, 400, 500, 600, 800 and other series of water well drilling rigs.This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
| Model & Name | JK-DR500 | Rated pressure | 1.7-3.5 MPa |
| Weight | 11.5Ton | Air consumption | 17-42 m³/min |
| Bore diameter | 140-350mm | Drill rod diameter | Φ102 / Φ108/ Φ114 mm |
| Drilling depth | 500m | Drill rod length | 1.5m, 2.0m, 3.0m, 6.0m |

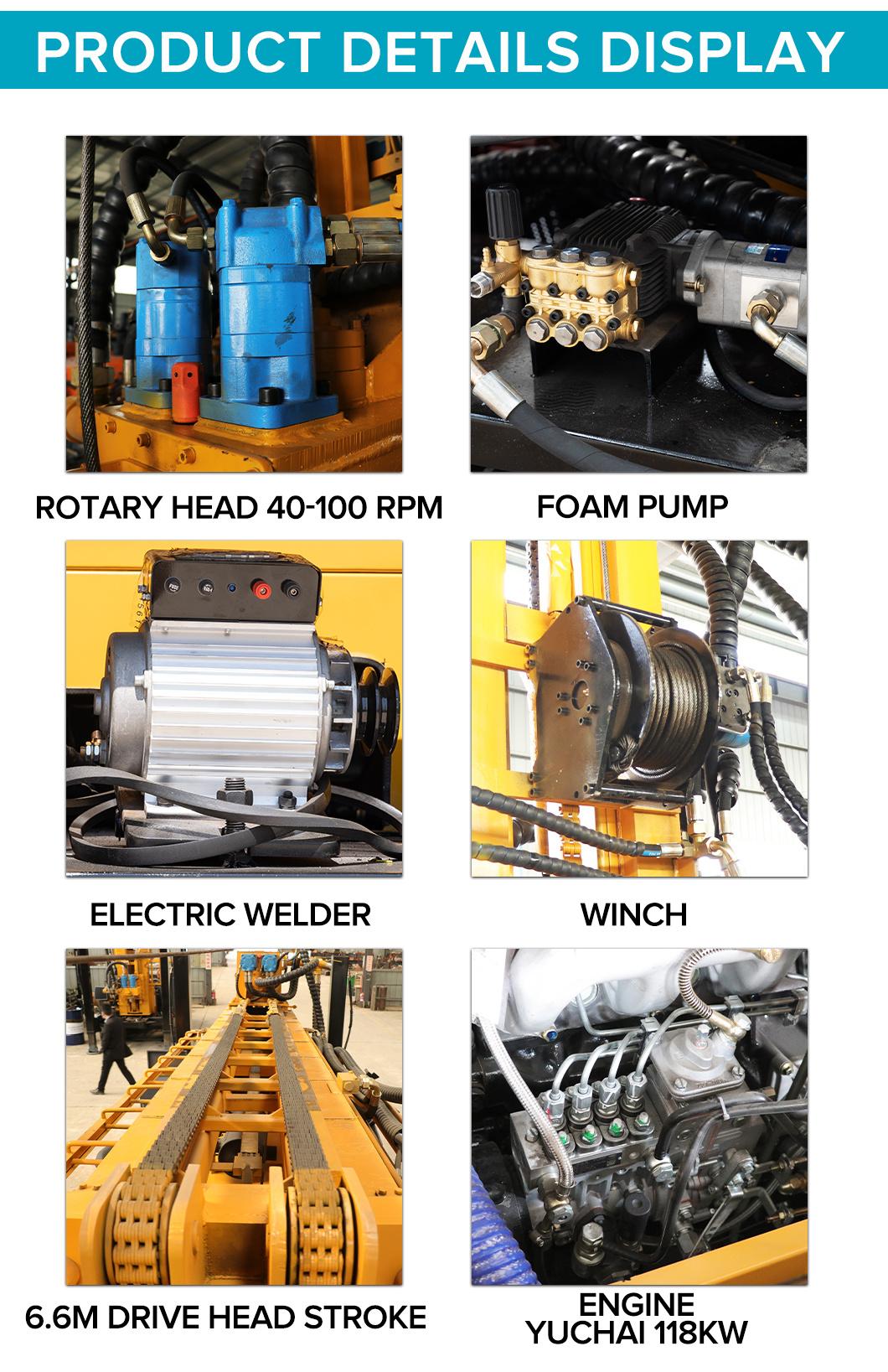

| Engine Model | YUCHAI | Elevating capacity | 26Ton |
| Rated Power | 118 kW | Swing speed | 40-100rpm |
| Stroke | 6.6m | Swing torque | 7500-10000N.m |
| Travelling speed | 2.5km/h | Dimensions | 6000*2200*2950mm |
| Gradeability | 30% |
