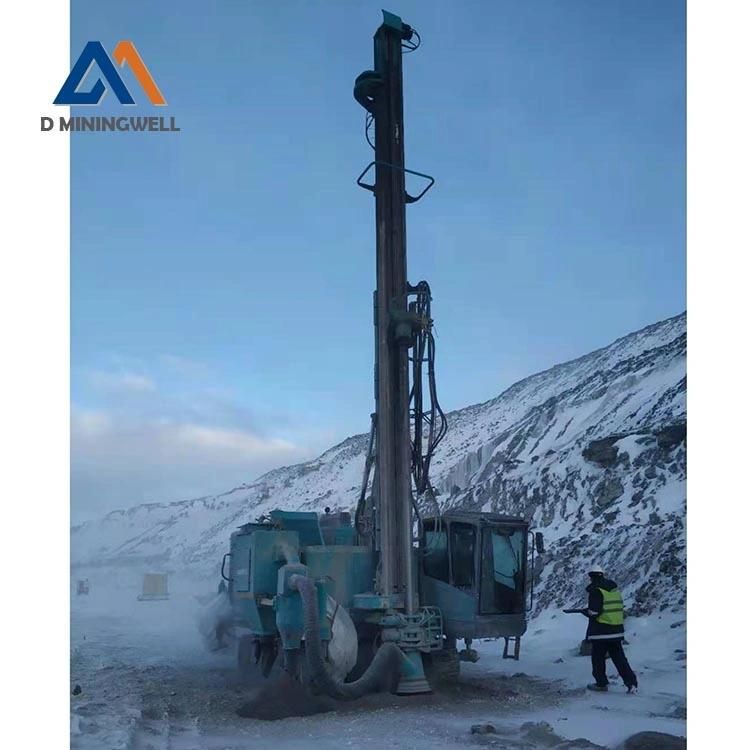

D Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTH

Zhejiang Miningwell Supply Chain Management Co., Ltd.
  • Warranty：1 Year
  • Condition：New

Base Info

  • Model NO.：SWDA200C
  • Motor：AC Motor
  • Drill Hole Diameter：180-255mm
  • Drill Hole Depth：30m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Key Selling Points：Efficient and Intelligent
  • Weight：30t
  • Drilling Depth：30m
  • Rod Length(M)：10m*3
  • Power(Kw/Rpm)：82,2200+74
  • Rod Diameter(mm)：146
  • Working Pressure(Bar)：2.07
  • Air Displacement(M3/Min)：28.3
  • Travel Speed(Km/H)：2.8
  • Transport Package：Sea Freight; Land Freight
  • Specification：8500*4680*13800mm
  • Trademark：D Miningwell
  • Origin：Zhejiang, China
  • Production Capacity：15 Pieces Per Month
  • Package size per unit product：1380.00cm * 340.00cm * 350.00cm
  • Gross weight per unit product：30000.000kg

Description

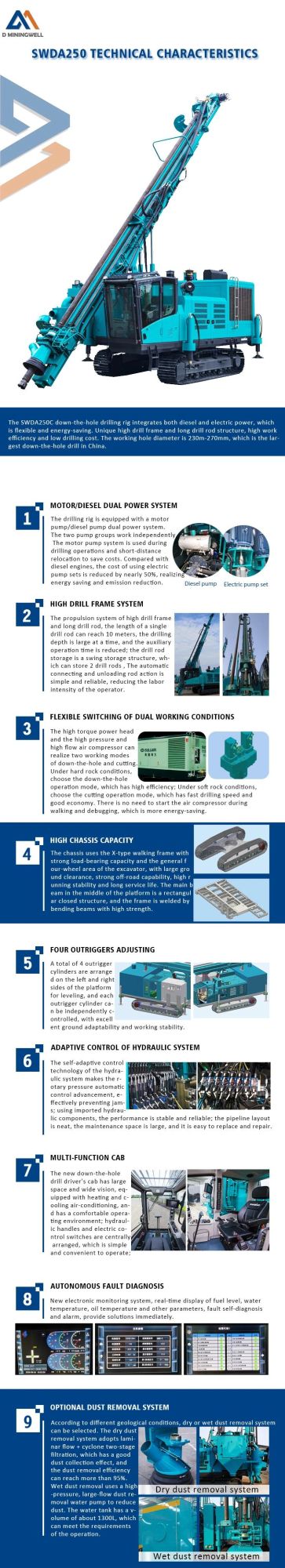

Technical parameters of Overhead diesel-electric integrated DTH drill rigModelSWDA165CSWDA200CSWDA250COPERATION PARAMETERHole diameter(mm)138-180180-255230-270Hole depth(m)253030Rod diameter(mm)114146146Rod length(m)8.5m*310m*310m*3Hammer size5", 6"6", 8"8", 9"Dust collectorDry type(Standard) / Wet type(Optional)AIR COMPRESSORWorking pressure(Bar)1.382.0720.7Air displacement(m3/min)21.228.332.6Power(kW/rpm)185250280ENGINE(Diesel engine and electric motor integrated)ModelCummins QSB4.5+Y2-200S-4Cummins QSB4.5+Y2-225S-4Cummins QSB4.5+Y2-225S-4Power(kW/rpm)82/2200+6082/2200+7497/2200+74Fuel tank capacity(L)200200200FEEDFeed beam length(mm)115001320013200Feed Stroke(mm)90001050010500Feed extension(mm)180018001800Feed rate.Max(m/s)0.80.80.8Feed force.Max(kN)607575Forward tilting angle(°)909090TRAVEL CAPACITYTravel speed(km/h)2.82.82.8Traction force,MaxkN)125175175Gradeability(°)252525Ground clearance(mm)480480480ROTARYRotary speed(rpm)855050Rotary torque(Nm)550060006620DIAMENSIONGross weight(T)283032L*W*H Working(mm)8400*4650*120008500*4680*138007500*4680*13900L*W*H Transportation(mm)12000*3400*350013800*3400*350013900*3350*3450   D Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTHD Miningwell Swda200c DTH Drilling Rig Use 10 Meters Rod Blasting Hole Drilling Rig Drill Rig DTH
