• Model NO.：hw-150
• Drilling Way：Impactor
• Type：Three Wheel Type
• Use：Water Well Drill
• Total Weight：2800 Kg
• Drilling Diameter：90---203mm
• Drilling Depth：0-150m
• Speed of Rotary：0---90r,Min
• Torque of Rotary：2000n.M
• Once Promotion Distance：2000(mm)
• Working Pressure：1.2---2.46(MPa)
• Air Consumption：16---25m³,Min
• Hoist Power：45kw
• Transport Package：Satandard Package
• Specification：150m depth
• Trademark：HW
• Origin：Shandong
• HS Code：8430411900
• Production Capacity：1000sets,Year

Total Weight2800 kgDrilling diameter90---203mmDimension(L * W * H)4400*2100*2300mmDrilling depth0-150mSpeed of Rotary0---90r/min Torque of Rotary2000N.m Once promotion distance2000(mm)Working pressure1.2---2.46(Mpa)Air consumption16---25m³/minHoist Power45KwRotate speed of diesel engine2400r/minFor rock6----20fImpact frequency0-900r/minNote: The Company's products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation

Product Real Photos

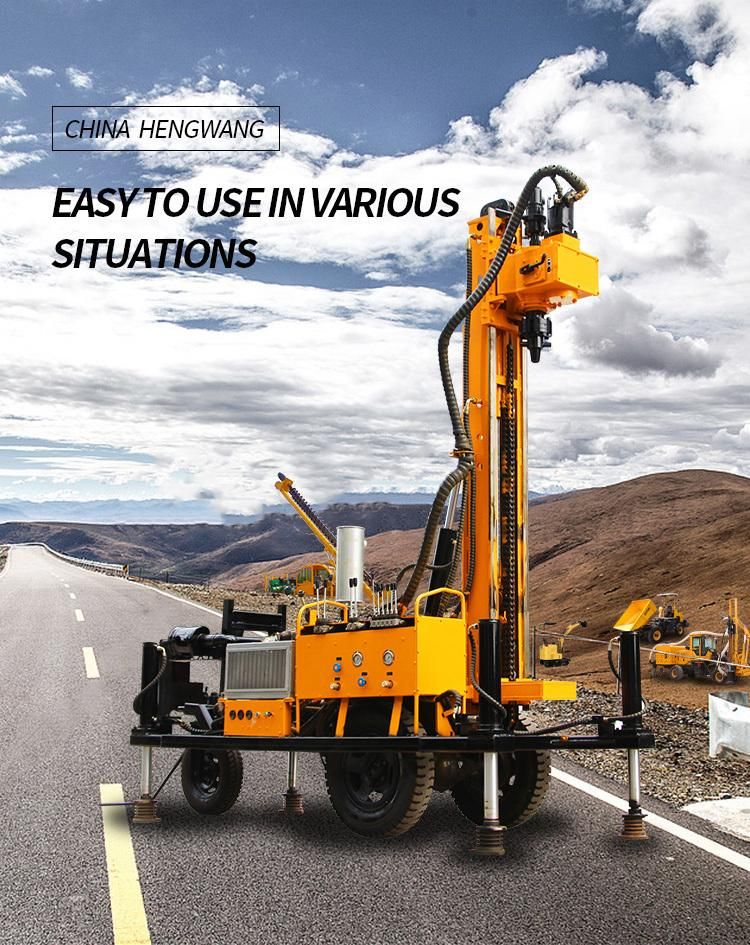

      150m depth water borehole drilling machine

 150m depth water borehole drilling machine

 150m depth water borehole drilling machine

 150m depth water borehole drilling machine

 150m depth water borehole drilling machine
