• Dimension(L*W*H)：Length:550mm
• Weight：18kg
• Warranty：6 Months
• Specification：Rotary Drilling Rig
• Trademark：CSME
• Origin：Changsha, China (Mainland)
• HS Code：8467190000
• Production Capacity：5000 Piece,Pieces Per Month

Basic Info.

Dimension(L*W*H) Length:550mm Weight 18kg Warranty 6 Months Specification Rotary Drilling Rig Trademark CSME Origin Changsha, China (Mainland) HS Code 8467190000 Production Capacity 5000 Piece/Pieces Per Month

Product Description

Product Description

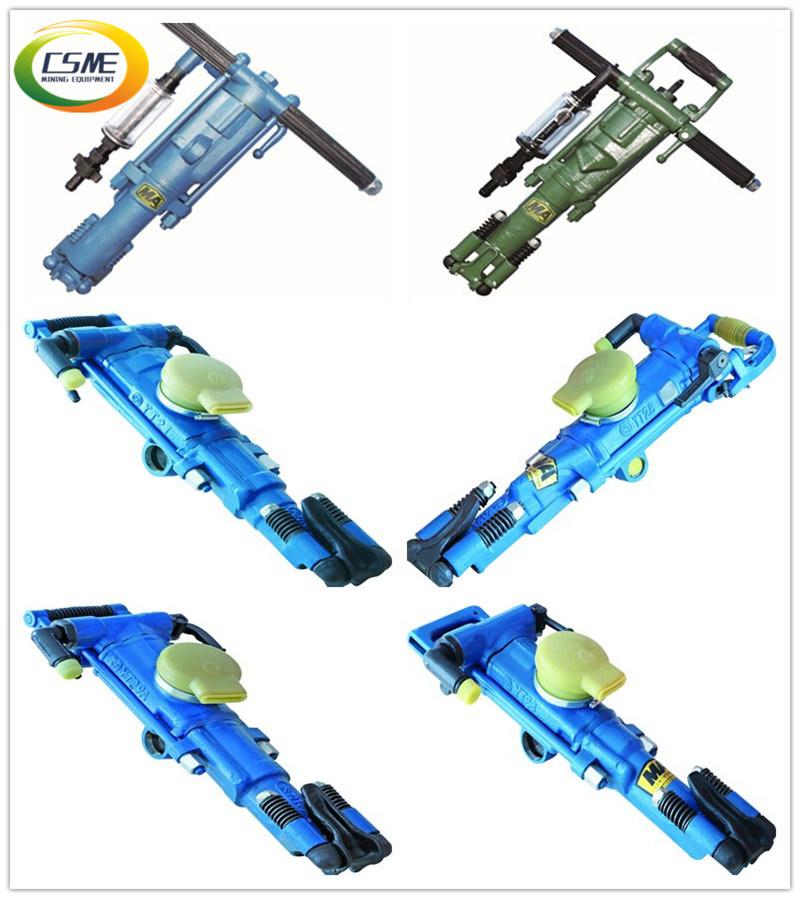

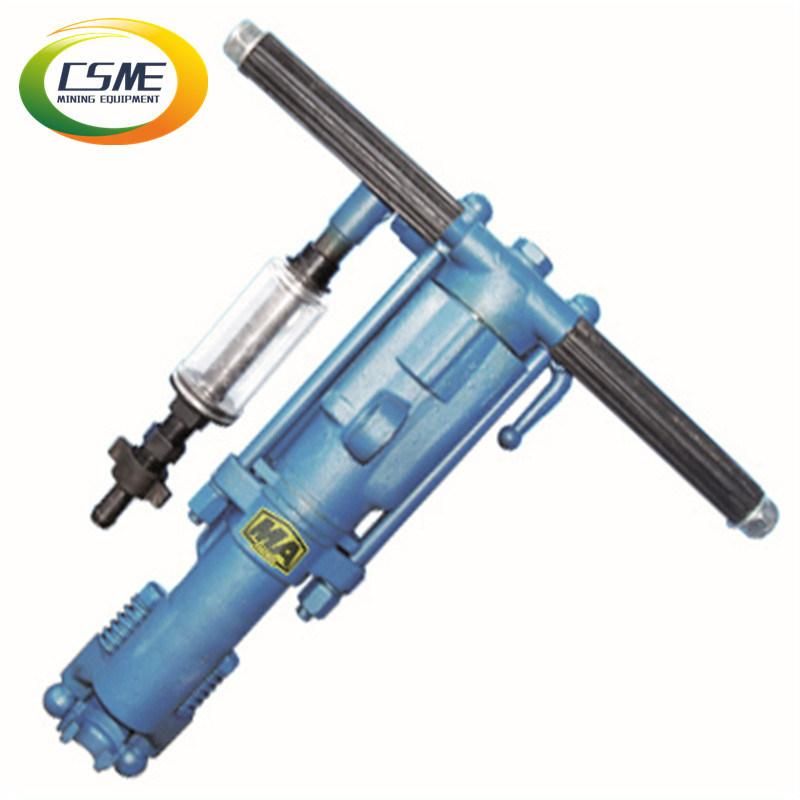

Hand rock drill Y20LY/Y24/Y26/TY24C/Y19A/YO18,Pneumatic hand-held rock drill
Suitable for either drilling downward or incline of blast holes in medium-hard rock(f=8-18), or for second blasting operation.
Centrally grouped control, nimble starting, stable running and easy maintenance.

Model	Y6	Y8	Y10	Y20LY	Y19A	Y24	Y26	Y28
Weight(kg)	6	8	10	18	19	24	26	26
Air consumption (L/s)	≤9.5	<9.0	≤9	25	43	≤50	≤47
Length (mm)	426	428	458	605	600	604	650	661
Shank (mm)	15*88	15*88	15*88	22*108	22*108	22*108	22(25)*108	22*108
Bore Dia (mm)	20	20-30	20-30	30-42	30-42	30-42	30-42	34-42
Drill depth (m)	0.5	0.5	0.5	3	5	5	5	5
Impact rate (Hz)	51	51	≥51	34	35	30	27	≥28
Hose connection(mm)	13			16 or19	19	19	19
Air pressure(Mpa)		0.4-0.63	0.2-0.3			0.4	0.4	0.4
