Cralwer Mounted Hydraulic Rotary Borehole Electric Motor Water Well Drilling Rig Machine
Henan Yugong Machinery Co., Ltd.- After-sales Service：2 Years
- Warranty：2 Years
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：250-300mm
Base Info
- Model NO.：YG-500S
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Type：Crawler
- Max Drilling Depth：500m
- Drilling Diameter：105-350mm
- Working Wind Pressure：1.05-4.5MPa
- Air Consumption：16-60m3,Min
- Drill Pipe Length：3m
- Drill Pipe Diameter：89mm
- Shaft Pressure：10t
- Lifting Power：28t
- One-Time Advance Length：6.6m
- Boost Speed：3.0m,Min
- Advancing Speed：0.5-5m,Min
- Rapid Rise Speed：25m,Min
- Fast Forward Speed：40m,Min
- Maximum Rotation Torque：8500-11000nm
- Rotation Speed：75-150r,Min
- Transport Package：Container
- Specification：4100*2000*2500 mm
- Trademark：YUGONG
- Origin：China
- HS Code：8430419000
- Production Capacity：5000sets,Year
Description
PRODUCT DESCRIPTION

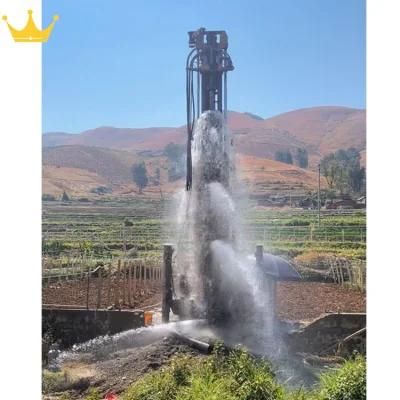

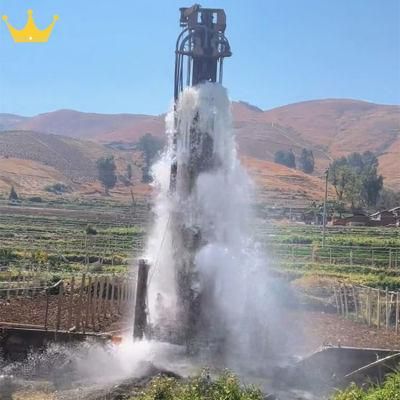

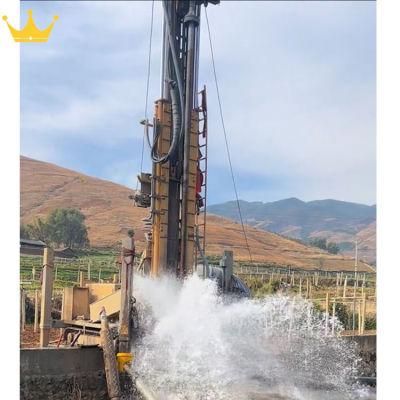

CONSTRUCTION PICTURES
OUR COMPANY
