• Model NO.：ZJ-250
• Bit Type：Cone Bit
• Drilling Way：Impactor
• Voltage：380V
• Weight：50,000kg, 50,000kg (110,230 Lb)
• Workover Depth：3,200m(10,500FT, 2-7,8′′ Dp) 2,000
• Rated Hook Load：400kn (90,000 Lbf)
• Max. Hook Load：735kn (165,000 Lbf )
• Hook Hoisting Speed：1.5m,S (4.92FT,S)
• Transport Package：Naked Outfit
• Specification：18.5*2.9*4.2m
• Trademark：Beyond
• Origin：Shandong China
• HS Code：8431431000
• Production Capacity：100

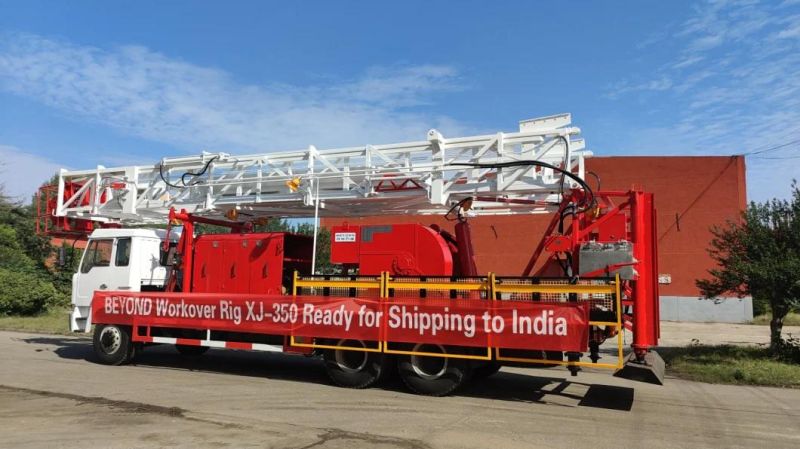

DescriptionXJ250 Workover Rig (Overhaul)XJ250 Workover Rig (Servicing)Workover Depth3,200m(10,500ft, 2-7/8'' DP) 2,000m(6,560ft, 2-7/8'' DP) Servicing Depth3200m (10,500ft, 2-7/8''EUE Tubing)Rated Hook Load400kN (90,000 lbf)Max. Hook Load735kN (165,000 lbf )675kN (151,700 lbf)Traveling System3×4 {Φ22mm (7/8'') Wireline)Hook Hoisting Speed1.5m/s (4.92ft/s)Overall Dimensions(l×w×h)18.5×2.9×4.2m60.7×9.5×13.8ft16.5×2.9×4.2m54.1×9.5×13.8ftWeight50,000kg (110,230 lb)45,000kg (99,200lb)Max. Travel Speed60km/h (37mph), but limit 45km/h(28mph)CarrierSelf-propeller 10×8Self-propeller 6×4  TransmissionAllison 4700 OFSHeight31m (102ft)27m (89ft)Max. Static Hook Load735kN (165,000 lbf)675kN (151,700 lbf)Racking Board Capacity3200m (10,500 ft, 2-7/8'' EUE TB)Racking Board Height20.1m (66 ft), 16.8m (55ft)16.8m (55ft)Drawwork Rated Power185kW (250hp, Double drum)Main DrumΦ336×828mm (Φ13.2'' ×32.6'')Max. Faster Line Pull145kN (32,600 lbf)Sanding DrumΦ315 mm×908mm (Φ12.4'' ×35.7'')Air Assist Brake SystemKOBELT Disc 4-7-35''    Caliper 5026-CMDrill Floor (l×w×h)4.2×4.2×3.3m (13.8×13.8×10.8 ft)Swivel Model andMax. LoadSL90 900kN (202,330 lbf)ZP125 Rotary TableMax. Load 900kN (202,330 lbf) Max. Open Dia. 292mm (11.5'')

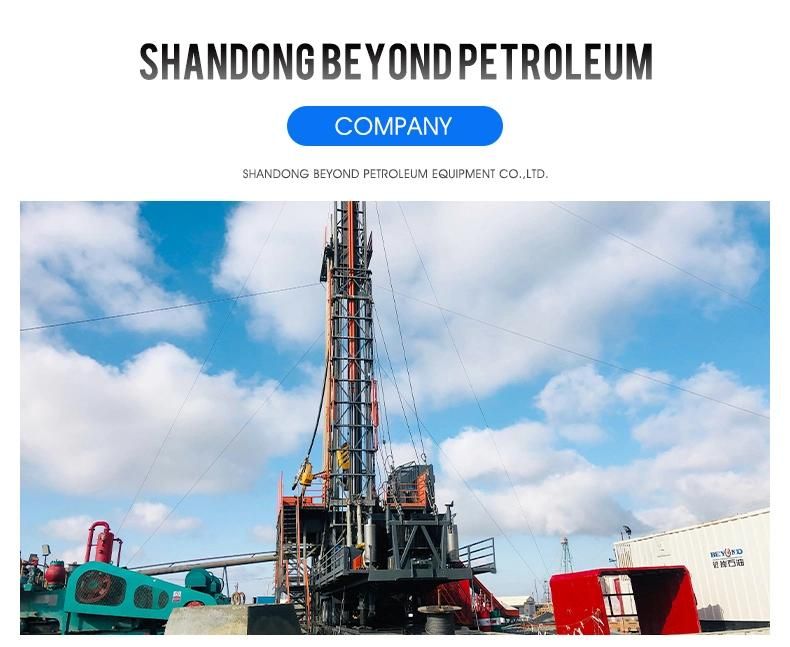

Shandong Beyond Petroleum Equipment Co., Ltd, hereinafter referred to as "Beyond", was established in year 2016 and certified by ISO9001. Its main business scope is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, construction and HDD.

Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can customize the product supply as per your on-site conditions, and we can offer overseas after-sale services with our strong technical support. Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products had covered countries like USA, Venezuela, Argentina, India, Singapore, Kazakhstan, Azerbaijan, Egypt and Ethiopia.

With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its business principle, Beyond believes we will become your trustable and reliable partner in China. We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. Choose Beyond, You will get beyond your expectations and we will not let you down.
