• Model NO.：GS1600-L
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Track
• Engine Power：316 kW
• Max. Torque：78000 NM
• Max. Mud Pump Flow：800 L,min
• Transport Package：Nude Packing
• Specification：11600*3100*3550 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS1600-L Bit Type Drag Bit Drilling Way Rotary Type Track Engine Power 316 kW Max. Torque 78000 NM Max. Mud Pump Flow 800 L/min Transport Package Nude Packing Specification 11600*3100*3550 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

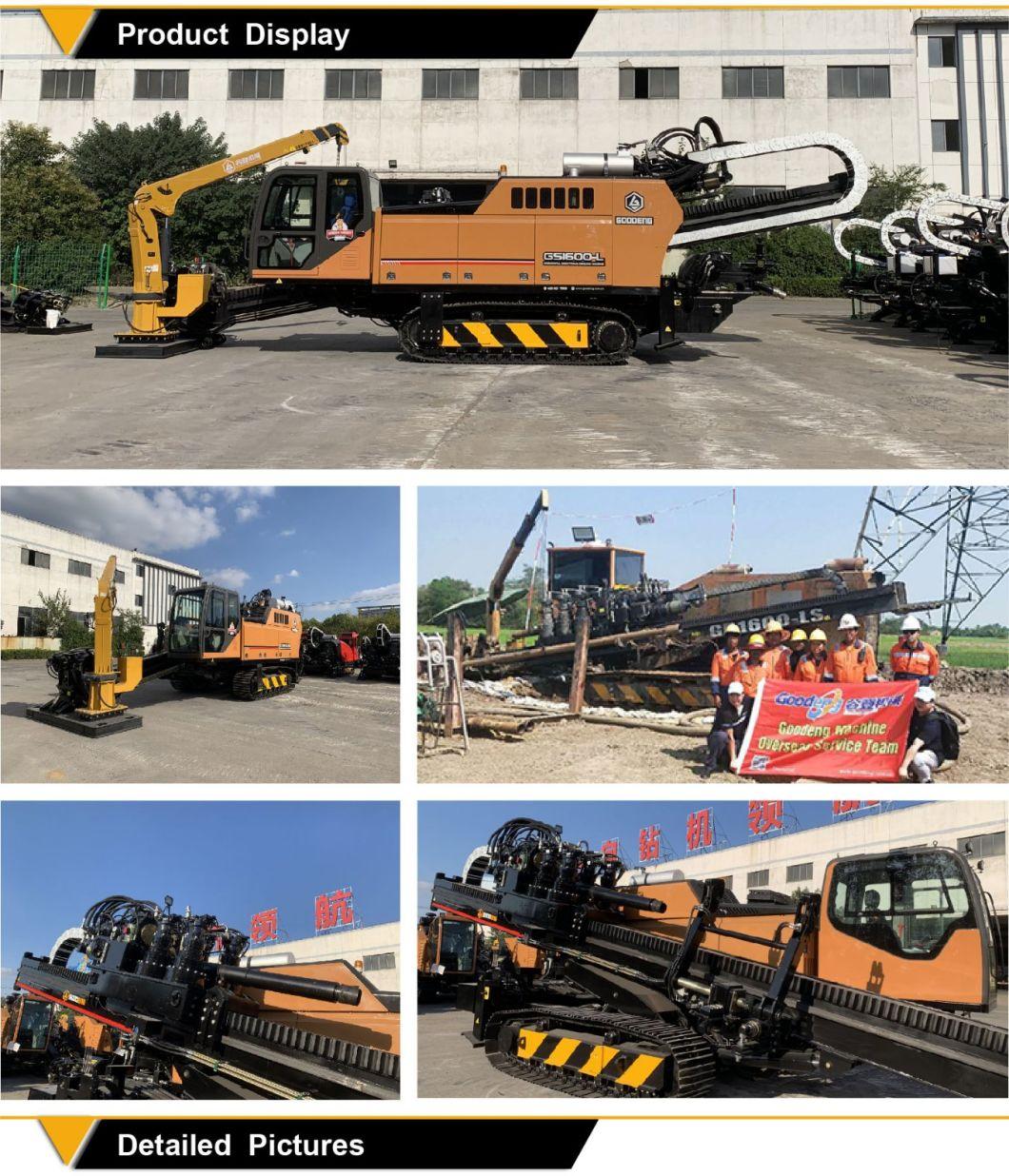

Product Description

Item	Parameter	Item	Parameter
Rig Weight(kg)	28300	Size L×W×H(mm)	11600x3100x3550
Max. Push & Pull force(KN)	1700	Max. Torque(N*m)	78000
Max. Push & Pull speed(m/min)	45	Max. Rotation Speed (r/min)	105
Engine Power(KW)	316	Max. Mud Pump Flow (L/min)	800
Caterpillar Walking Speed(Km/h)	3-5	Max. Mud Pump Pressure (Mpa)	10
Entry Drill Angle(°)	8-22	Max. Climbing Gradient (°)	18
Max Aperture Diameter(mm)	Ф1500	Max. Drilling Length(m)	1500

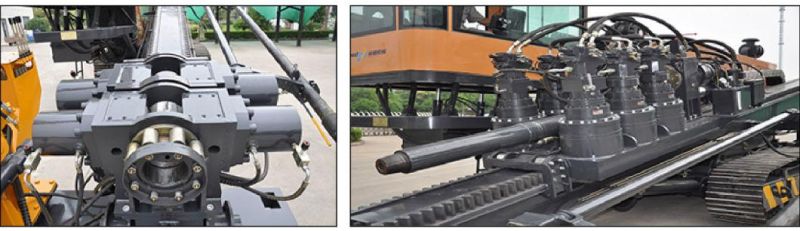

1.Rotary manipulator
2.Rotatable cab and heating and cooling air conditioner
3.The power head rotation has dual-proportional speed regulation function
4.Power head push-pull with three-gear speed regulation function
5.Caterpillar wire control walking, two speed adjustable
6.Thrust&pullback force is 1700kN
7.Equipped with mud pump with maximum flow L/min 800
8.Main girder adopts four bar linkage luffing structure

1. What about the warranty time?

    A:12 months after shipment or 2000 working hours,whichever occurs first.

2. What about the delivery time?

    A:20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

       On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

    A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
