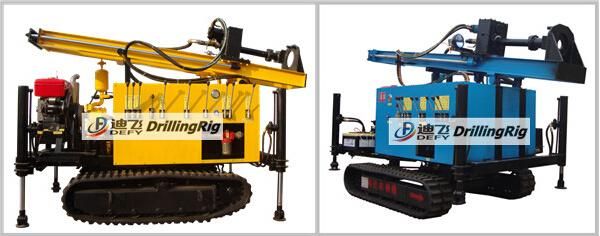

• Model NO.：DFQ-100
• Drilling Way：Rotary
• Type：Crawler
• Transport Package：Wooden Package
• Specification：SGS BV
• Trademark：DEFY
• Origin：China
• Production Capacity：50 Set Per Month

Basic Info.

Model NO. DFQ-100 Drilling Way Rotary Type Crawler Transport Package Wooden Package Specification SGS BV Trademark DEFY Origin China Production Capacity 50 Set Per Month

Product Description

I. Application

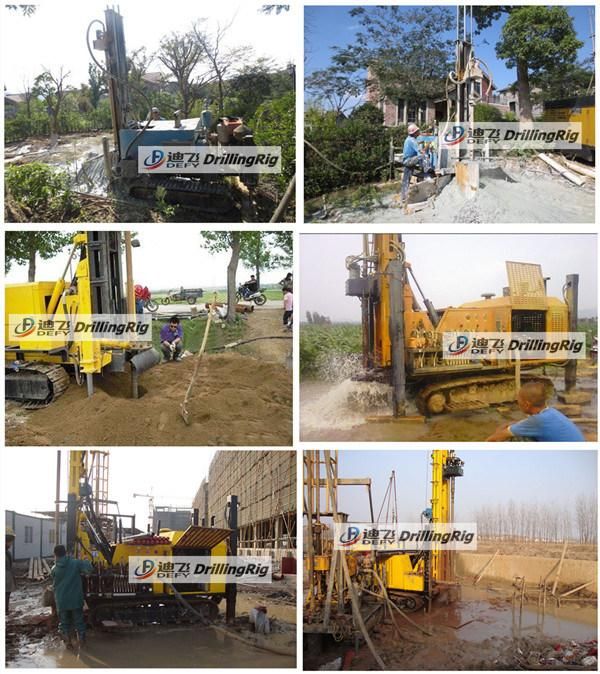

It is widely used for water well drilling, geothermal air conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering.

II. Features of DTH hammer drilling rigs

* Highly automated, high working efficiency, saving labor force.

* Two Methods for water well flushing Supply air compressor & mud pump, big power in rocky areas

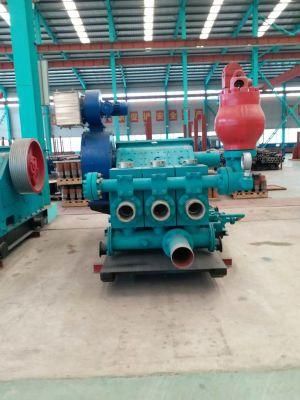

* Independent Mud Pump Equipped with a complete set of independent BW 160 mud pump, with high pump flow rate and

pressure, convenient maitenance.

* Various Drilling BitsDTH drill bits to drill soft and hard rock.

* Movable mounted on crawler, trailer, wheel and strong adaptbility in different areas

* Strong Hydraulic Supporting legs Rise and fall automatically, easy for the rig to be loaded and unloaded.

*Hammer rotary drilling method-Much efficient and convient to drill rock ground

 III. Specifications

No.	Item	DFQ-100
1	Drilling caliber	Φ105-150 mm
2	Max. drilling depth	100m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-18 m³/min
5	Apply to rock hardness	f=6-12
6	Power	24Kw/2300rpm
7	Weight(main machine)	2200 Kg
8	Dimension(main machine)	3200*1770*2050mm

Remarks: Our engineer will help to create a complete set of water drilling machine and drilling tools to ensure your direct use when shipping to your site. For more details, please kindly send us an inquiry or contact our sales people by instant messenger. Thank you for your time. ^_^
