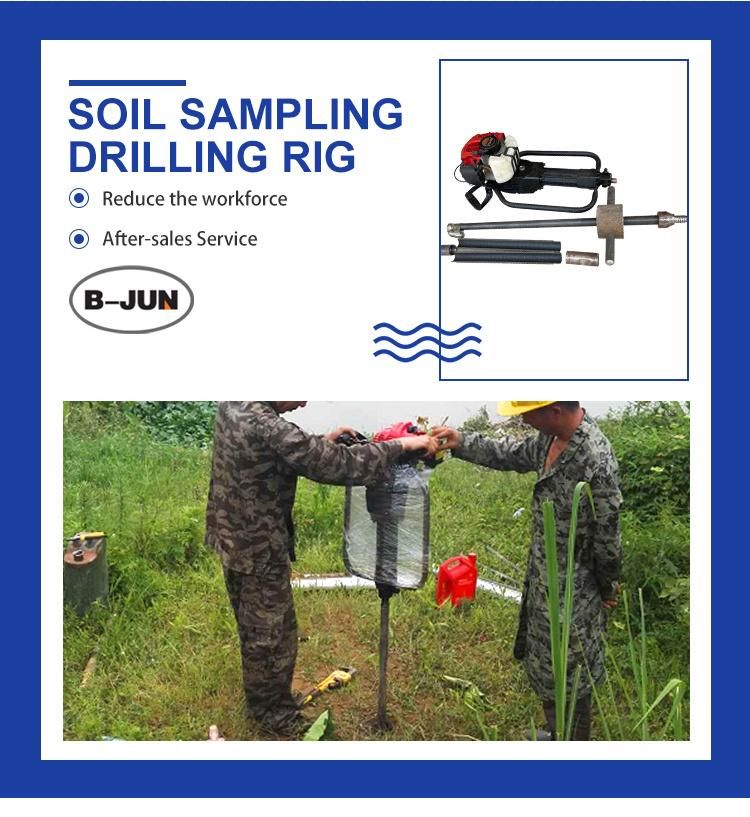

China Sale 10m Soil Investigation Portable Core Drilling Rig
Shandong Beijun Heavy Industry Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：54mm 73mm
- Drill Hole Depth：<30m
- Bit Type：Tube Boots
Base Info
- Model NO.：BJZ-1
- Drilling Way：Impactor
- Power：2.8HP
- Fire Mode：Backflush Pull Rope
- Oil Consumption：0.5L,H
- Impact Times：0.5L,H
- Impact Energy：20j-55j
- Core Depth：5m-10m
- Host Weight：23kg
- Side Buckle Impact Take Over：34*200mm
- Square Collar：34*170mm
- Square Buckle Drill Pipe：34*910mm
- Transport Package：Wooden Packaging
- Specification：23kg
- Trademark：Beijun
- Origin：Shandong
- Production Capacity：1000 Pieces a Month
Description

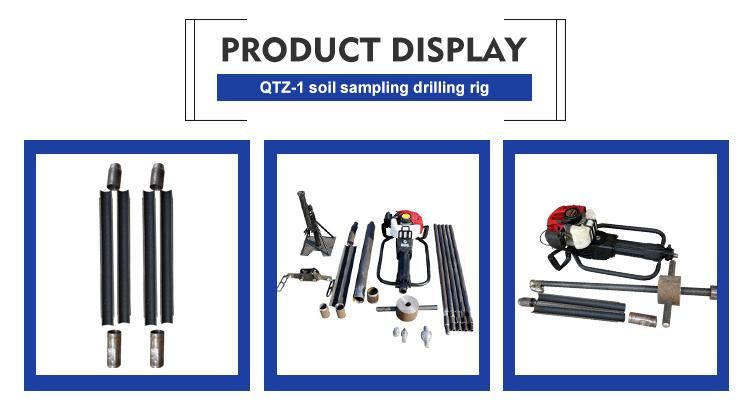

Host weight23kg 4.Configuration list of BJZ-1 soil sampling drilling rig
| Item | Parameter | Unit | Quantity |
| Soil sampling drilling rig | BJZ-1 | platform | 1 |
| Side buckle impact take over | 34*200mm | pc | 1 |
| Square collar | 34*170mm | pc | 4 |
| Square buckle drill pipe | 34*910mm | pc | 5 |
| Square buckle reducing nipple | 54/34 | pc | 1 |
| Collar | 54*140mm | pc | 1 |
| Open tube | 54*600mm | pc | 1 |
| Inner edge pipe boots | 54*90mm | pc | 1 |
| Outer edge pipe boots | 54*90mm | pc | 1 |
| Square buckle reducing nipple | 73/34 | pc | 1 |
| Collar | 73*140mm | pc | 1 |
| Open tube | 73*600mm | pc | 1 |
| Inner edge pipe boots | 73*90mm | pc | 1 |
| Outer edge pipe boots | 73*90mm | pc | 1 |
| Portable sounding hammer | 10kg | pc | 1 |
| Square contact probe | 34*98mm | pc | 1 |
| Square buckle and pull the counter cap | pc | 1 | |
| Puller | Three force arm | platform | 1 |
| The ratio of oil | 25:1 | pc | 1 |
| Tool kit | set | 1 |
