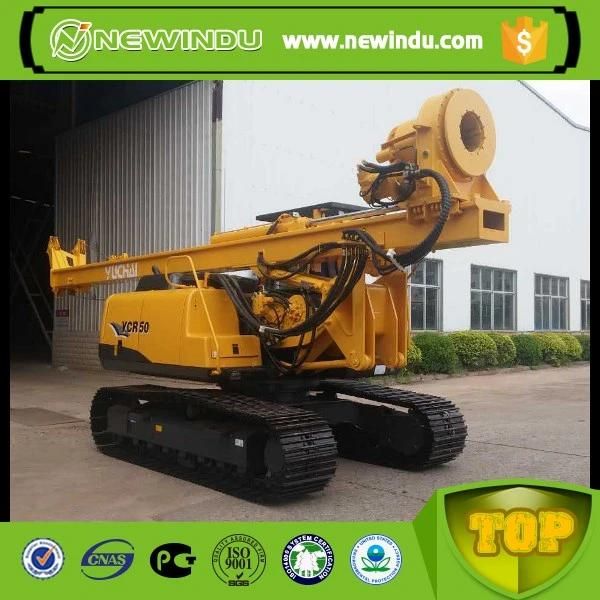

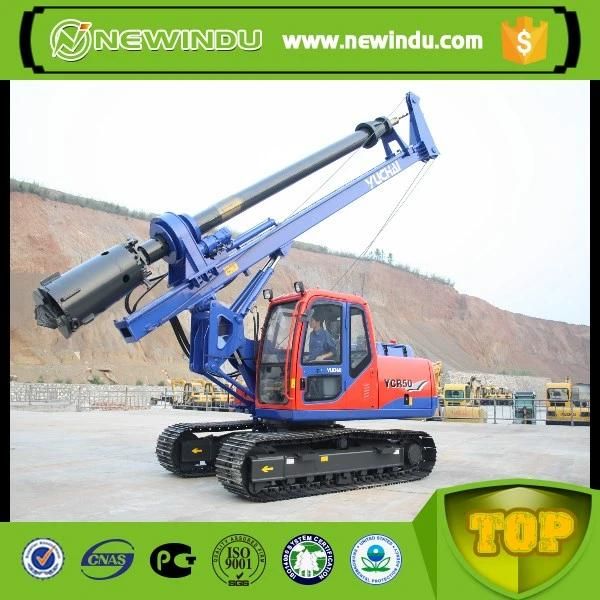

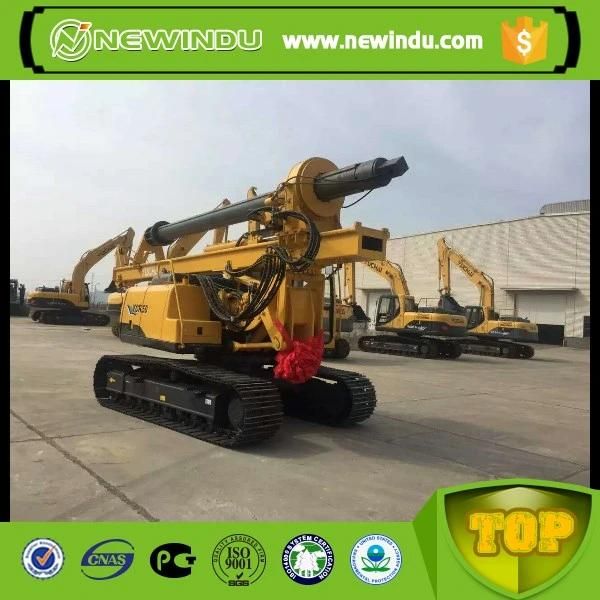

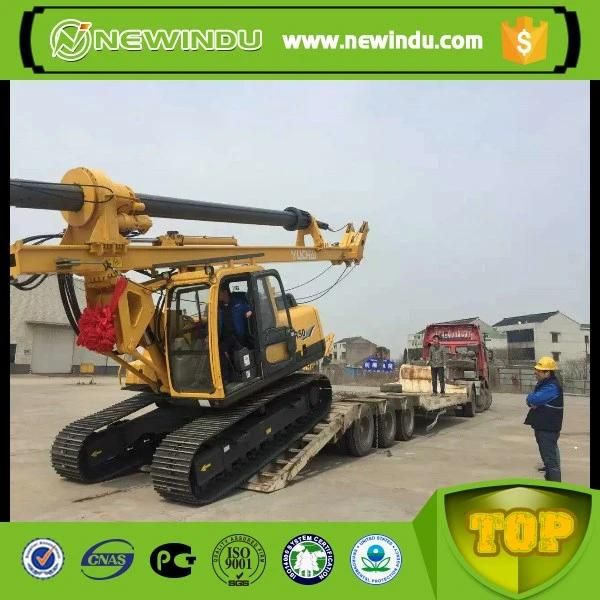

• Model NO.：YCR60
• Type：Crawler
• Operating Weight：18.2t
• Engine Model：Qsm11-C330
• Rated Power：246kw
• Traction Force：510kn
• Transport Package：Nude Packing
• Specification：9950x2600x3480mm
• Trademark：YUCHAI
• Origin：China
• HS Code：84304122
• Production Capacity：20units, Month

item)(Parameters)(Chasis)Engine typeQSF3.8-115/ Power/ revolution86kW/2200rpm()Deployment speed (margin)2600mmTrack shoe width600mmTraction104KN(Power head)The maximum out torque60kN·mPower head revolution0~35rpmThe maximum pressure increased55kNThe maximum pullout force80kNPressurizing oil cylinder stroke1500mm(Winch)(Main winch)Lifting force of the first layer70kNThe maximum lifting speed59m/minSteel wire diameter∅18mmAuxiliary winchLifting force of the first layer15kNThe maximum lifting speed50m/minSteel wire diameter∅12mm(Mast)Front inclination angle of mast5°Left and right inclinations of mast±4°(Hydraulic pump)The maximum working pressure of system32MPa(Hole depth
and diameter)The maximum drilling diameter1.2mThe maximum drilling depth28m/22m(4/3)Weight at working state20 t()15.7t()19tDrill pipe(The standard configuration)∅299-4x7.6 m(optional configuration )∅299-3x7.6 m
