Steel Crawler Mounted 300m Portable Water Well Drilling Rig

Shandong JK Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：140-325mm
  • Drill Hole Depth：300m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：JK-DR300
  • Drilling Way：Rotary
  • Type：Crawler
  • Usage：Water Well
  • Voltage：24V
  • Weight：7t
  • Warranty：1 Year
  • Power Type：Diesel
  • Product Name：Water Well Drilling Rig

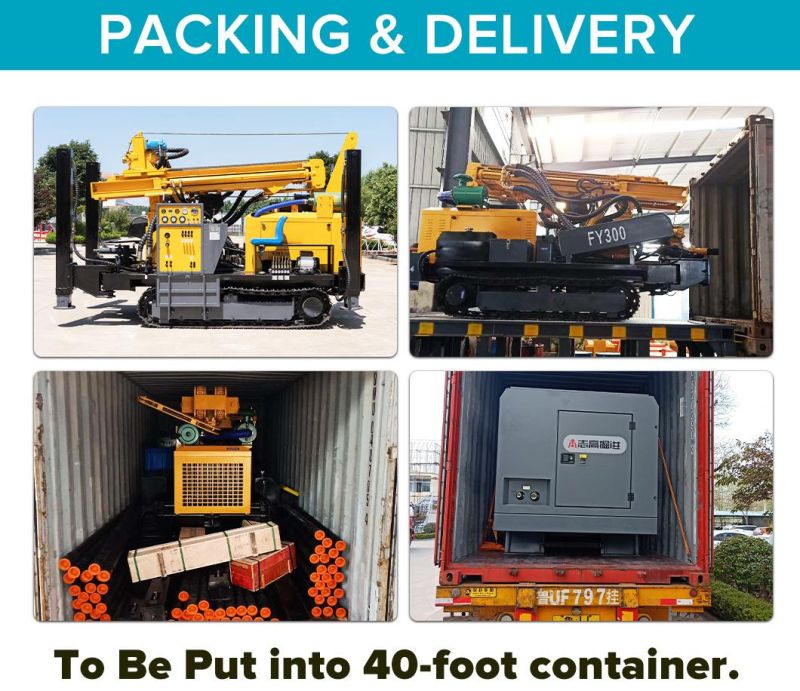

  • Transport Package：40hc
  • Specification：4100*1950*2600mm
  • Trademark：SDJK
  • Origin：Shandong
  • HS Code：8430412100
  • Production Capacity：100sets,Month

Description

The Main Parameters  ModelJK-DR300Weight7T Bore diameter140-325mm Drilling depth300m Stroke3.4m Travelling speed2.5km/h Gradeability30% Power 85KW Rated pressure1.7-3.0mpa Air consumption17-35m³/min Drill rod diameterΦ76, Φ89, Φ102   Drill rod length1.5m 2.0m 3.0m Elevating capacity16T Swing speed40-70rpm Swing torque5700-7500N.M Dimensions4100*1950*2600mmSteel Crawler Mounted 300m Portable Water Well Drilling Rig
Steel Crawler Mounted 300m Portable Water Well Drilling Rig
Steel Crawler Mounted 300m Portable Water Well Drilling Rig
Steel Crawler Mounted 300m Portable Water Well Drilling Rig
