Xr120d 120kn 44m Small Hydraulic Piling Rotary Drilling Rig Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Certification：CE, ISO 9001:2000
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：30-50m
Base Info
- Model NO.：XR120D
- Bit Type：Drag Bit
- Drilling Way：Rotary
- Type：Crawler
- Max. Pulling Force：45kn
- Transport Package：Roro,Container,Bulk
- Specification：12580*3400*3360mm
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product Description
Project
Unit
Parameter
Max.Drilling Diameter
Uncased
(mm)
φ1300
Cased
(mm)
-
Max.Drilling Depth
(m)
44
Dimension
Working condition L × W × H
(mm)
7175×3400×16800
Transportation condition L × W × H
(mm)
12580×3400×3360
Overall Drilling Weight
(t)
40
Engine
Model
-
CUMMMINS B5.9-C
Rated Power
(kW)
112/1950
Hydraulic System
Working pressure
(MPa)
32
Rotary Drive
Max. output torque
(kN.m)
120
Rotary speed
(r/min)
6~28
Spin off speed
(r/min)
-
Pull-Down Cylinder
Max.pull-down piston push
(kN)
120
Max.pull-down piston pull
(kN)
120
Max.pull-down piston stroke
(mm)
3500

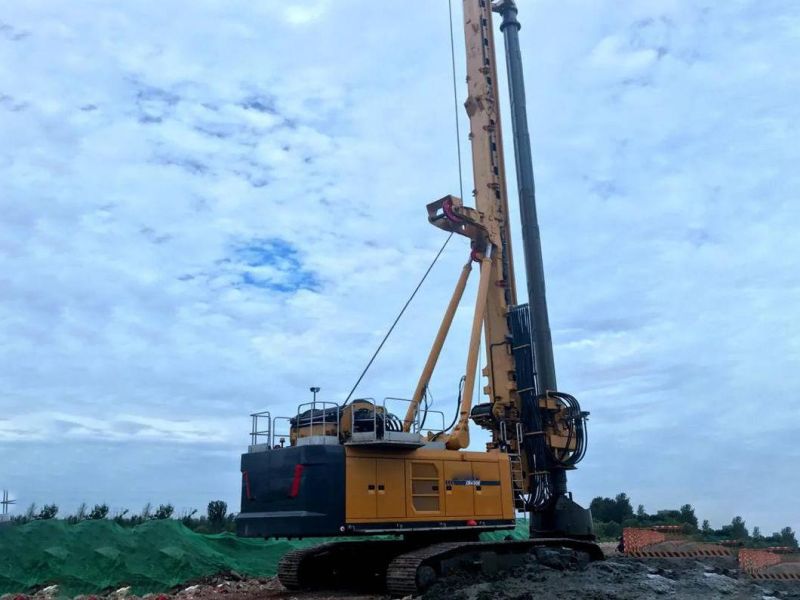

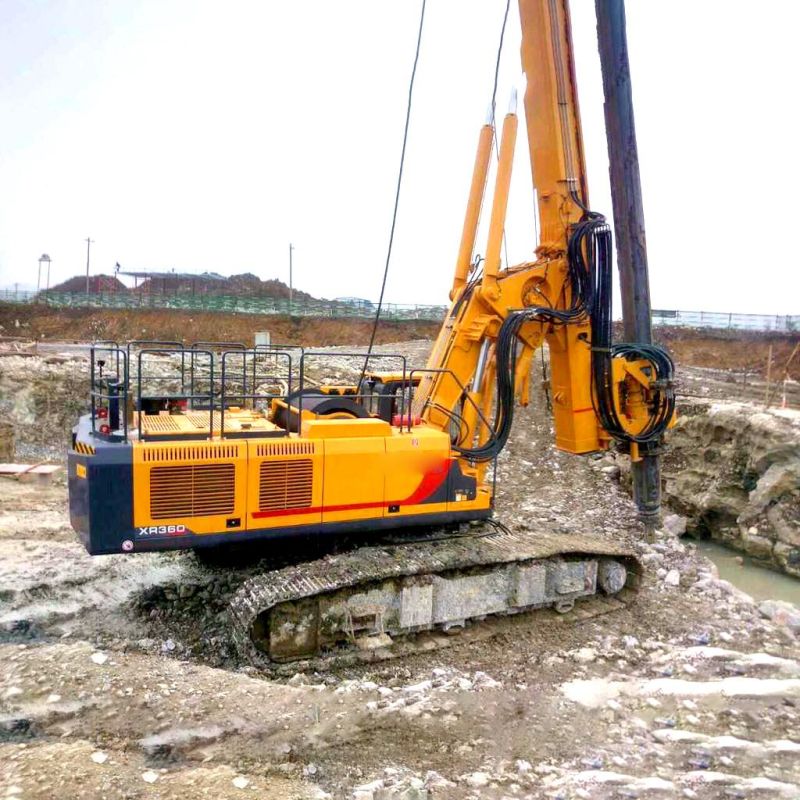

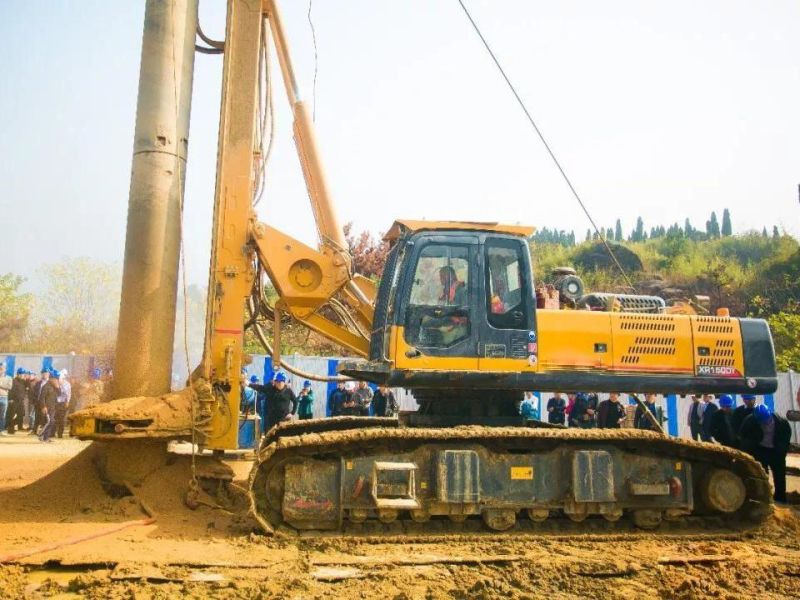

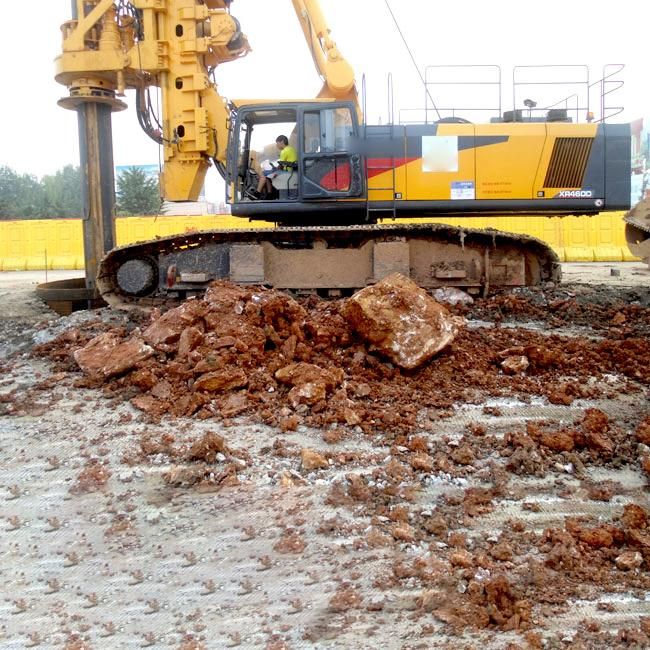

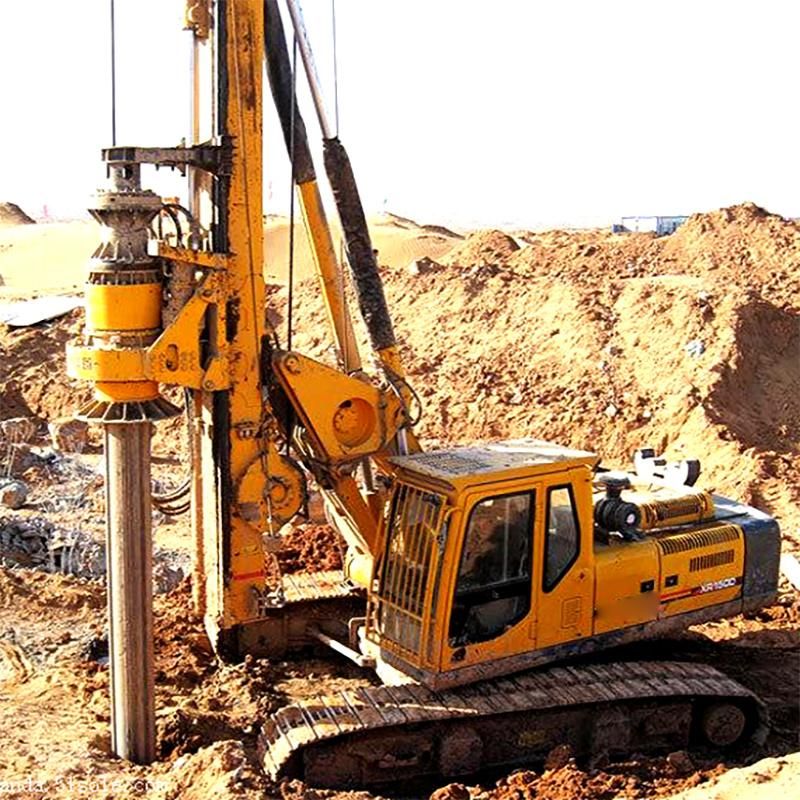

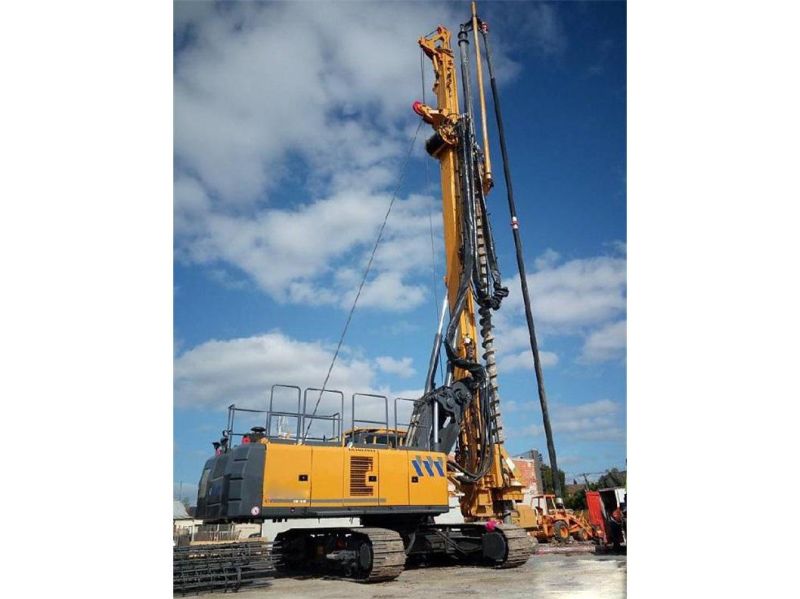

- Product Pictures
