• Model NO.：ML-200
• Drilling Way：Impactor
• Type：Truck Mounted
• Name：Truck Mounted Hydraulic Water Well Drilling Ri
• Usage：Water Well
• Power Type：Diesel
• Engine Brand：Xichai
• Transport Package：Nude Packing
• Specification：6.8T
• Trademark：csmiracleland
• Origin：Shandong, China
• HS Code：8430412900
• Production Capacity：10sets,Month

Basic Info.

Model NO. ML-200 Drilling Way Impactor Type Truck Mounted Name Truck Mounted Hydraulic Water Well Drilling Ri Usage Water Well Power Type Diesel Engine Brand Xichai Transport Package Nude Packing Specification 6.8T Trademark csmiracleland Origin Shandong, China HS Code 8430412900 Production Capacity 10sets/Month

Product Description

ML-200 Truck Mounted Drilling Rig for Water Well It is much more efficient than the traditional rotary drilling rigs, can create very considerable economic benefit for users. It solves the problems to drill very hard rocks, gravel, pebble stratum that the traditional drilling rigs are difficult to drill, Also can work efficiently under all kinds of geological structure.

Besides, it is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.

This type rig is mounted on a truck, which is quite convenient for transportation of all the drilling tools.

Main Features:

1. It is applied to different drilling conditions,like soil , gravel, soft rocks, hard rocks,etc.
2. Fully hydraulic control, mounted on truck, with easy operation and transportation.
3. Four hydraulic standing legs for stable working.
4. This rig is equipped with double motor hydraulic power head, large torque and high efficient drilling capacity.
5. Using air compressor , DTH hammer drilling tools, highly efficient for hard rocks, the mud pump can be equipped for the surface soil layer drilling.
6. Truck chassis can be 6x6 or 6x4 is for customer's option.

Technical Parameters

The technical parameters of ML-200 truck mounted DTH hydraulic water well drilling rig:

Model	ML-200
Drilling depth(m)	260
Drilling rod diameter(mm)	Φ76,Φ89,Φ102
Drilling hole diameter (mm)	Φ100-Φ300
Work air pressure (Mpa)	1-3.5
Air displacement (m3/min)	16-35
Drill rod length (m)	3,6.3
Axis pressure (T)	7
Max. hoist lifting force (T)	15
Rotary torque (N.m)	4000-7000
Rotation speed (r/min)	0-80
Engine power (KW)	70
Load mode	Fukuda heavy truck chassis
Travel speed (km/h)	60
Grade ability	16°
Weight(power unit excepted)(kg)	6800
Dimensions(LxWxH)(mm)	5000x1900x2500

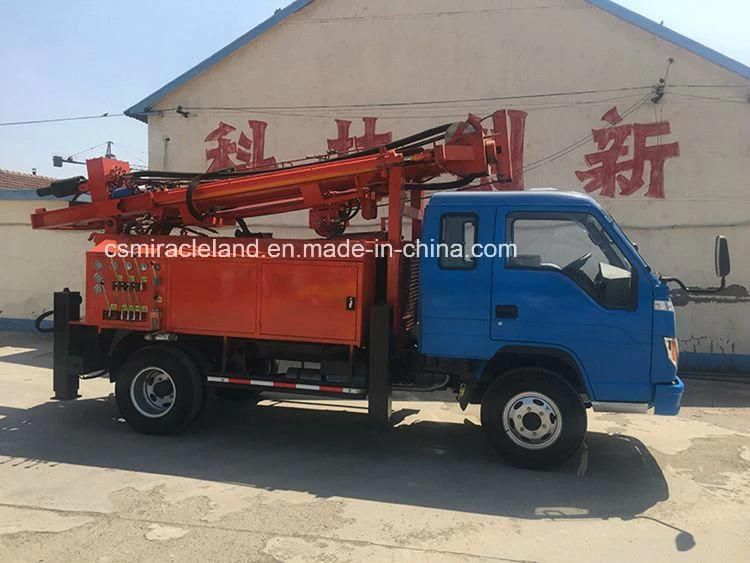

Detailed Images
