Dfhd-32 Horizontal Directional Drilling Machine, Trenchless Drilling Rig
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.- Certification：ISO 9001:2008, BV, SGS
- Condition：New
- Drill Hole Diameter：200-2000mm
- Drill Hole Depth：70-100m
- Bit Type：Reamer
- Drilling Way：Rotary
Base Info
- Model NO.：DFHD-32
- Type：Horizontal Directional Drilling Rig
- Engine Power：145kw
- Feeding Force：320kn
- Pulling Force：320kn
- Torque：1300nm
- Pressure：20-25MPa
- Dimension：L5820*W2250*H2400mm
- Weight：8400kg
- Usage：Water Well, Horizontal Directional Drilling Rig
- Power Type：Diesel
- Transport Package：Standard Export Packing
- Specification：HDD RIG
- Trademark：DEFY
- Origin：China
- Production Capacity：50sets,Month
Description
Drilling tools and auxiliary system Specification of Rod 73×3000 mm(2.87×118 inch) Guide Bit 130 mm or 150mm Reamer 325;400;500;600;720mm Distributor 40T(88200 lb) Tracker Optional Part Model Engine Power Feeding force(KN) Pulling Force(KN) DFHD-15 85KW (2200r/min) 75 150 DFHD-20 110KW (2300r/min) 200 200 DFHD-28 132KW (2300r/min) 280 280 DFHD-32 145KW(2300r/min) 320 320 DFHD-40 175KW(2300r/min) 400 400 DFHD-60 225KW (2200r/min) 620 620 DFHD-120 338KW (1900r/min) 1220 1220 DFHD-245 450KW*2 sets 2450 2450 DFHD-400 552KW*2 sets 4000 4000 DFHD-550 784KW*2 sets 5500 5500 DFHD-750 960KW*2 sets 7500 7500 DEFY Service 1.Professional technical support pre-sale, sale and after-sale . 2.Your problems can get feedback in 8 hours and be solved in 24 hours. 3.Machine can be customized as per your requirement. 4.One year quality warranty. 5.Training: operation manual and DVD operation video, overseas installation is also available. 6.Spare parts are available in our factory at cost price for former customers. Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. DEFY Brand drilling machine have been widely exported to Chile, Russia, Australia, Malaysia, Kenya, Tanzania, Zambia, South America, Peru, Zimbabwe, etc.Our professional engineer and sales teams, offering technical support and useful advice whenever you need. Please feel free to contact Andrew for more details and Best Offer!
Different Models of Horizontal Directional Drilling Rigs for your choice

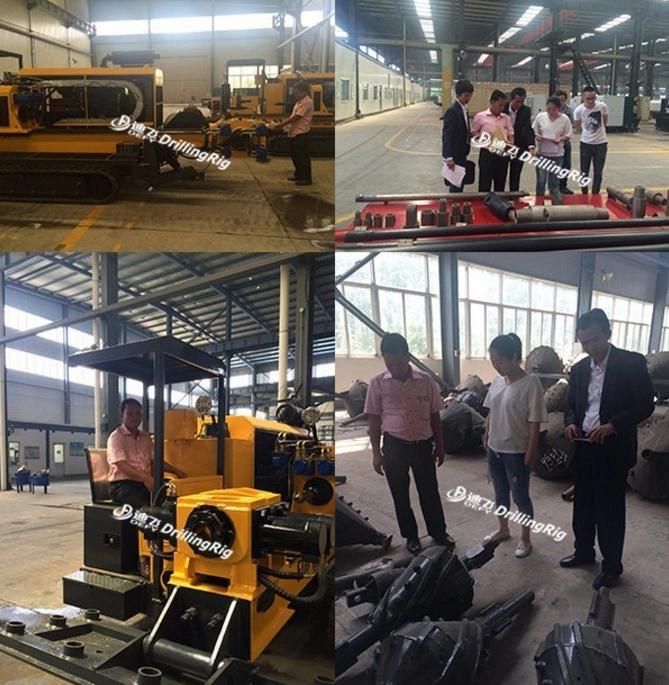

Customers visit

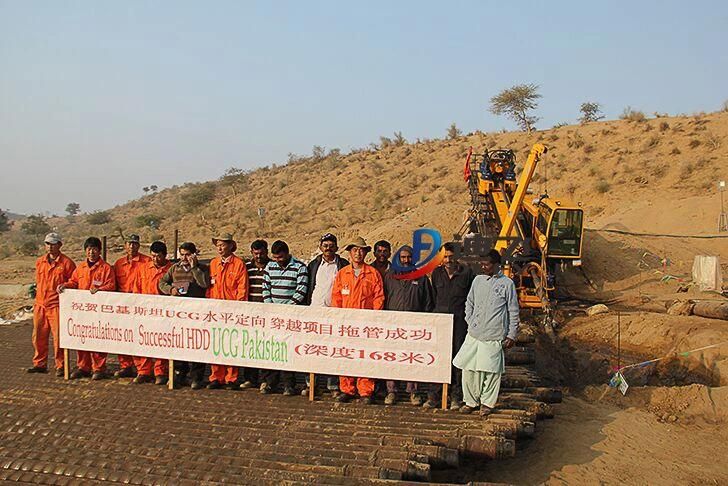

Working Site of DFHD-120 HDD rig in Pakistan
